Appendix A
A-10

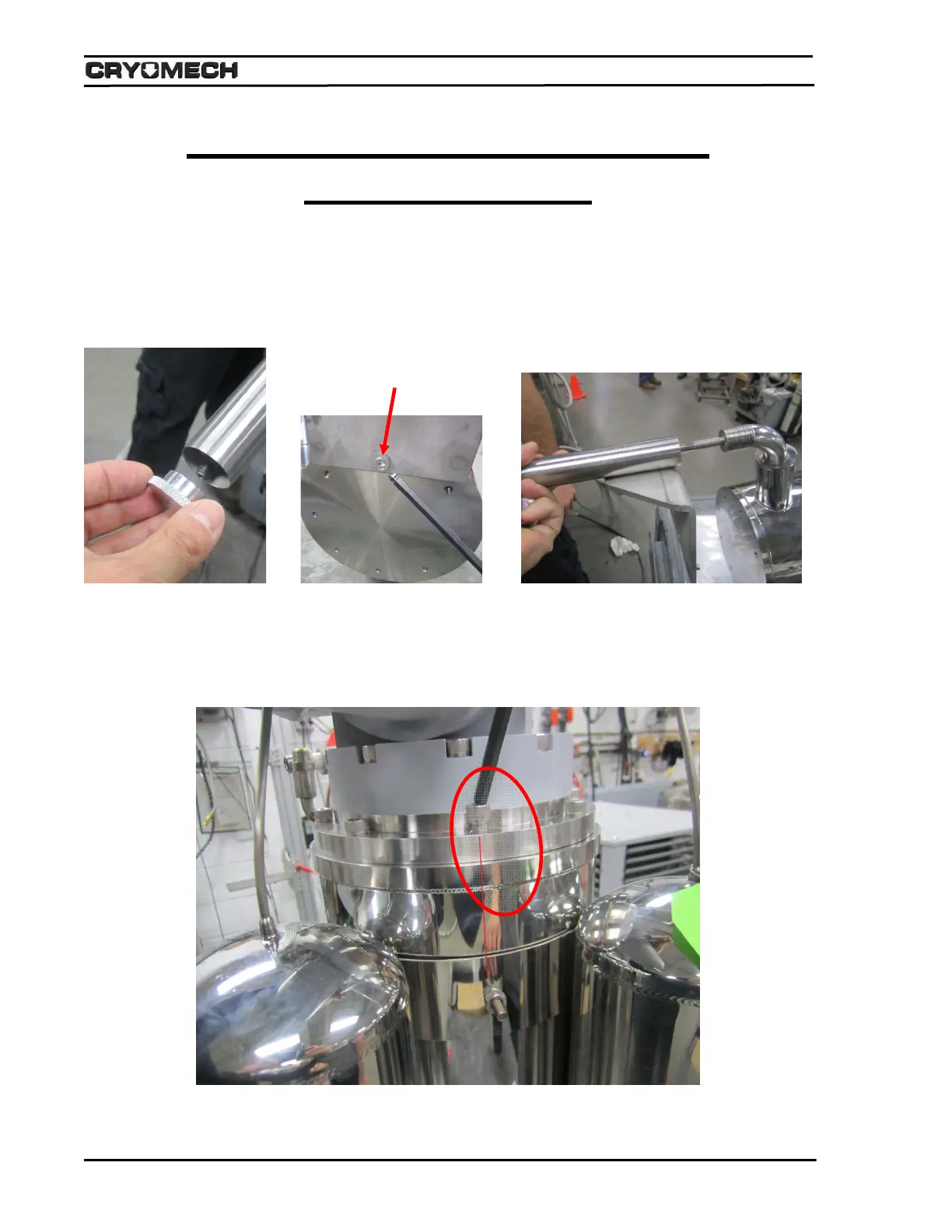

Mounting the Reliquefier to
Optional Stand
1) Carefully place the Reliquefier on a stable flat surface relatively close to the Reliquefier stand.
2) Unscrew the protective cap on the drain leg. While supporting the shipping tube, remove the screw
that holds the shipping tube to the mounting plate of the Reliquefier assembly. Carefully remove the
shipping tube taking care not to damage the drain leg.
3) Ensure that there is enough room to stand the Reliquefier without compromising the drain leg. Stand
the Reliquefier on the flat surface with the drain leg hanging over the edge of the flat surface.
4) Locate the base plate mounting screw that aligns with the reservoir mounting screws. Remove the
screw, but keep readily available.
Screw
location
To Next Page
