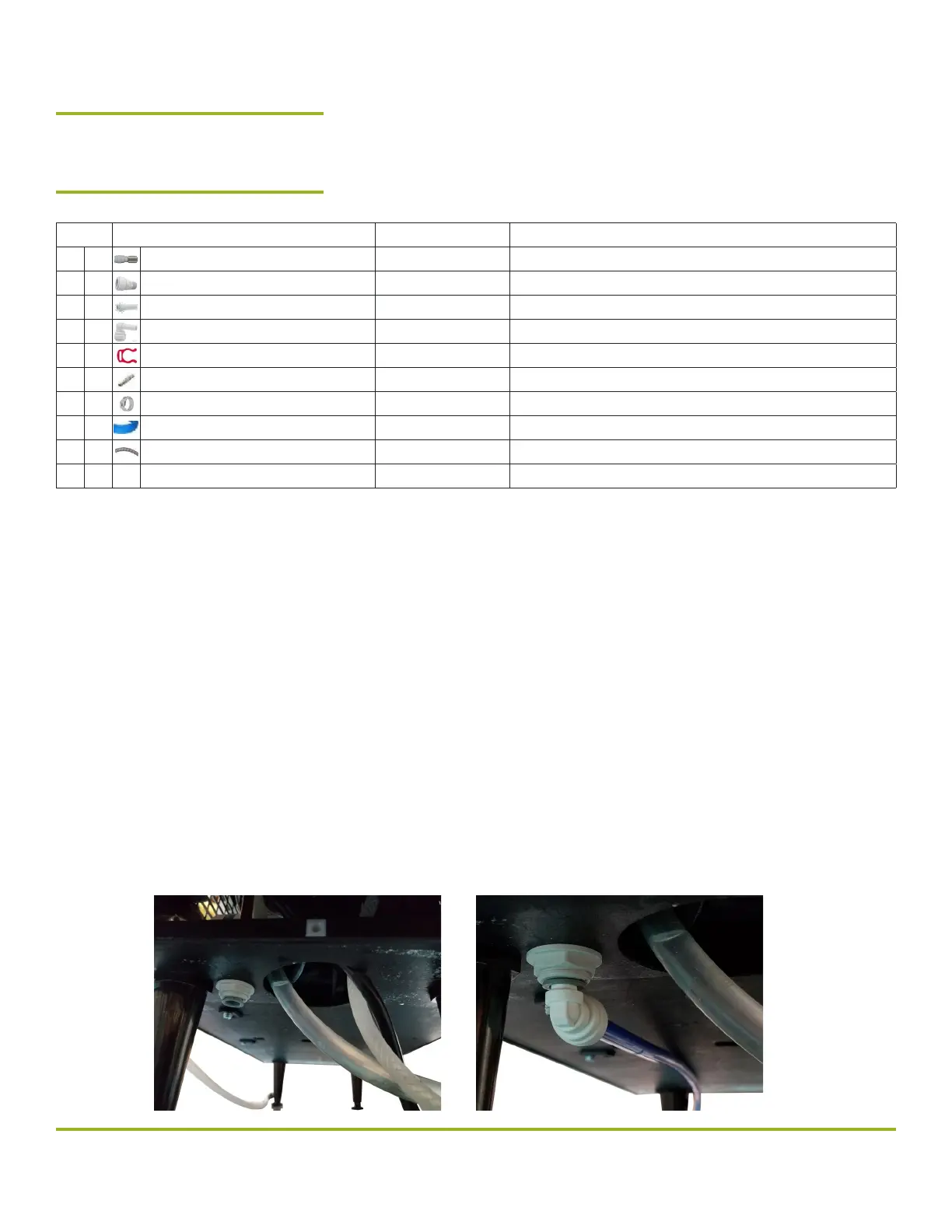

QTY Description Part Number Usage
1 3/8 Tube x 9/26-24 Female Adapter PSEI6012U9 Quick connect fitting adaptor to an anglestop
2 1/2” Tube to 3/4” NPT PSEI02026 Adaptor reducers for filter system inlet and outlet
2 5/8” (1/2”) Stem to 3/8” tube PP062012W Adaptor reducers for filter system inlet and outlet
8 JG 90 elbow 3/8” smooth to 3/8” PP221212W For trunkline outlet of unit and water inlet
12 JG 3/8 Locking Clips PIC1812R Collet locking clip for JG fittings
1 Splice Barb 1/4” to 1/4” 9001 Use this fitting for adding additional CO2 line
4 10.5 Oetiker Clamps 0105 Use with 9001 for 1/4” ID braded CO2 hose and barb
1 12’ Section of 3/8” OD tubing PE-12-EI Water inlet tubing, filter system to chiller
1 8’ sections of 1/4” ID braided hose 172-04804-00 Additional CO2 hose, if needed. Do not use in JG fittings
6 8” Zip Ties S-14041
Crysalli Beverage Systems a division of WPD
1739 Sabre Street, Hayward, CA 94545
www.crysalli.com 510.732.0100
CR-KIT-CT Install Kit
Ordered Separately
Install Kit for CR-1 & CR-2
Countertop Chiller Systems
This Kit is designed to supply you with
the fittings & parts you may need to
complete the install of an CR-24FC
Filter system with 3/4” inlet and outlet
fittings to a Crysalli CR-1 or CR-2 chiller
unit.
Reference the Crysalli Countertop
system Quick Install Guide for part
usage and install details.
Connections: The water inlet is
the 3/8” quick connect fitting on
the botton of the chiller. Use the
PP221212W.
The clear hose is the overflow drain
hose.
The 1/4” white braided hose with
fitting is the CO2 inlet. The CR-PC160
CO2 Regulator connects to this.
Water bath must be manaully filled
with water.
Always reference local plumbing codes
to determine if a backflow preventer is
required and to check the type/style of
backflow preventer that is accepted as
well as the plumbing location it needs
to be placed in.
Crysalli does not include backflow
preventers in the install kits because of
variability in requirements.
Backflow devices should be sourced
from local plumbing stores.
For questions or assistance with install
contact Crysalli 510-732-0100 or your
local Distributor.
