Crystal Image Technologies RM-111-19WH User Manual

UM-CV-751-19W-Q113V1 www.rackmountsales.com
Crystal Imagee’ SDI input is an ideal solution for the broadcast-
grade video and high resolution CCTV market.
Designed for use with CIT Full HD 1080p and ultra high
resolution 1920 x 1200 LCD displays, Crystal Image provides a
SDI input module without using additional space or power and it
comes standard with a 2-year warranty.

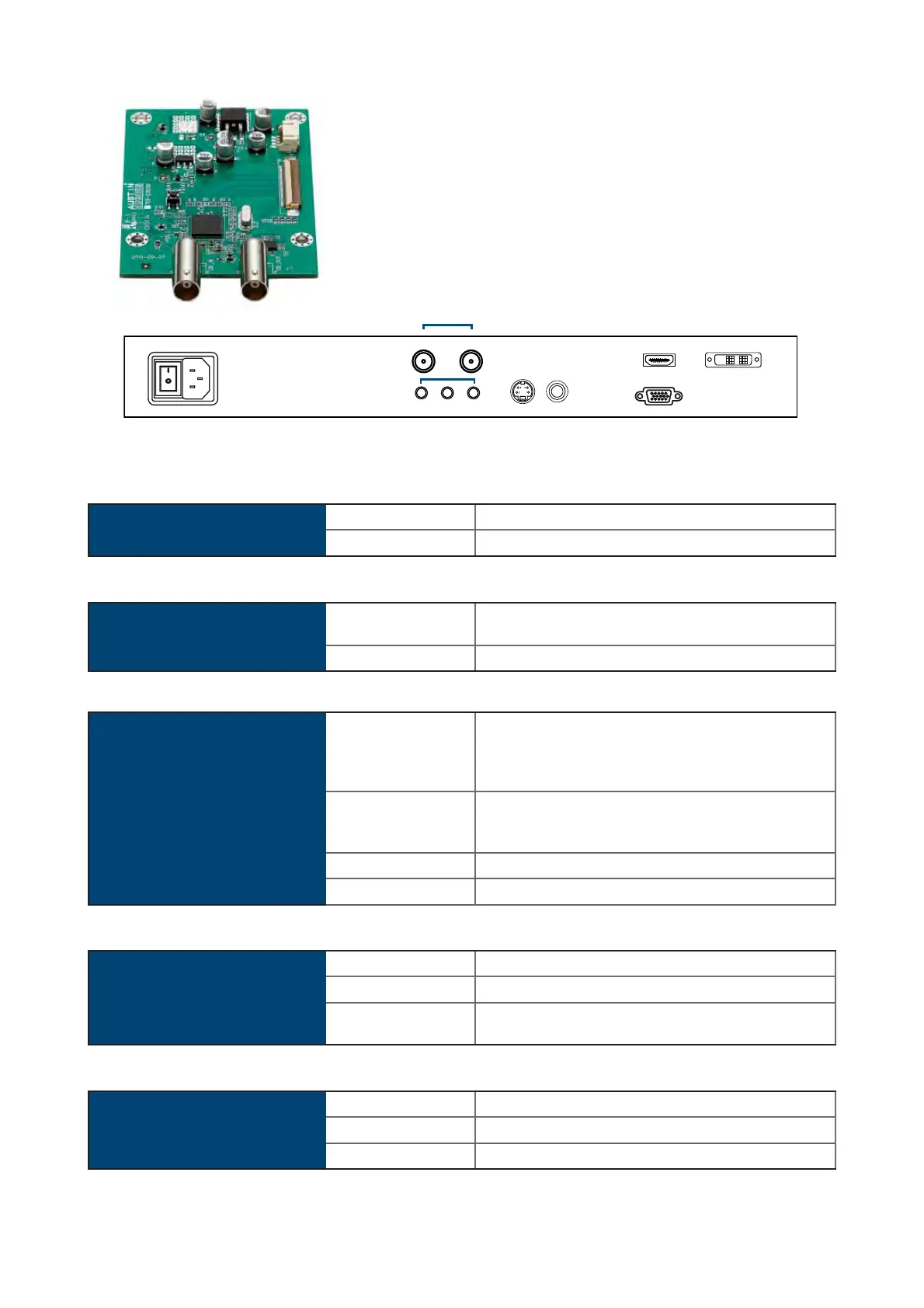

< 3.1 > Options : 3G / HD / SD-SDI input
P.13
INPUT 3G-SDI IN BNC x 1 / 0.8Vp-p ( 75 ohm )
3G-SDI OUT BNC x 1 / Active through, equalized & relocked
Standard Compliance Video SMPTE 425M / 274M / 296M / 125M
ITU-R BT.656
Audio SMPTE 299M / 272M-C
Compatible Audio Format 3G-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
HD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
SD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized /
Asynchronized Video
Compatible Video Format 3G-SDI 1080p
1080p
1080i
720p
@60 / 50Hz, 4:2:2
@30 / 25 / 24Hz, 4:4:4
@60 / 50Hz, 4:4:4
@60 / 50Hz, 4:4:4
HD-SDI 1080p
1080i
720p
@30 / 25 / 24Hz, 4:2:2
@60 / 50Hz, 4:2:2
@60 / 50Hz, 4:2:2
SD-SDI 480i @60Hz, 4:2:2
ITU-R BT.656 576i @50Hz, 4:2:2
Max. Transmission Distance
75 ohm coaxial cable
3G-SDI 150m at 2.97Gb/s
HD-SDI 250m at 1.485Gb/s
SD-SDI 480m at 270Mb/s
< Part 3 >
SDI
in - out
Power
KVM
DVI-DHDMI
Audio
in - in - out
S-Video BNC
PC Video
*** For SDI option, casing depth will be changed from 480mm ( 18.9” ) to 530mm ( 20.9” )
