CS-Lab s.c. | CSMIO/IP-A 6-axis CNC controller. Manual tunning

Below and in the further parts of the document, we will present you a series of slides showing the process

of finding the correct values (tunning) of a selected parameter. In the slides, you can find values of all the

key parameters. You should analyze them carefully to draw your own conclusions that will help you under-

stand how a discussed parameter affects a servo drive's operation.

The processes presented in the slides may differ from waveforms obtained by users on their CNC machines.

Many factors cause it, but the most important are: quality of servo PID regulator tuning, power and sensi-

tivity of a servo drive, axis weight, gear ratio, velocity, and acceleration value.

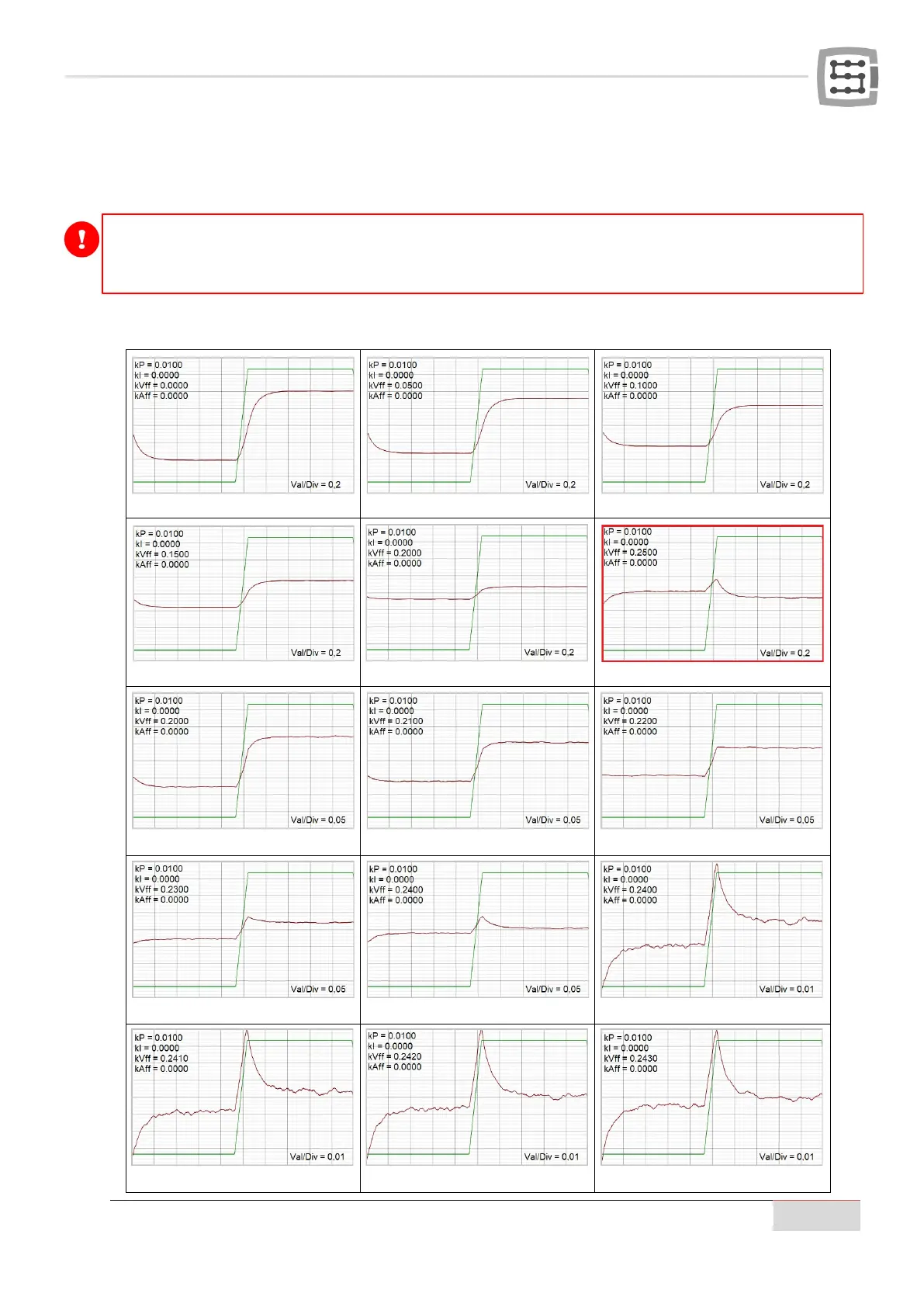

Below you can see slides that show searching for a proper value of "KVff".

Start

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6

Step 7

Step 8

Step 9

Step 10

Step 11

Step 12

Step 13

Step 14
