Additional information:

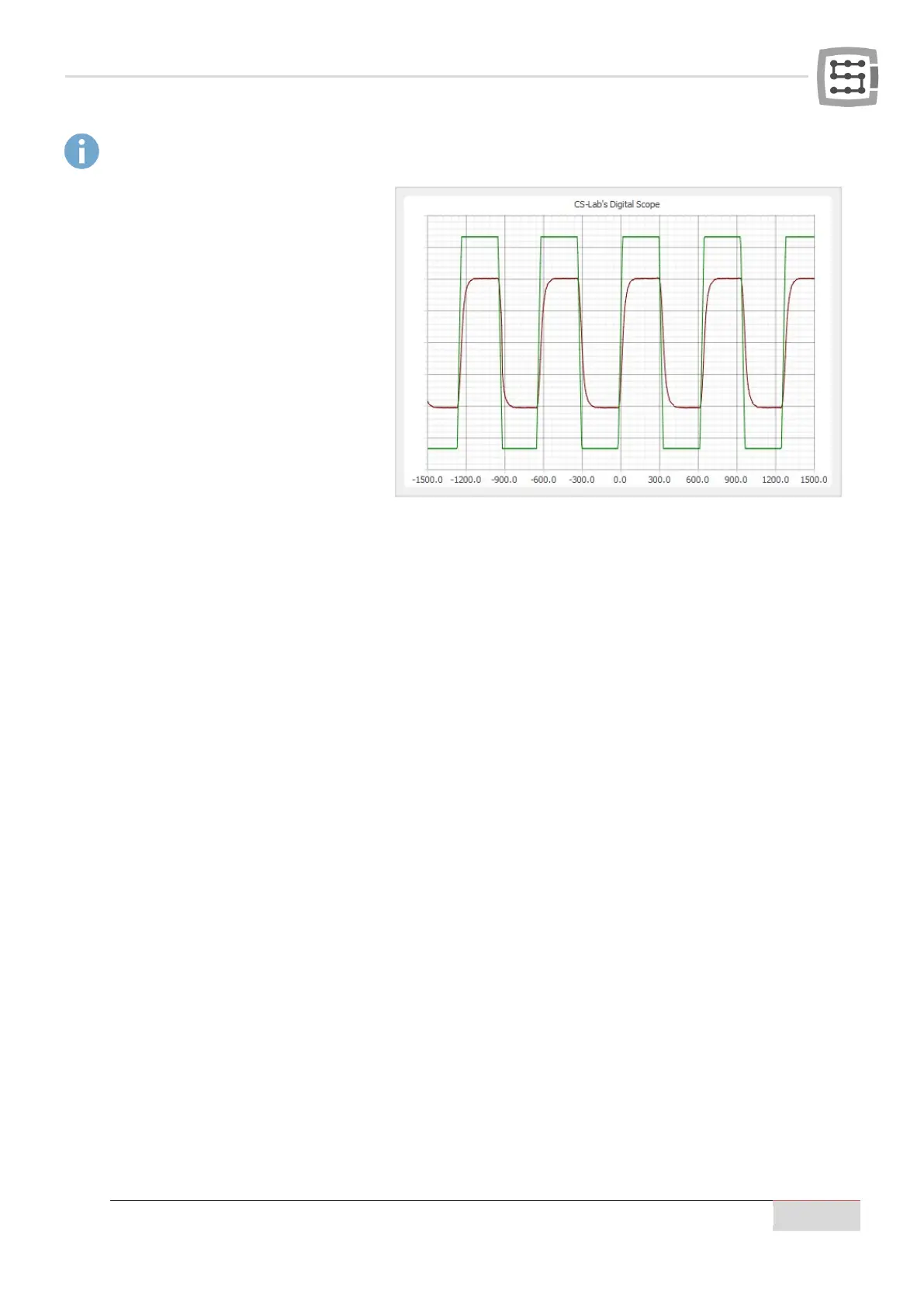

If we increase the "Time t/Div" value
(for demonstration purposes), you will
notice that the "Mkit Ref Velocity" value
creates a repeatable trapezoidal wave-
form. This waveform is the ideal refer-
ence for the "Trigger" function.
If you do not know why the "Mkit Ref Velocity" value has the trapezoidal shape, let us remind you that Mach4
uses a trapezoidal motion velocity profile.
