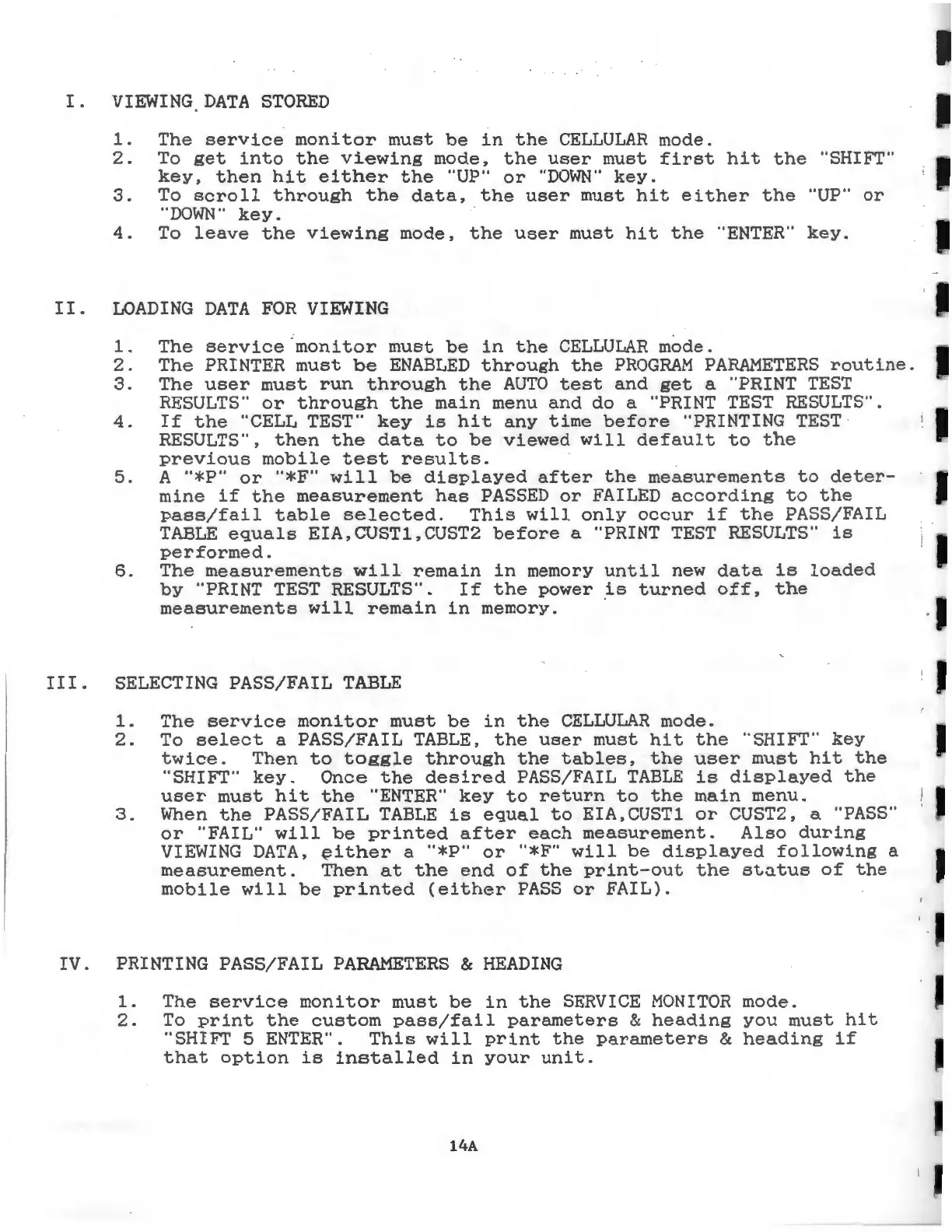

I. VIEWING DATA STORED
1. The service monitor must be in the CELLULAR mode.
2. To get into the viewing mode, the user must first hit the "SHIFT"
key, then hit either the "UP" or "DOWN" key.
3. To scroll through the data, the user must hit either the "UP" or
"DOWN" key.
4. To leave the viewing mode, the user must hit the "ENTER" key.
II. LOADING DATA FOR VIEWING
1. The service . monitor must be in the CELLULAR mode.
2. The PRINTER must be ENABLED through the PROGRAM PARAMETERS routine.
3. The user must run through the AUTO test and get a "PRINT TEST
RESULTS"
or through the main menu and do a "PRINT TEST RESULTS".
4. If the "CELL TEST" key is hit any time before "PRINTING TEST
RESULTS",
then the data to be viewed will default to the
previous mobile test results.
5. A "*P" or "*F" will be displayed after the measurements to deter-
mine if the measurement has PASSED or FAILED according to the
pass/fail table selected. This will only occur if the PASS/FAIL
TABLE equals EIA,CUST1,CUST2 before a "PRINT TEST RESULTS" is
performed.
6. The measurements will remain in memory until new data is loaded
by "PRINT TEST RESULTS". If the power is turned off, the
measurements will remain in memory.
III. SELECTING PASS/FAIL TABLE
1. The service monitor must be in the CELLULAR mode.
2. To select a PASS/FAIL TABLE, the user must hit the "SHIFT" key
twice. Then to toggle through the tables, the user must hit the
"SHIFT" key. Once the desired PASS/FAIL TABLE is displayed the
user must hit the "ENTER" key to return to the main menu.
3. When the PASS/FAIL TABLE is equal to EIA,CUST1 or CUST2, a "PASS"
or "FAIL" will be printed after each measurement. Also during
VIEWING DATA, ~ither a "*P" or "*F" will be displayed following a
measurement. Then at the end of the print-out the status of the
mobile will be printed (either PASS or FAIL).
IV. PRINTING PASS/FAIL PARAMETERS & HEADING
1. The service monitor must be in the SERVICE MONITOR mode.
2. To print the custom pass/fail parameters & heading you must hit
"SHIFT 5 ENTER". This will print the parameters & heading if
that option is installed in your unit.
14A
