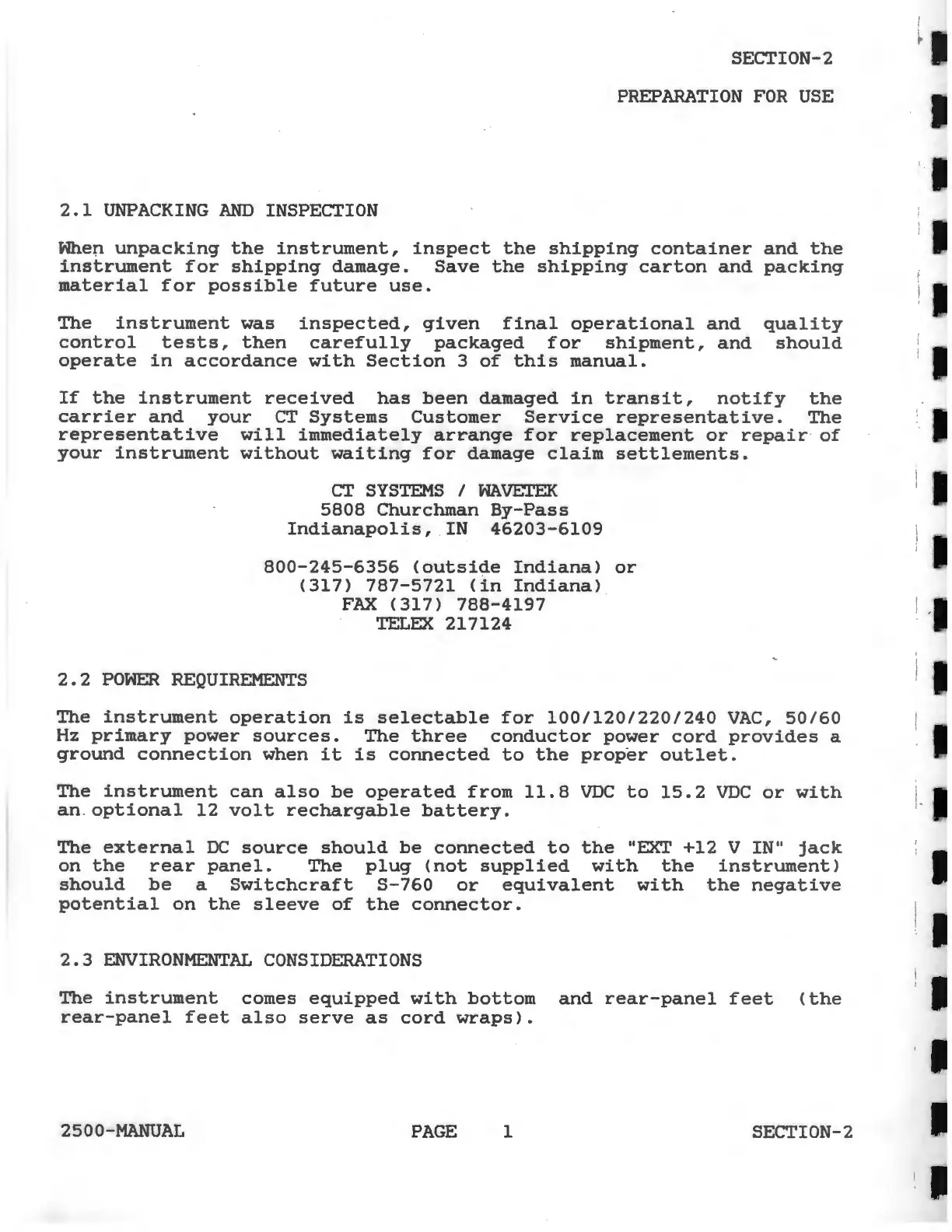

SECTION-2

PREPARATION

FOR

USE

2.1

UNPACKING

AND

INSPECTION

Whe~

unpacking

the

instrument,

inspect

the

shipping

container

and

the

instrument

for

shipping

damage.

Save

the

shipping

carton

and

packing

material

for

possible

future

use.

The

instrument

was

inspected,

given

final

operational

and

control

tests,

then

carefully

packaged

for

shipment,

and

operate

in

accordance

with

Section

3

of

this

manual.

quality

should

If

the

instrument

received

has

been

damaged

in

transit,

notify

the

carrier

and

your

CT

Systems

Customer

Service

representative.

The

representative

will

immediately

arrange

for

replacement

or

repair

of

your

instrument

without

waiting

for

damage

claim

settlements.

CT

SYSTEMS

I

WAVETEK

5808

Churchman

By-Pass

Indianapolis,

IN

46203-6109

800-245-6356

(outside

Indiana)

or

(317)

787-5721

(in

Indiana)

FAX

(317)

788-4197

TELEX

217124

2.2

POWER

REQUIREMENTS

The

instrument

operation

is

selectable

for

100/120/220/240

VAC,

50/60

Hz

primary

power

sources.

The

three

conductor

power

cord

provides

a

ground

connection

when

it

is

connected

to

the

proper

outlet.

The

instrument

can

also

be

operated

from

11.8

VDC

to

15.2

VDC

or

with

an

.

optional

12

volt

rechargable

battery.

The

external

DC

source

should

be

connected

to

the

"EXT

+12

V

IN"

jack

on

the

rear

panel.

The

plug

(not

supplied

with

the

instrument>

should

be

a

Switchcraft

S-760

or

equivalent

with

the

negative

potential

on

the

sleeve

of

the

connector.

2.3

ENVIRONMENTAL

CONSIDERATIONS

The

instrument

comes

equipped

with

bottom

and

rear-panel

feet

(the

rear-panel

feet

also

serve

as

cord

wraps).

2500-MANUAL

PAGE

1 SECTION-2

'
