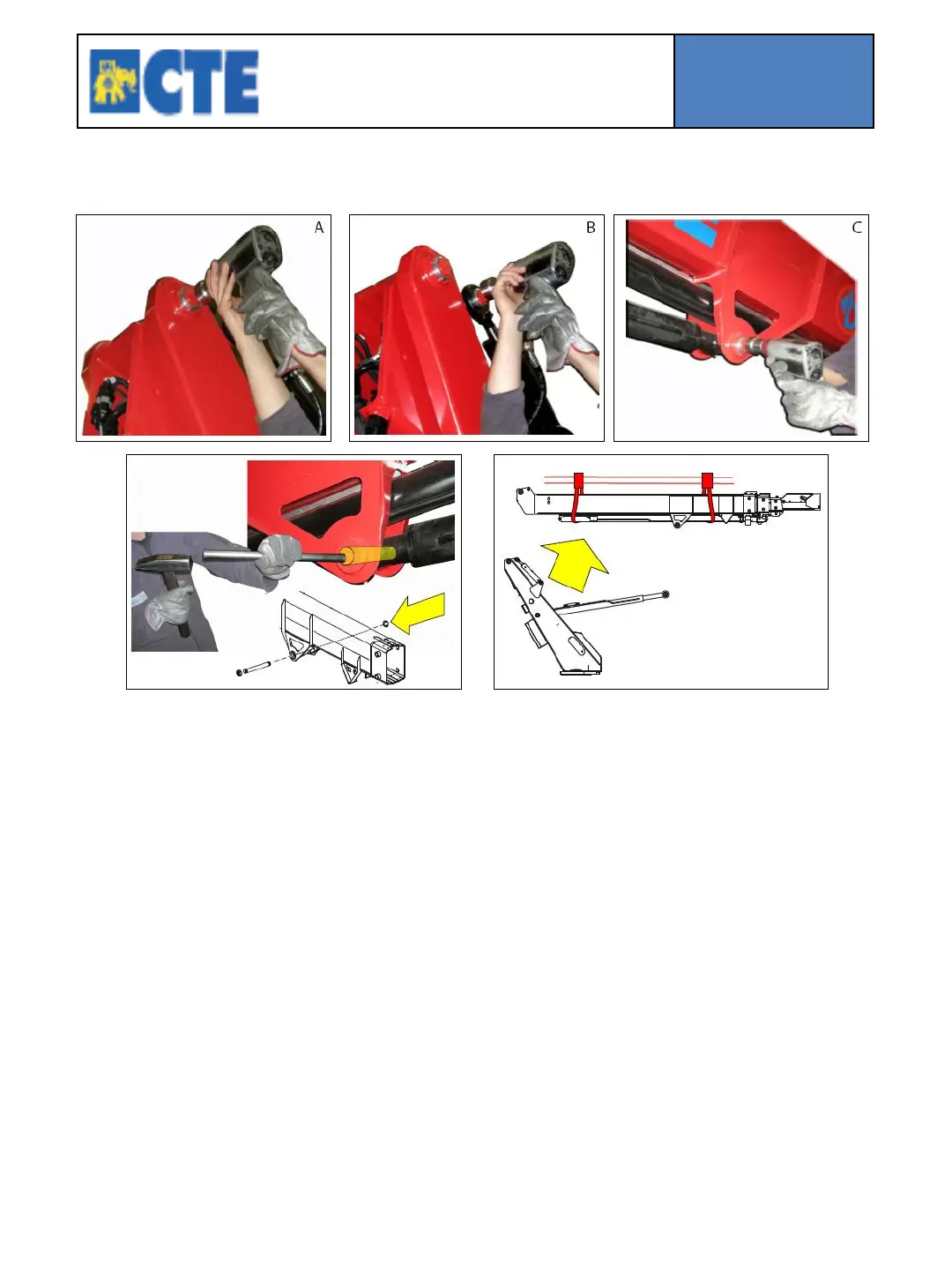

SLING THE ARM AND DISASSEMBLE THE TURRET ARM
CONNECTION PINS (A), BALANCING CYLINDER FASTENING (B),
LIFTING CYLINDER FASTENING (C).
THE PINS WILL BE DISASSEMBLED USING APPROPRIATED TOOLS
REMOVING AT FIRST THE FASTENING RINGS AND SEIGER AND
THEN USING AN
EXTRACTOR PIN. THIS OPERATION WILL BE DONE FROM RIGHT
TO LEFT.
AT THIS POINT THE ARM IS DISASSEMBLED.
pag 22
REPLACEMENT CHAINS
