pag 34
TEST OF AERAS OF WORK
TEST
1 Place 200kg at the center of the basket
2 put the arm at 0°
3 Extend the boom until the limiter (intermittent buzzer)
4 measure the distance between the center point of turret and the extremity
point of the basket (rotated)

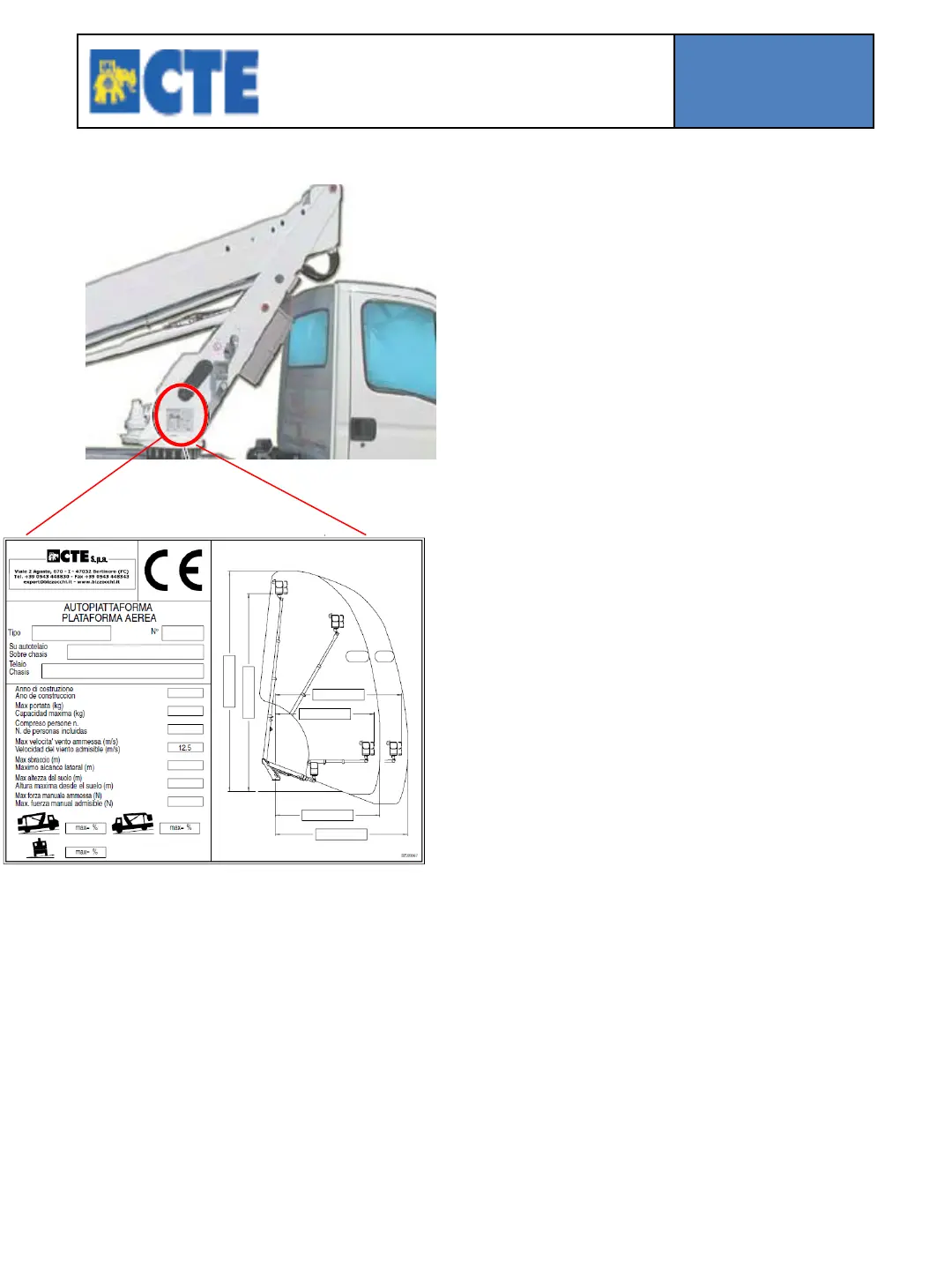

The metal plaque on the tower
shows the identification of the
platform and the diagram of
work.
The measure must correspond to that indicated on the
plate with a maximum tolerance allowable +15-20 cm
