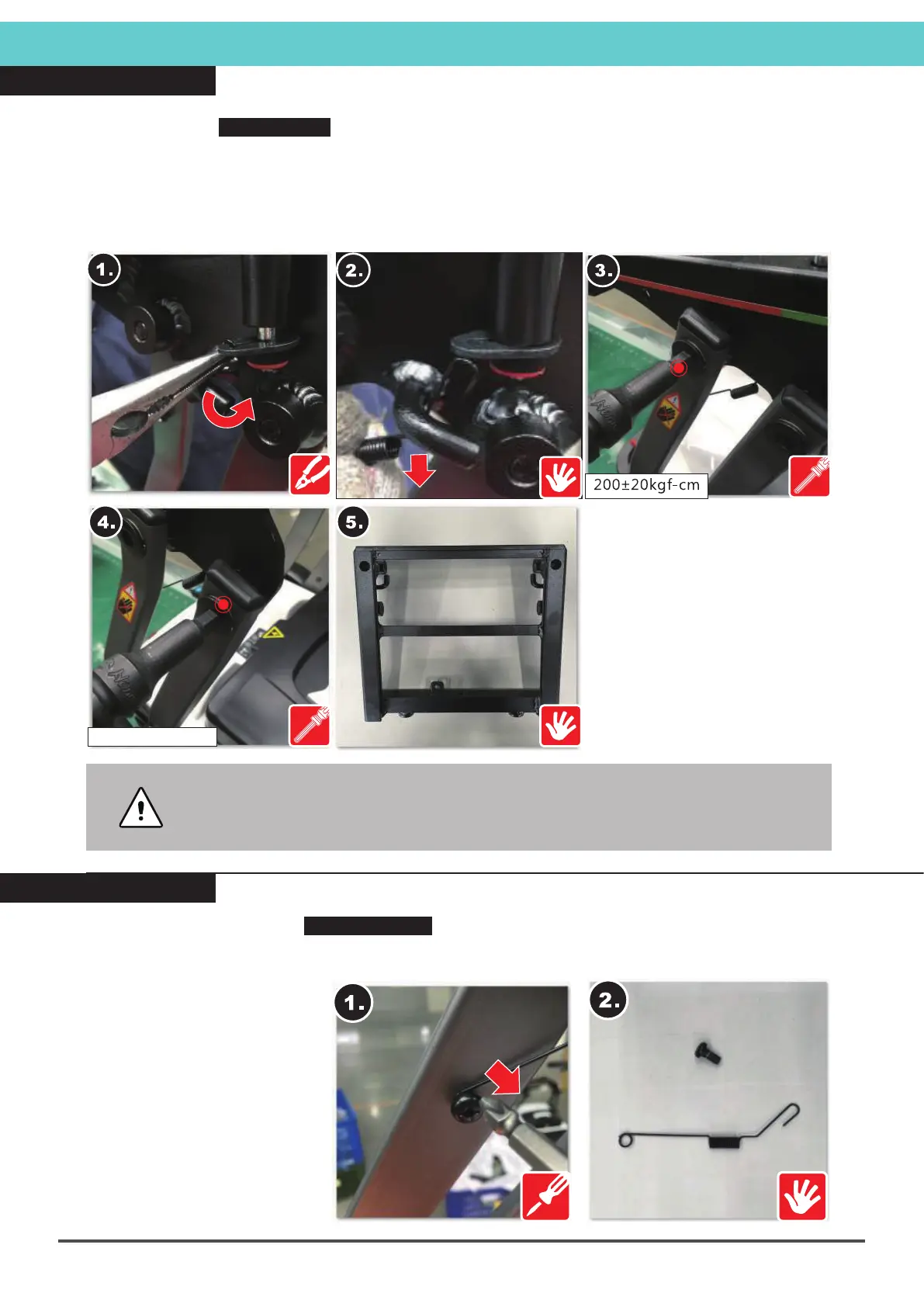

Seat Base Repair
Seat Base Spring Repair
•Step 1.When opening the bar spring, be careful not to use too much force
which might damage the spring.
•Step 2.For re-installation, please hook the spring onto the locking plate of
the seat base from below. If it is to be removed, please refer to.
Please refer to SERVICE-7 Seat Repair to remove the seat first, then :
1.Uses pliers to open the bar spring notch.
2.Separate the bar spring from the seat base.
3&4.Remove the hex screws (25mm #10, 4pcs) on both sides of the seat base and bar.
5.Take out the seat base.
※When reassembling, please follow the exact reverse sequence of these steps.
first and follow Step 2 of SERVICE-8-1 Seat Base Repair, then :
1.Remove the seat bar screws (6mm, 2pcs).
2.Take out the seat base spring.
※When reassembling,
follow the exact reverse
sequence of these steps.
