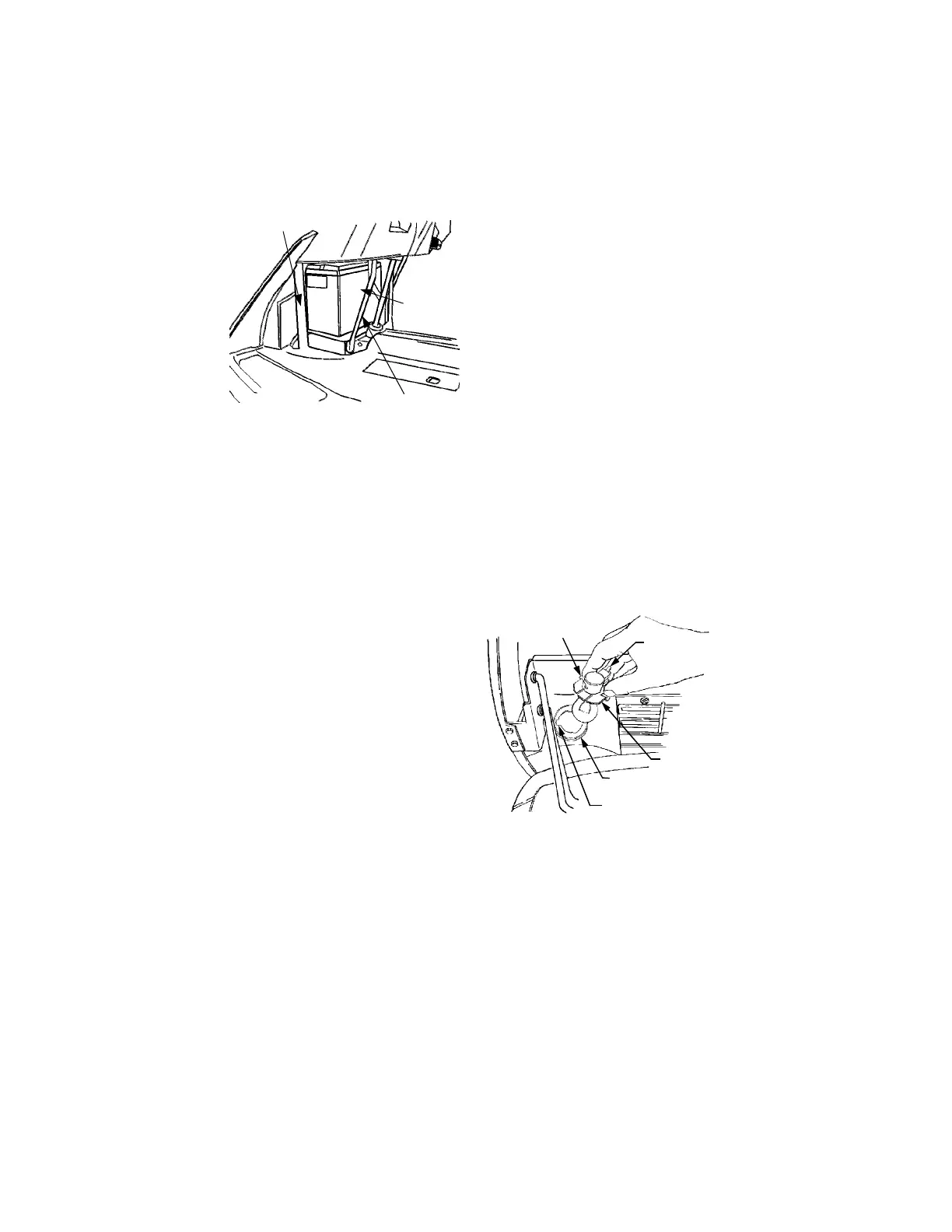

Figure 21
Install the battery by repeating the
above steps in the reverse order.
Always connect the positive lead to
the battery before connecting the
negative lead.
Battery Maintenance
The battery is filled with battery acid
and then sealed at the factory.
However, even a “maintenance free”
battery requires some maintenance to
ensure its proper life cycle.
• Spray the terminals and exposed
wire with a battery terminal sealer,
or coat the terminals with a thin coat
of grease or petroleum jelly, to
protect against corrosion.
• The battery should be kept clean.
Any deposits of acid should be
neutralized with baking soda and
water. Be careful not to get this
solution in the cells.
• Avoid tipping the battery. Even a
“sealed” battery will leak electrolyte
when tipped.
Battery Storage
• When storing the tractor for extended
periods, disconnect the battery
cables. Removing the battery from
the unit is recommended.
• All batteries discharge during
storage. Keep the exterior of the
battery clean, especially the top. A
dirty battery will discharge itself
more rapidly.
• The battery must be stored with a
full charge. A discharged battery will
freeze at a higher temperature.
Specific GravityFreezing Point
1.265 –71°F
1.250 –62°F
1.200 –16°F
1.150 5°F
1.100 16°F
• Recharge the battery before
returning to service; or every two
months, whichever comes first.
Headlight Bulb Replacement
Replace headlight bulbs as follows:
(See Figure 22)
1. After noting which wire connects
to each terminal, unplug the wire
harness leads from the headlight
socket terminals.
2. Rotate the socket assembly as
follows to remove from the
reflector housing:
Figure 22
• Left headlight — appoximately 1/4
turn counterclockwise.
• Right headlight — approximately
1/4 turn clockwise.
3. Push the bulb inward and turn
counterclockwise to remove from
the socket.
4. Align the post of the bulb base
with the notch in the socket, then
push the bulb inward and turn
clockwise to lock
Dash Support
Frame Pedestal
Battery
Terminals
Socket
Reflector Housing
Reflector Notch
Socket Tab
