TIRES/WHEELS/SPACING/BALLAST
70

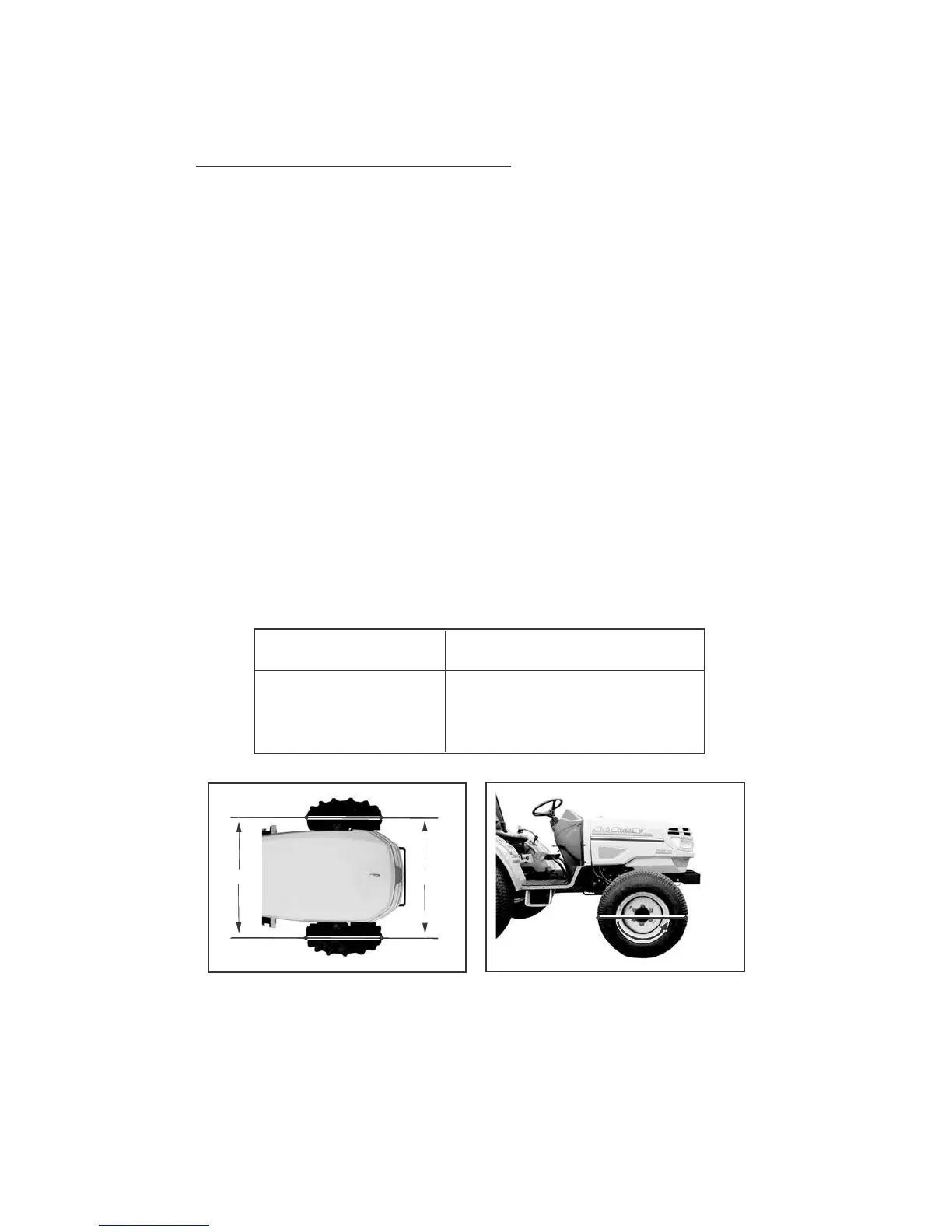

Toe-in Adjustment
TO CHECK THE TOE-IN, USE THE FOLLOWING PROCEDURE:
1. Put the tractor on level ground and the wheels in the straight-ahead
position.
2. Place chalk marks at points A on the centerlines of both front tires at
the same height as the centerline of the hubcap.
3. Measure the distance (L
1) between the chalk marks at points A.
4. Move the tractor forward a distance equal to one-half revolution of the
front wheels.
5. The chalk marks will now be at points B. Measure the distance (L
2)
between the chalk marks at points B.
6. The figure of L
1 minus L2 is the toe-in. Make sure the toe-in is adjusted
properly. If not, adjust the toe-in.
FRONT AXLE TYPE
MFD
TURN THE WHEELS
ONE-HALF
REVOLUTION
TOE-IN (L
1-L2)
0 TO 0.20 INCH (0 TO 10 mm)
L
2
L
1
AB
AB
AB
