10 Section 3 — ASSembly & Set-Up
2. Replace with grass bag adapter, while making sure the
front lip of adapter goes under the edge of the deck. Refer
to Fig. 3-4. Secure with wing nuts previously removed.
3. Slip the five remaining plastic channels of grass bag over
the metal grass bag frame as shown in Figure 3-5.
3. The rope guide, which is connected to the support rod, is
located on the right side of the lower handle. See Fig. 3-3.
a. Hold blade control against upper handle.
b. Pull starter rope out of the engine. Release blade
control.
c. Slip starter rope into rope guide.
4. Attach cables to the lower handle with the cable ties
already on the lower handle. Insert pegs on cable ties into
the holes on the lower handle. Pull cable ties tight and cut
off the extra.
Grass Catcher
The mower was shipped with the mulching baffle installed on
the unit. For bagging purposes, you will have to attach the grass
bag and its adapter in place of the mulching baffle.
1. Remove three wing nuts holding the mulching baffle in
place and remove from unit.

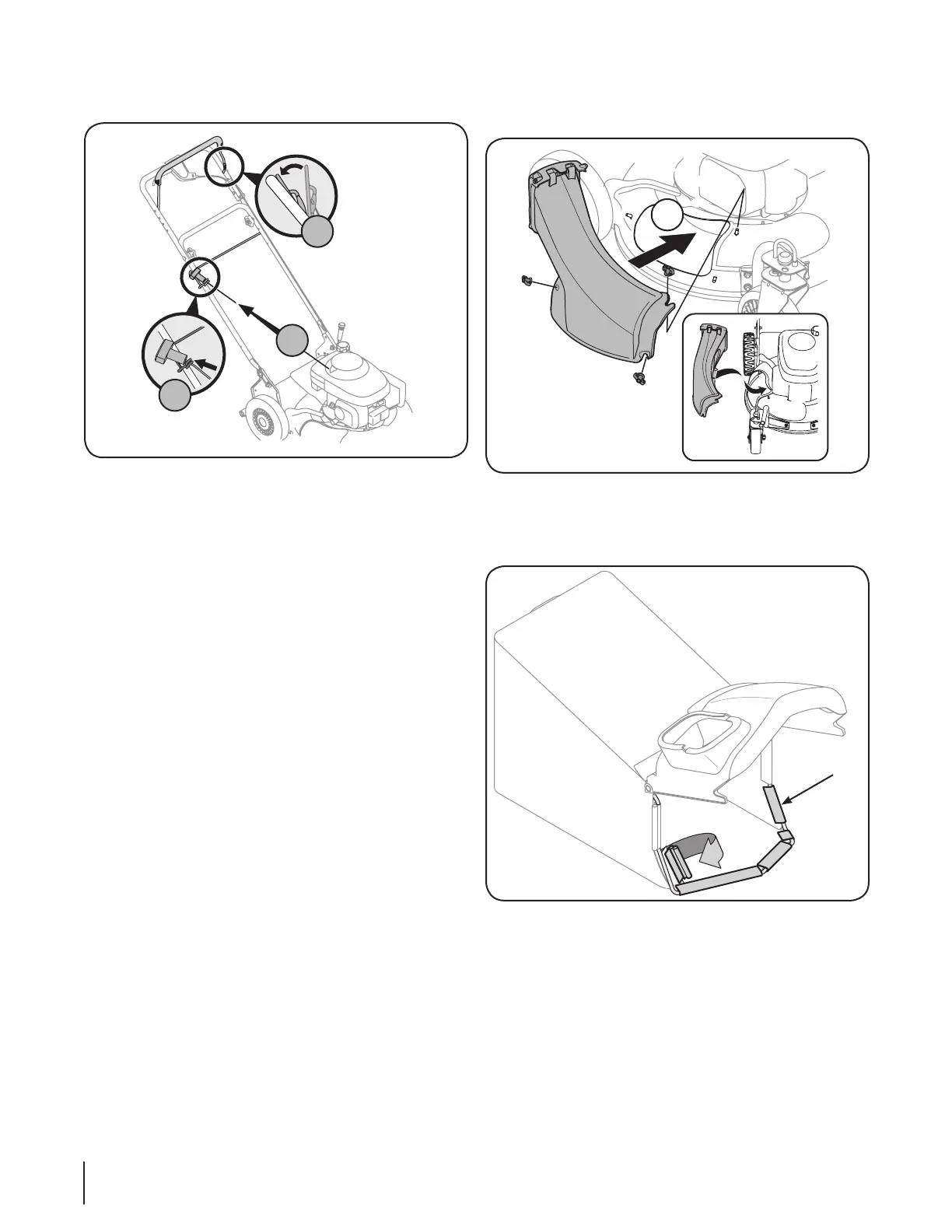

Figure 3-3
Figure 3-4
Figure 3-5
