16 Section 6— Maintenance & adjuStMentS
Adjustments
Shift Lever Cable
Periodic adjustment of the six speed shift cable may be necessary
due to normal wear on the cable. Adjustment is needed if all six
speeds do not work. The adjustable cable bracket is located on
the left side of the mower beside the engine. See Figure 6-3.

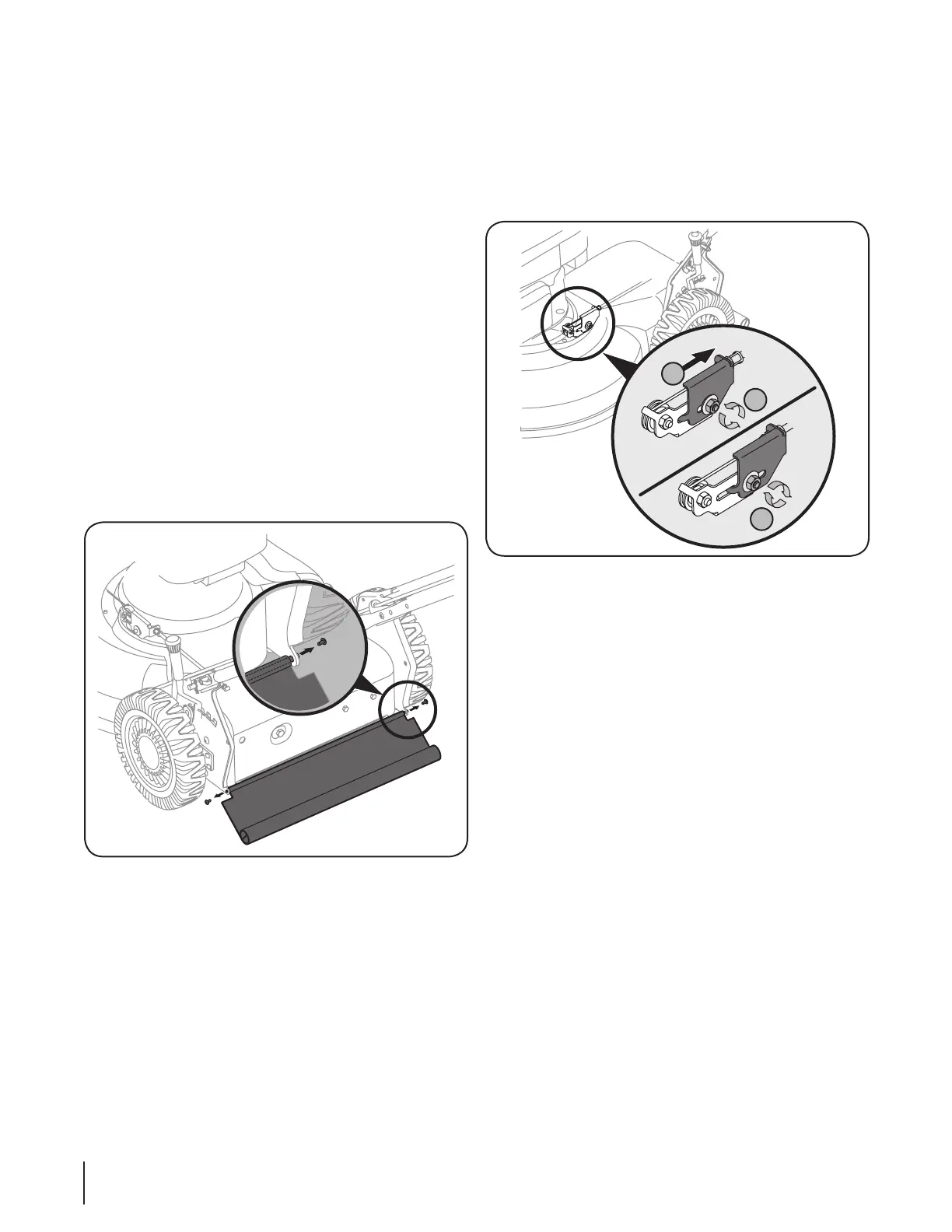

Figure 6-3
1. Start engine and place shift lever in the sixth speed
position.
2. Stop engine and disconnect spark plug wire and ground it
against engine.
3. Loosen hex nut which secures the adjustable cable bracket.
See Figure 6-3.
4. Push back on the adjustable cable bracket.
5. Tighten hex nut.
Engine Care
A list of key engine maintenance jobs required for good
performance by the mower is given below. Follow the
accompanying engine manual for a detailed list and instructions.
• Maintain oil level as instructed in engine manual.
• Service air cleaner every 25 hours under normal conditions.
Clean every few hours under extremely dusty conditions.
Poor engine performance and flooding usually indicates
that the air cleaner should be serviced. To service the air
cleaner, refer to the engine manual.
• Clean spark plug and reset the gap once a season. Spark
plug replacement is recommended at the start of each
mowing season. Check engine manual for correct plug
type and gap specifications.
• Clean engine regularly with a cloth or brush. Keep the
top of the engine clean to permit proper air circulation.
Remove all grass, dirt, and combustible debris from muffler
area.
Replacing Rear Flap
To replace rear flap, proceed as follows:
1. To remove rear flap, lift rear door, remove screw, and press
flap in on either side to remove from hole. See Figure 6-2.
Figure 6-2
2. Remove screw and flap from opposite hole and replace
with new flap in the opposite order and manner of
removal.
