Cub Cadet Challenger 500 Service Manual

Engine
4‐15

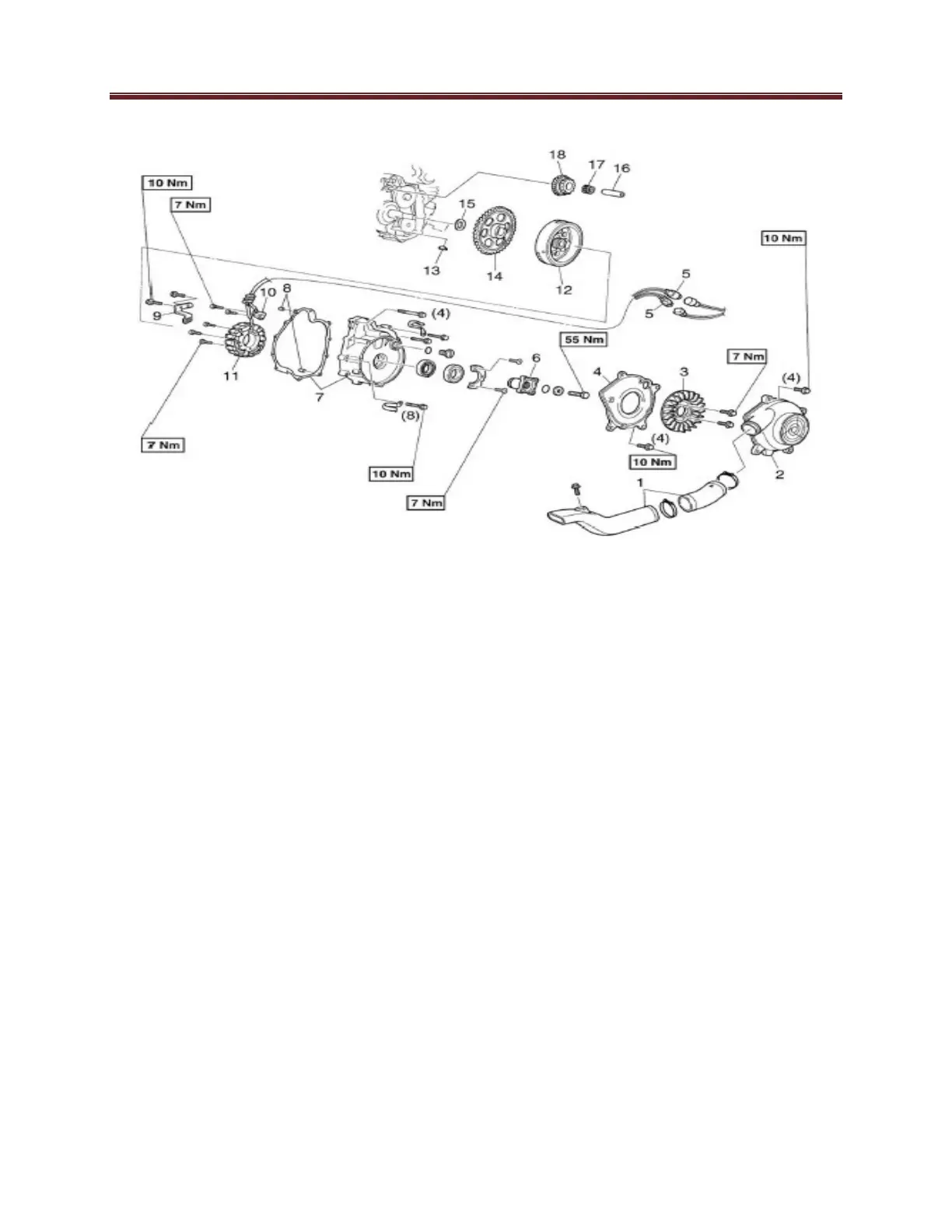

Engine cooling Fan and A.C Magneto
No. Part Name Qty Remarks
Removing the Engine Cooling Fan Remove the parts in the orde
r
listed.
and A.C. Magneto
Drive Belt cove
r
Engine oil
Coolant
Water Pump assembly
1 Engine cooling fan air duct assembly 1
2
A
ir shroud 1 1
3 Engine cooling fan 1
4
A
ir shroud 2 1
5
A
.C. Magneto couple
r
2
6 Engine cooling fan pulley base 1
7
A
.C. Magneto cover/ gasket 1/1
8 Dowel pin 2
9 Stator lead holde
r
1
10 Pickup coil 1
11 Stato
r
assembly 1
12
A
.C. Magneto roto
r
1
13 Woodruff key
1
14 Starter wheel gea
r
1
15 Washe
r
1
16 Starter idle gea
r
shaft 1
17 Bearing
1
18 Starter idle gea
r
1
Installation, reverse the order listed
