Cub Cadet Challenger 500 Service Manual

Chassis
5‐27

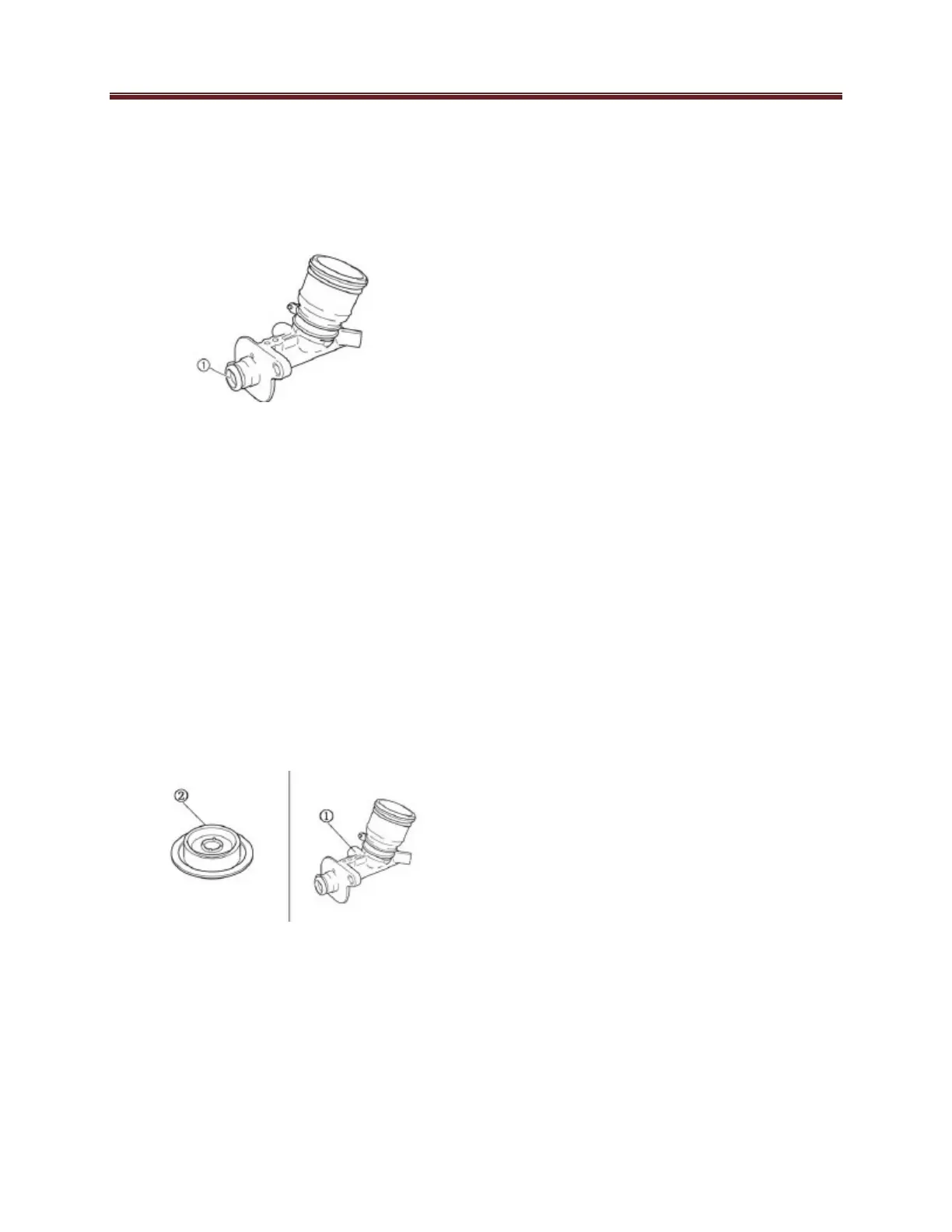

Inspecting the Brake Master Cylinder
1. Inspect
 Brake master cylinder (1).
Look for scratches or wear.
 Brake master cylinder body
Look for cracks or damage.
 Brake fluid passages
Blow out with compressed
air.
 Brake fluid reservoir (1)
 Brake fluid reservoir
diaphragm (2).
Look for cracks or damage.
Installing the Brake Master Cylinder
1. Install the brake master cylinder
16Nm (1.6 m · kg, 11 ft · lb)
2. Install the brake line:
19Nm (1.9 m · kg, 13 ft · lb)
3. Ins
tall the copper washers, brake
hose and union bolt.
27Nm (2.7 m · kg, 19 ft · lb)
4. Fill the reservoir.
Must use DOT 3 Brake Fluid.
5. Bleed the brake system.
6. Recheck the brake fluid level.
Above the minimum Level mark.
7. Adjust the brake pedal free play.
