11Section 3 — ASSembly & Set-Up
6. Secure the chute deflector in place with the flange lock
nut and hex screw removed in step 2. Tighten to 102-124
in-lbs. See Figure 3-6.

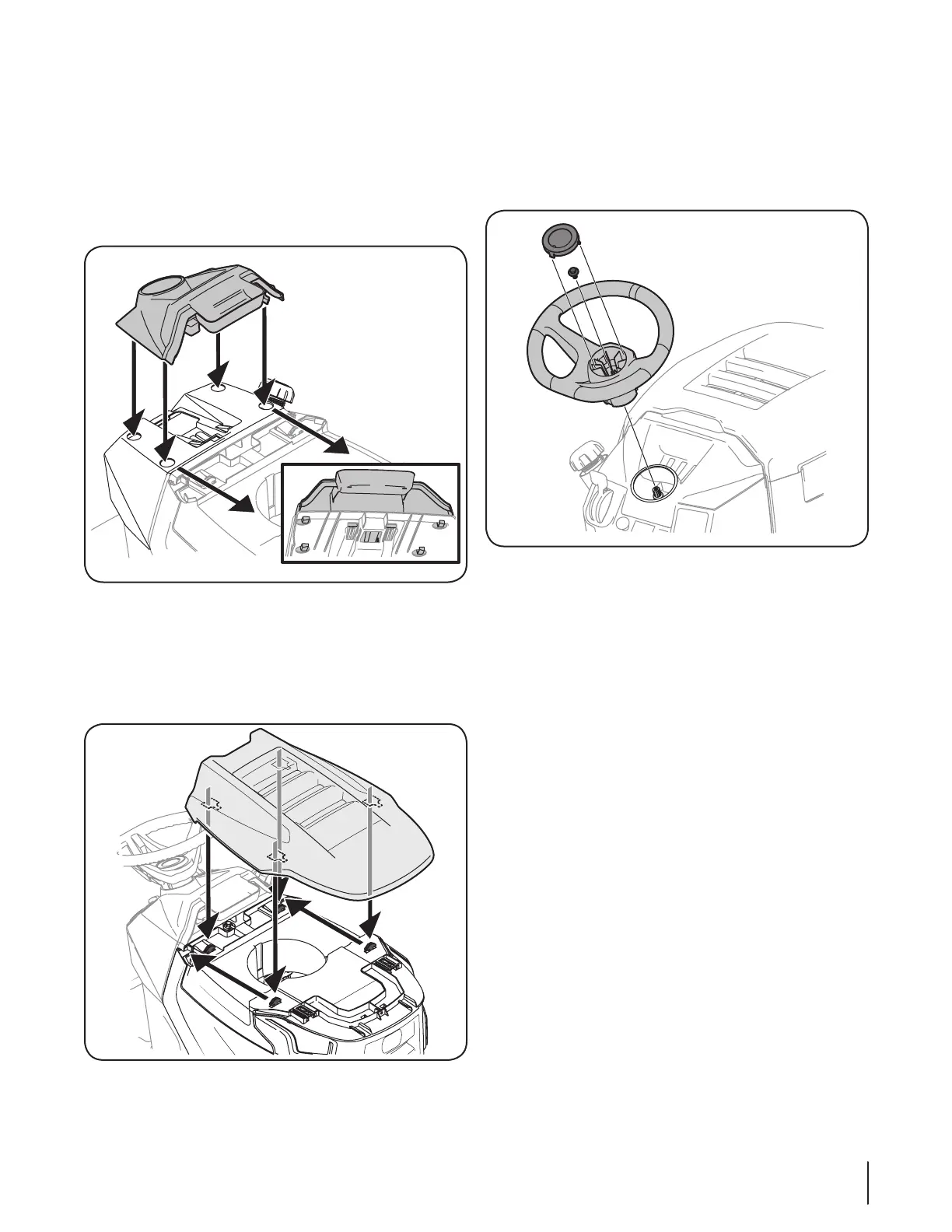

Installing the Dash Cap (If necessary)
To install the dash cap, line up the tabs on the dash cap with the
holes in the upper dash as shown in Figure 3-6. Slide the tabs
into the holes in the upper dash and push forward on the dash
cap to lock into place.
Figure 3-7
Installing the Hood Topper (If necessary)
To install the hood topper, line up the tabs on the hood topper
up with the holes in the hood frame as shown in Figure 3-7. Insert
the tabs into the hood frame and pull back on the hood topper
to lock into place.
Figure 3-8
Installing the Steering Wheel (If necessary)
The hardware for attaching the steering wheel has been packed
within the steering wheel, beneath the steering wheel cap.
Carefully pry off the steering wheel cap and remove the hardware.
1. With the wheels of the tractor pointing straight forward, place
the steering wheel over the steering shaft. See Figure 3-8.
Figure 3-9
2. Secure the steering wheel with the hex bolt from under the
cap.
3. Place the steering wheel cap over the center of the steering
wheel and push downward until it “clicks” into place.
