25Section 7 — Service
Headlights
Refer to Replacement Parts section when replacement of head
lamp bulbs is necessary.
Replace headlight bulbs as follows:
Fully raise the hood of the tractor.
2. Unplug the wire harness leads from the headlight socket
terminals. Note which wire connects to each terminal
before disconnecting.
Rotate the socket assembly approximately ⁄ turn to align
the socket tab with the reflector housing notch; then
withdraw the bulb and socket assembly from the reflector

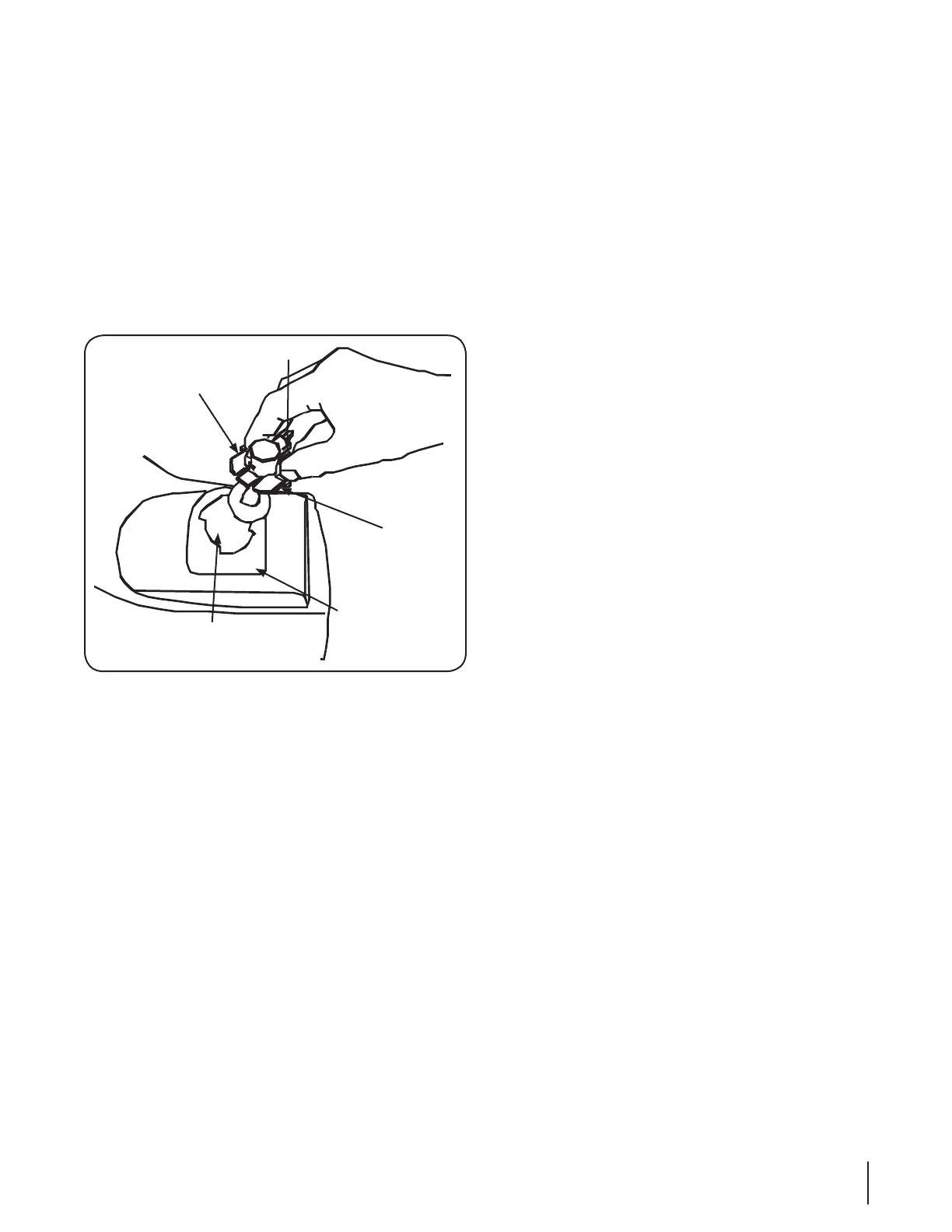

Terminal
Socket Tab
Reflector Notch
Socket
Reflector Housing
Figure 7-3
4. Push the bulb inward and turn counterclockwise to remove
from the socket.
5. Align a locking post of the bulb base with the notch in the
socket, then push the bulb inward and turn clockwise to
6. Align the socket tab with the notch of the reflector
housing; then push the socket inward and turn as
necessary to lock the socket in the housing:
7. Connect the wire harness leads to the appropriate socket
terminals.
Fuses
Always use the same capacity fuse for replacement. If the
electrical system does not function, check the fuses.
To replace a fuse, pull the old fuse from the fuse holder and
install the new fuse.
