Rev. -, p. 14 of 19
13. VINYL FILLERS (cont’d.)

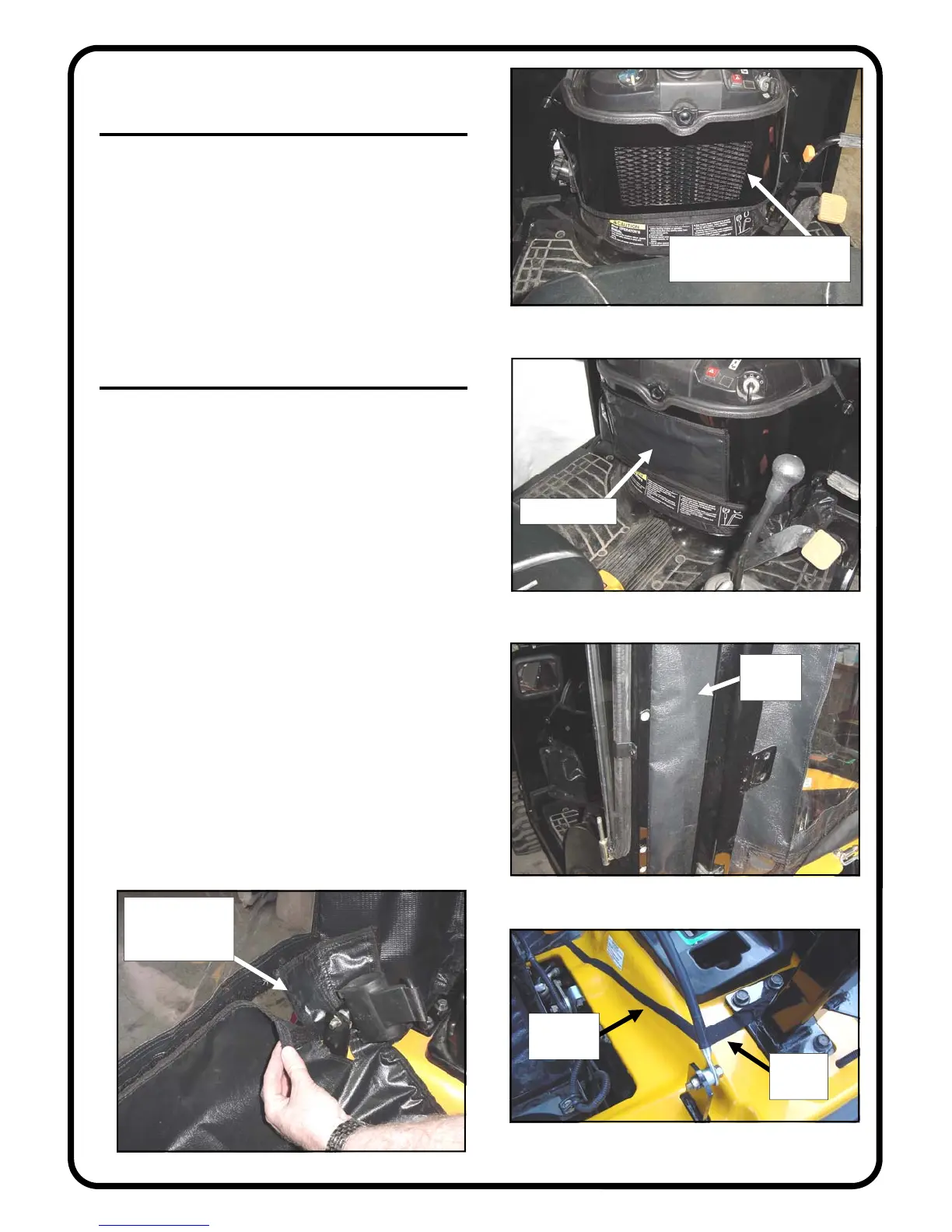

13.7 Per fig. 13.7, apply narrow 5/8” wide PSA hook
velcro along four sides of the rectangular air flow open-
ings as shown.
13.8 Per fig. 13.8, install the final rectangular filler
over the air flow openings onto the newly installed vel-
cro. Note: the air shield filler is the larger of the two rec-
tangular pieces provided. This filler is used in cooler
weather to help keep heat in the cab. In warmer weather,
the filler can be removed for increased air flow to the
radiator.
14. SOFT REAR CURTAIN
14.1 If not installing a soft rear curtain, skip to step 15
on the next page.
14.2 Snap the rear curtain to the factory installed snaps
on the inside surface of the back of the roof (6 snaps).
14.3 Per fig. 14.3, apply large 1” wide PSA (pressure
sensitive adhesive) hook velcro to the back inside surface
of the vertical rear tube of the side frames. Continue the
hook velcro 90 degrees on to the yellow fender of the
tractor. Note: surfaces must be clean, dry, and at room
temperature for best adhesion.
14.4 Attach the loose rear edge of the underseat filler to
the bottom of the soft rear curtain and work the velcroed
flaps around the seatbelts to suit. See fig. 14.4.
Fig. 14.3 (view from left rear side of tractor)
soft rear
curtain
Fig. 14.4 (view from right side of tractor)
filler velcros
onto itself
around seatbelts
Fig. 13.7 (air shield vinyl filler)
velcro all around perimeter
of rectangular vent opening
Fig. 13.8 (air shield vinyl filler)
filler installed
Fig. 14.3 (view from left rear side of tractor)
5/8” wide
velcro
1” wide
velcro
To Next Page
