Cub Cadet Snow Cab/Sun Shade - Assembly & Set-Up; Contents of Carton and Hardware

Assembly & Set-Up
3
5

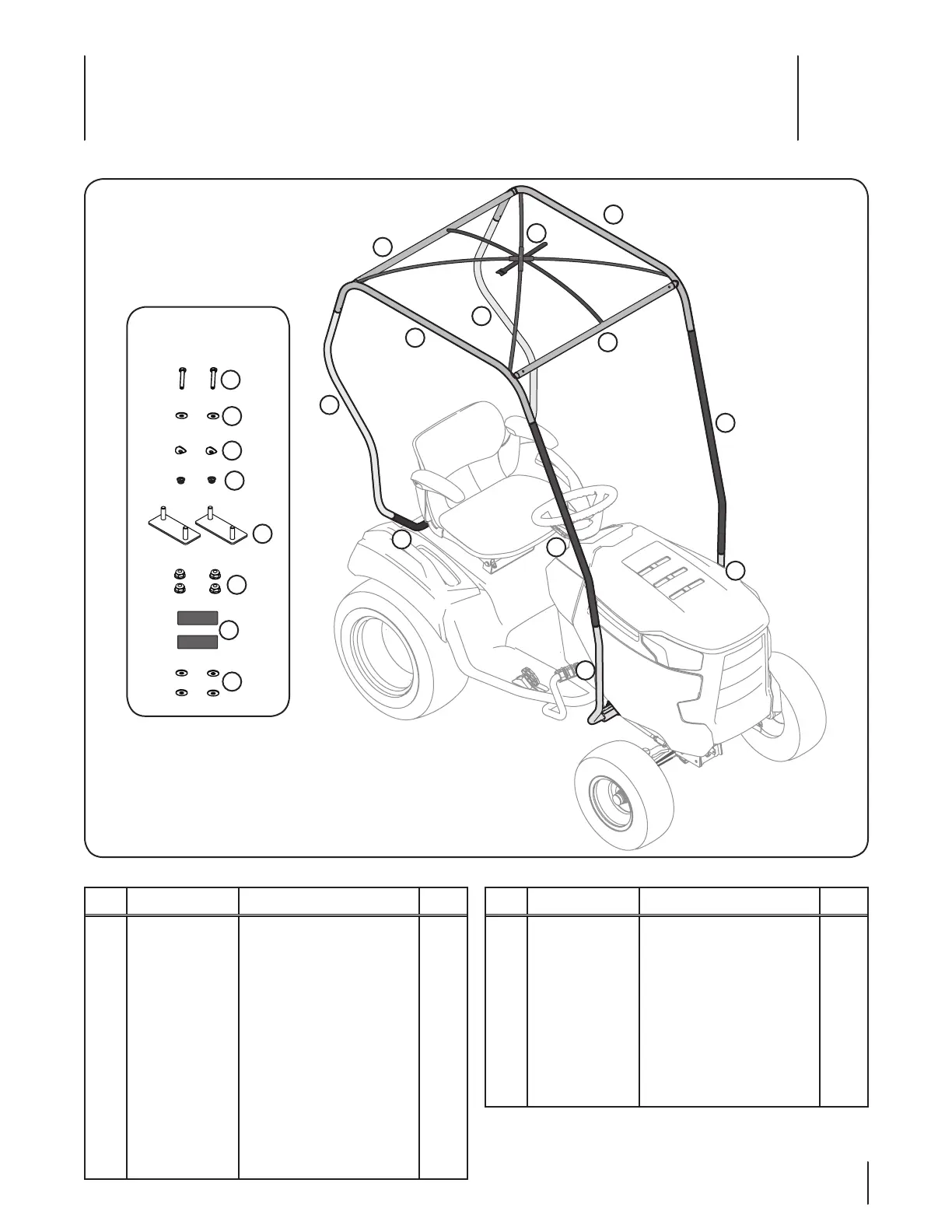

Contents of Carton
Figure 3-1
11
10
8
9
12
14
17
13
Hardware &
Loose Pack Items
5
3
1
2A
7
3
2B
7
6B
5
6A
4
Ref.
Part Number Description Qty.
1 749-05389B Rear Support 1
2A 749-05387A Rear Right Support 1
2B 749-05388A Rear Left Support 1
3 749-07234 Cross Support 2
4
720-05501 Center Support Rod Kit
1
5 749-05384A Front Support 2
6A 649-05054A Front Right Support 1
6B 649-05055A Front Left Support 1
7 649-05053A Side Support 2
8 683-05220 Front Canopy Mount Plate 2
9 736-0451 Sdle. Wash., .320 x .930 x .060 2
Ref.
Part Number Description Qty.
10 712-04063 Flange Lock Nut, ⁄-18 2
11 712-04064 Flange Lock Nut, ⁄4-20 4
12 777X45500 Reector Labels 2 *
13 710-3180 Hex Screw, ⁄-18 x 1.75 2
14 736-3078 Fl. Wash, .344 x 1.000 x .063 2
15 736-0142 Fl. Washers, .281x.500x.063 4
NS 790-00712 Snow Cab 1 *
NS 790-00710 Sun Shade 1 *
* -- If equipped
