9Section 3 — ASSembly & Set-Up

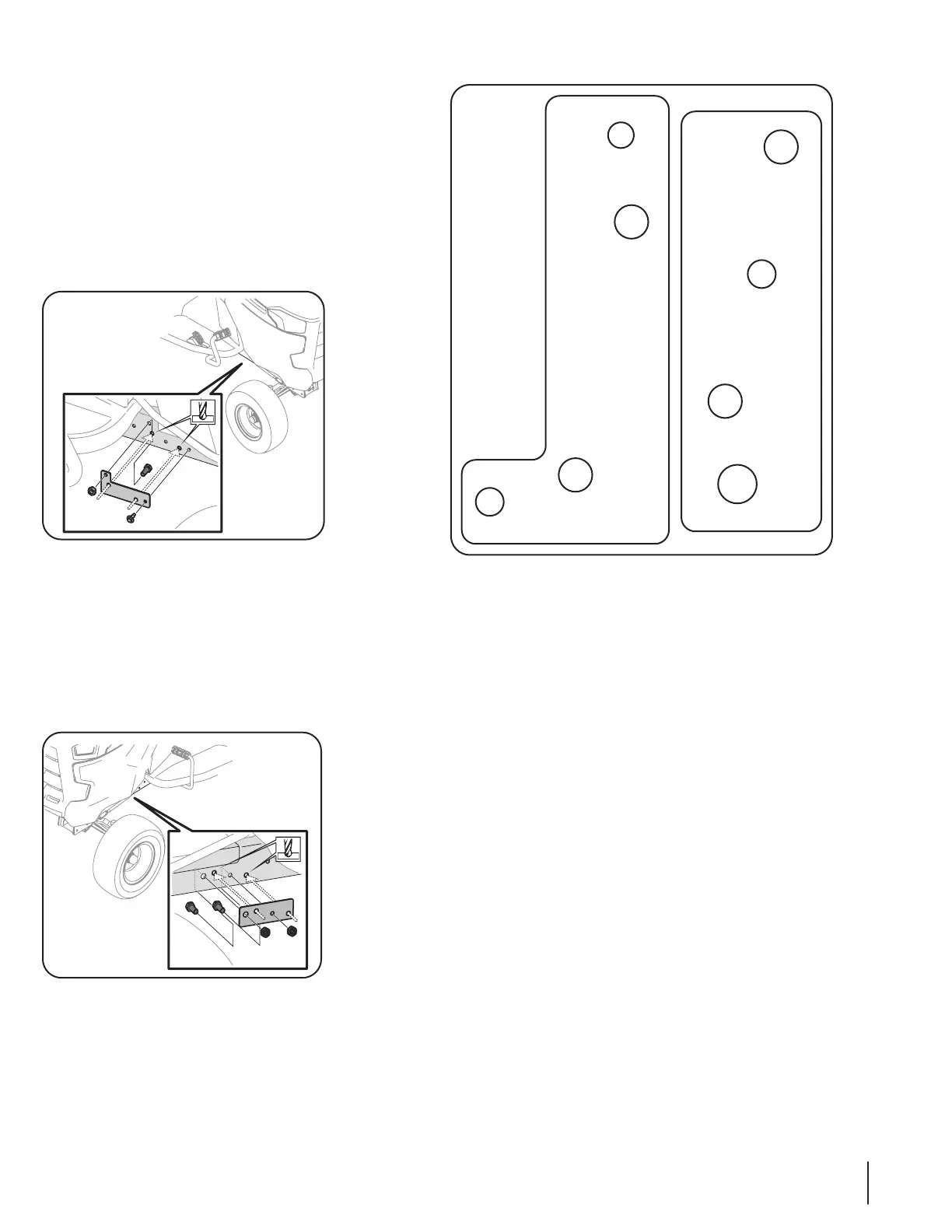

Drill Templates
NOTE: Some tractors will require the use
of the Snow Cab/Sun Shade Mounting Kit
(#759-05086) in order to install. To order the
snow cab/sun shade mounting kit see your
authorized service dealer or contact Customer
Support or use the paper templates to the
Right.
1. Align template A on the right side of the
tractor as shown in secure in place with
the hex screw, nut and screw from the
Snow Cab/Sun Shade Mounting Kit. See
Figure 3-21.
Figure 3-21
2. Drill the appropriate holes with the ⁄”
drill bit provided in the Snow Cab/Sun
Shade Mounting Kit. See Figure 3-21.
3. Remove template A.
4. Align template B on the left side of the
tractor and secure in place with the hex
screws and nuts from the Snow Cab/Sun
Shade Mounting Kit. See Figure 3-22.
Figure 3-22
5. Drill the appropriate holes with the ⁄”
drill bit provided in the Snow Cab/Sun
Shade Mounting Kit. See Figure 3-22.
6. Remove template B and begin the
Assembly steps on page 6.
