20 Section 5— Maintenance & adjuStMentS
Adjusting the Throttle Cable
(Gas Powered Units Only!)
An adjustment is provided in the throttle cable, should such an
action ever be necessary. To locate the cable adjustment, pivot
the passenger seat forward and locate the adjustment in the
throttle cable running along the right side of the unit below the
passenger seat. See Figure 5-13.
1. Loosen the locking nut and thread the adjustment nut
inward or outward in order to maintain at minimum 1/16
of an inch play in the cable when the pedal is in a fully
released (idle) position.
2. Once adjustment is complete retighten jam nut.

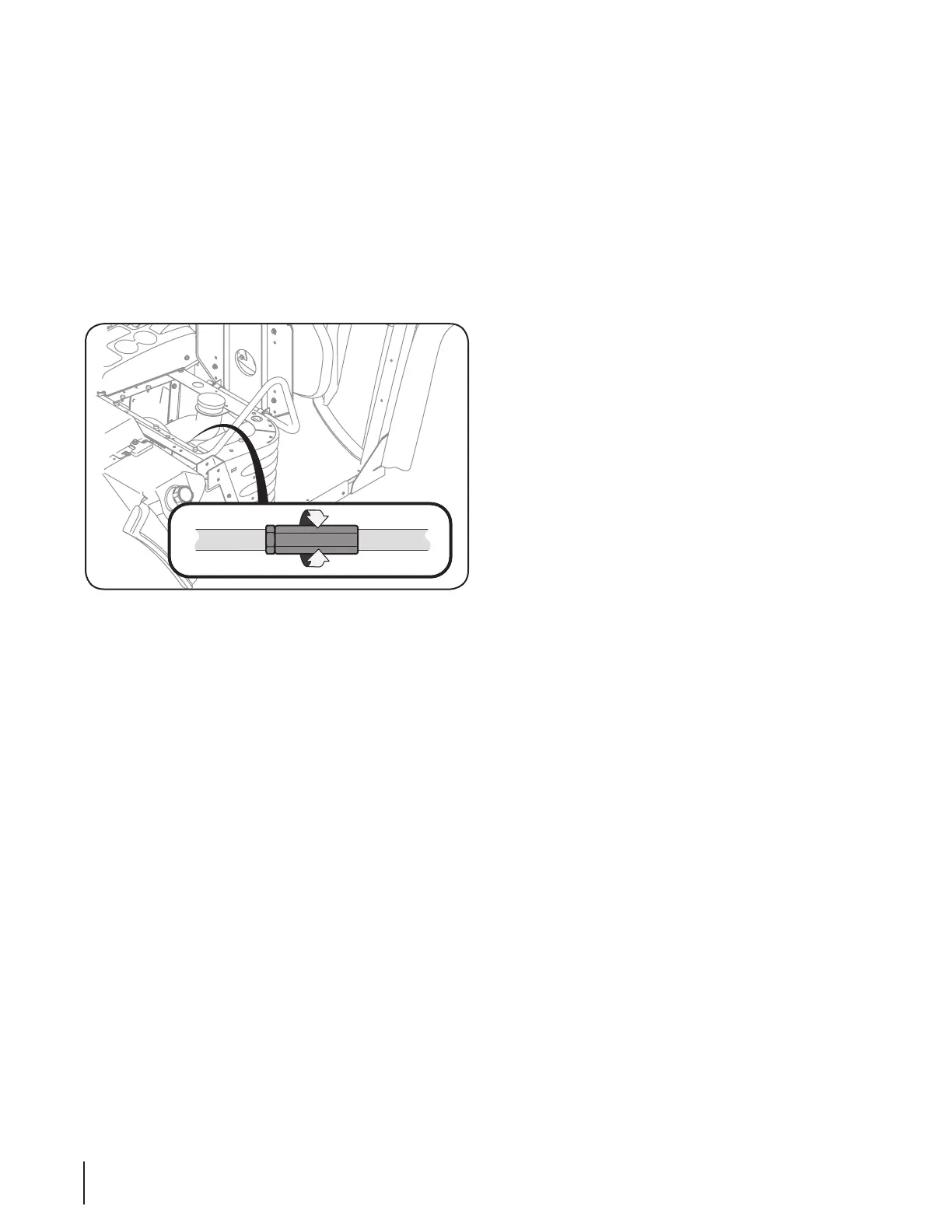

Figure 5-13
