Page%5%of%25%
%%

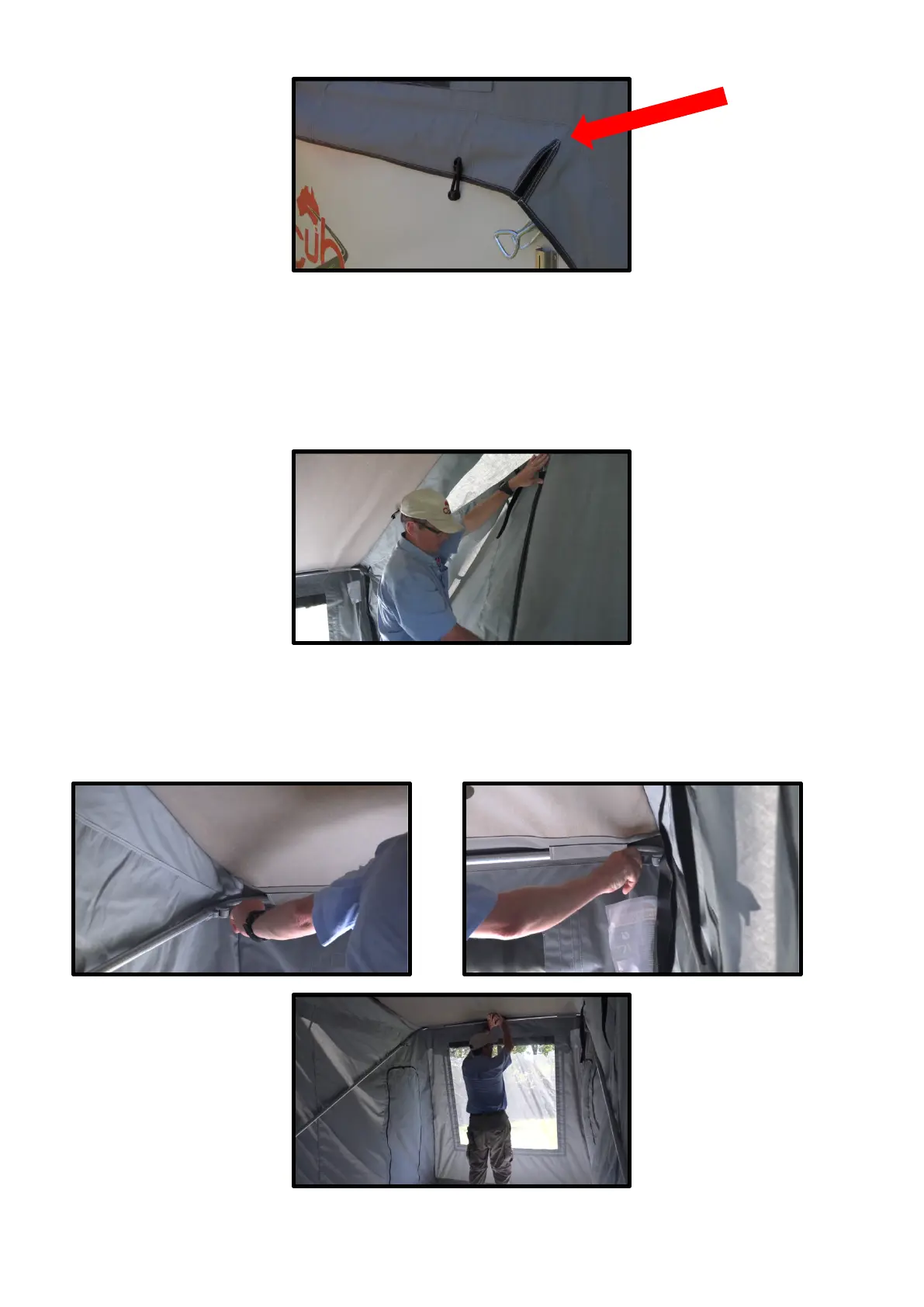

Lift the canvas above and over the weather seal to avoid damage to it
• Walk around the Cub and affix all press studs/shock cords on the canvas tent to the corresponding
press stud/knob on the Cub body, leaving the shock cords on the door way until after full set-up has
been completed.%
%
• Step inside the camper and zip the door closed.
Close the door before pushing out the rear tent bow
%
• Release the 2 snap lock adjusters (Numbered 1 & 2) on either side of the rear tent bow and push
the rear tent bow outwards firmly with both hands. Secure the snap lock adjusters to lock into
position then insert the two white support poles (found on the bed) into the tworear corners of the
Camper.
Release snap lock adjusters numbered 1 & 2
Firmly push out rear bow with both hands & lock snap lock adjusters into position
