Cubic SWAN SS-15 User Manual

PTT
-
VOX
VOX GAIN
VOX
ANT I

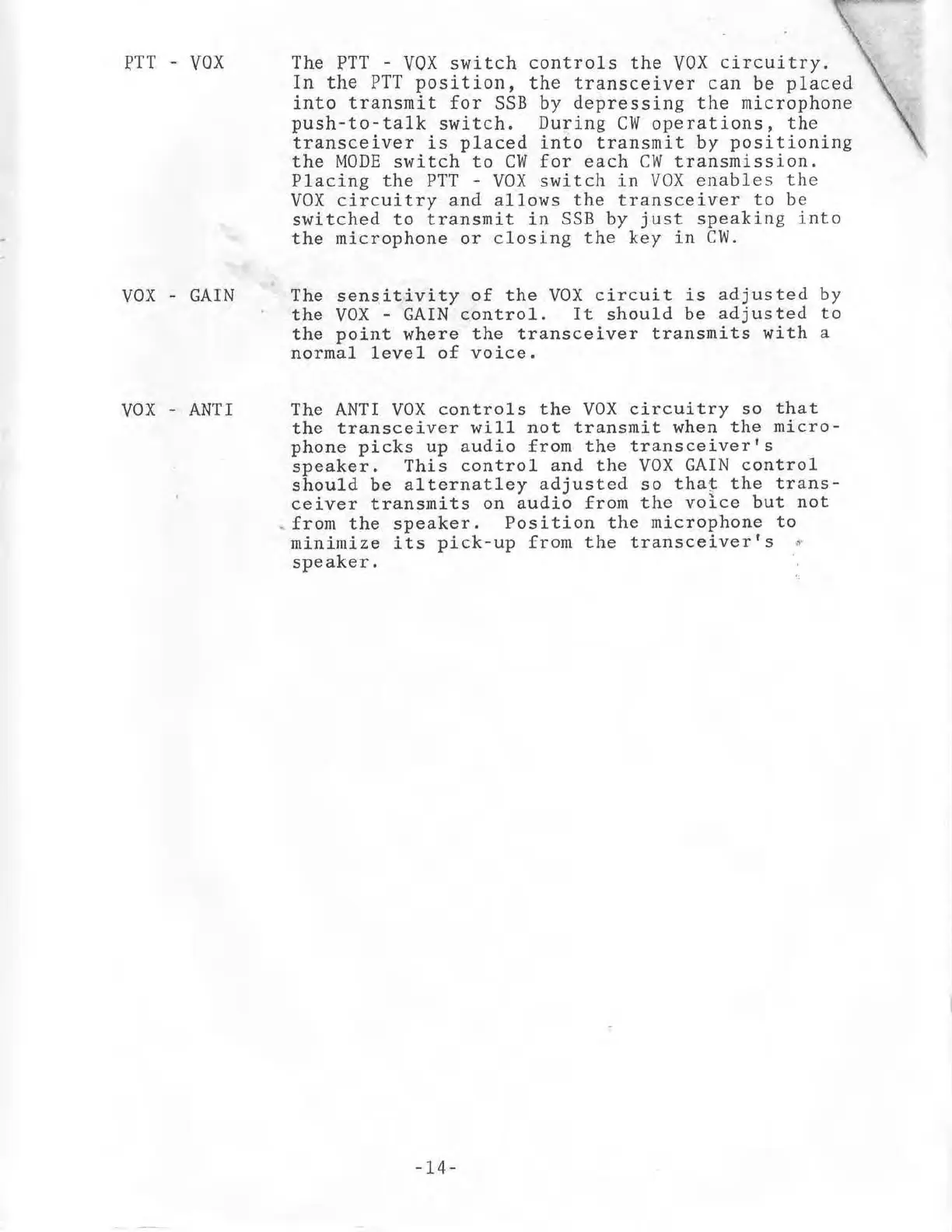

The
PTT
-
VOX
switch
controls
the
VOX
circuitry.
In
the PTT
position,
the transceiver can
be
placed
into
transmit for
SSB by
depressing the microphone
push-to-ta1k
switch.
During
CW
operations,
the
transceiver
is
placed
into transmit by
positioning
the M0DE
switch to CW
for each CW transmission.
Placing the PTT
-
VOX
switch
in VOX
enables
the
VOX circuitry
and allows the transceiver
to
be
switched
to transmit in
SSB by
just
speaking
into
the
rnicrophone
or
closing the key
in
CW.
The
sensitivity
of the VOX circuit
is
adjusted by
the
VOX
-
GAIN control.
It
should
be
adjusted to
the
point
where
the transceiver
transmits
with
a
normal
LeveL of voice.
The
ANTI
VOX
controls
the
VOX
circuitry
so
that
the transceiver
will not
transmit when
the
micro
phone picks
up
audio from the transceiver's
speaker.
This
control and the VOX
GAIN
control
shouLd be
alternatley
adjusted so
tha!
the
trans
ceiver transmits
on hudiir
fron the
voice
but
not
fron the speaker.
Position
the
rnicrophone
to
ninimize its
pick-up
from
the transceiverrs
*"
speaker
-14-
