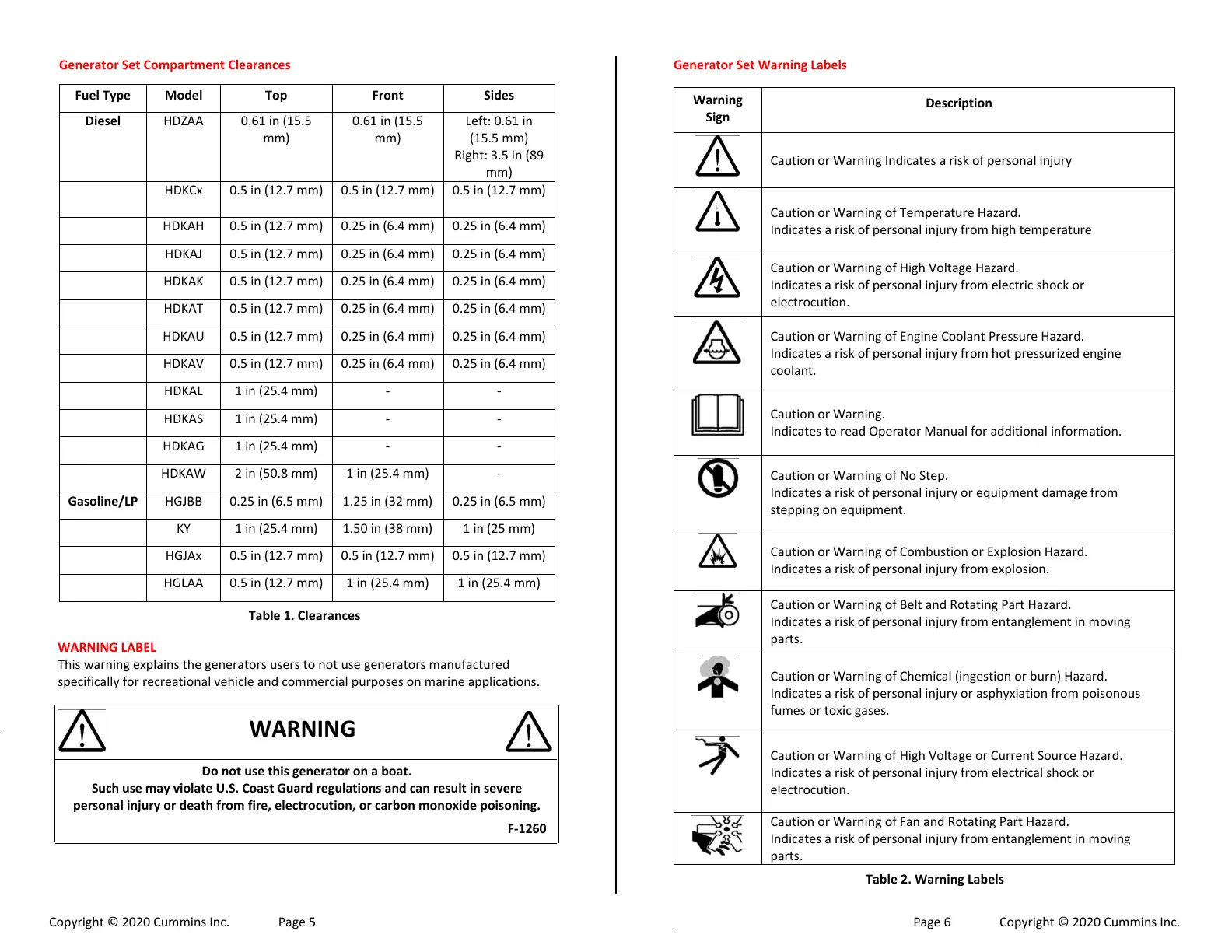

Generator Set Compartment Clearances
FuelType Model Top Front Sides
Diesel HDZAA 0.61in(15.5
mm)
0.61in(15.5
mm)
Left:0.61in
(15.5mm)
Right:3.5in(89
mm)
HDKCx 0.5in(12.7mm) 0.5in(12.7mm) 0.5in(12.7mm)
HDKAH 0.5in(12.7mm) 0.25in(6.4mm) 0.25in(6.4mm)
HDKAJ 0.5in(12.7mm) 0.25in(6.4mm) 0.25in(6.4mm)
HDKAK 0.5in(12.7mm) 0.25in(6.4mm) 0.25in(6.4mm)
HDKAT 0.5in(12.7mm) 0.25in(6.4mm) 0.25in(6.4mm)
HDKAU 0.5in(12.7mm) 0.25in(6.4mm) 0.25in(6.4mm)
HDKAV 0.5in(12.7mm) 0.25in(6.4mm) 0.25in(6.4mm)
HDKAL 1in(25.4mm) ‐ ‐
HDKAS 1in(25.4mm) ‐ ‐
HDKAG 1in(25.4mm) ‐ ‐
HDKAW 2in(50.8mm) 1in(25.4mm) ‐
Gasoline/LP HGJBB 0.25in(6.5mm) 1.25in(32mm) 0.25in(6.5mm)
KY 1in(25.4mm) 1.50in(38mm) 1in(25mm)
HGJAx 0.5in(12.7mm) 0.5in(12.7mm) 0.5in(12.7mm)
HGLAA 0.5in(12.7mm)
1in(25.4mm)
1in(25.4mm)
GeneratorSetWarningLabels
Warning
Sign
Description
CautionorWarningIndicatesariskofpersonalinjury
CautionorWarningofTemperatureHazard.
Indicatesariskofpersonalinjuryfromhightemperature
CautionorWarningofHighVoltageHazard.
Indicatesariskofpersonalinjuryfromelectricshockor
electrocution.
CautionorWarningofEngineCoolantPressureHazard.
Indicatesariskofpersonalinjuryfromhotpressurizedengine
coolant.
CautionorWarning.
IndicatestoreadOperatorManualforadditionalinformation.
CautionorWarningofNoStep.
Indicatesariskofpersonalinjuryorequipmentdamagefrom
steppingonequipment.
CautionorWarningofCombustionorExplosionHazard.
Indicatesariskofpersonalinjuryfromexplosion.
CautionorWarningofBeltandRotatingPartHazard.
Indicatesariskofpersonalinjuryfromentanglementinmoving
parts.
CautionorWarningofChemical(ingestionorburn)Hazard.
Indicatesariskofpersonalinjuryorasphyxiationfrompoisonous
fumesortoxicgases.
CautionorWarningofHighVoltageorCurrentSourceHazard.
Indicatesariskofpersonalinjuryfromelectricalshockor
electrocution.
CautionorWarningofFanandRotatingPartHazard.
Indicatesariskofpersonalinjuryfromentanglementinmoving
parts.
Table 1. Clearances
Table 2. Warning Labels
WARNING LABEL
Thiswarningexplainsthegeneratorsuserstonotusegeneratorsmanufactured
specificallyforrecreationalvehicleandcommercialpurposesonmarineapplications.
WARNING
Donotusethisgeneratoronaboat.
SuchusemayviolateU.S.CoastGuardregulationsandcanresultinsevere
personalinjuryordeathfromfire,electrocution,orcarbonmonoxidepoisoning.
F‐1260
