Curtis LCD2425A User Manual

CONNECTIONS

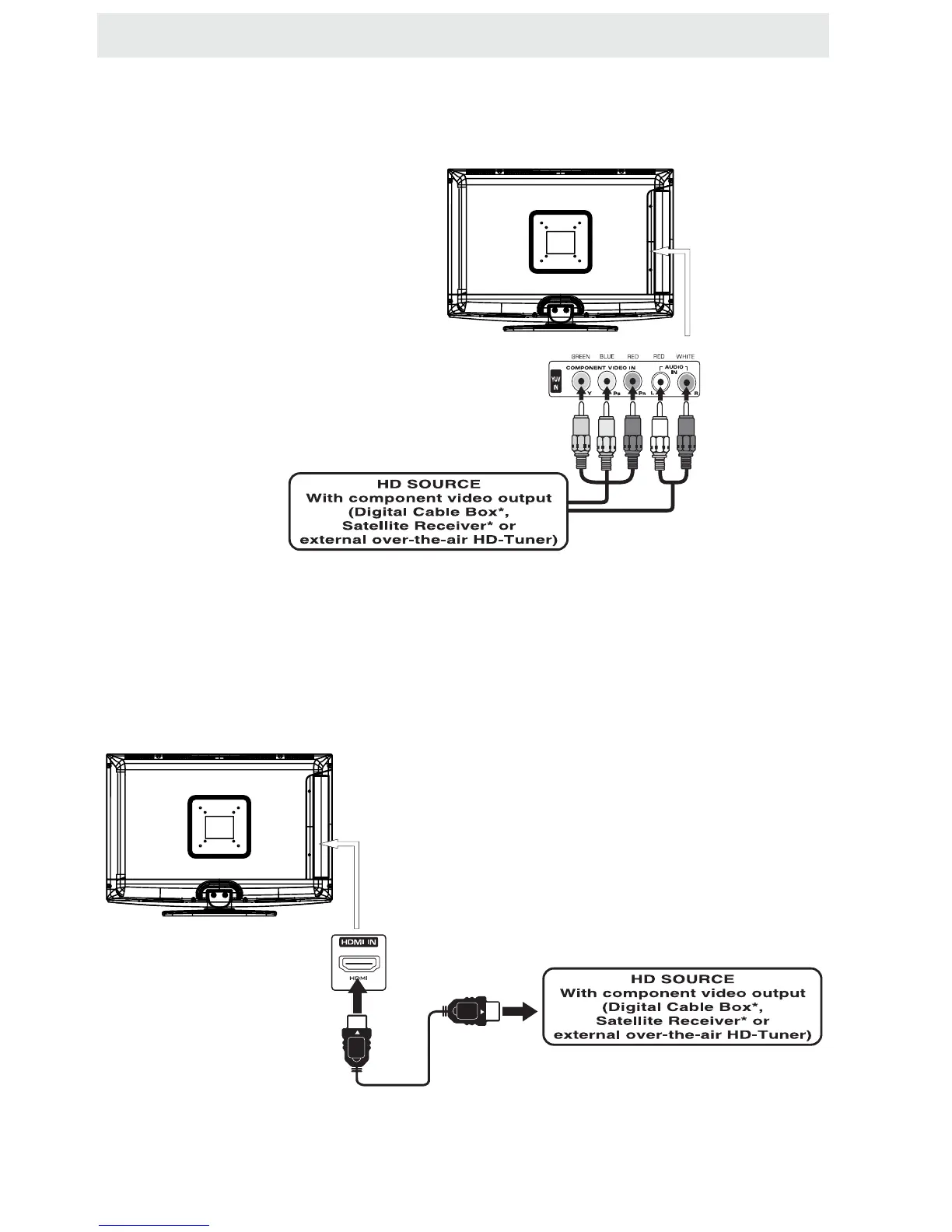

CONNECTING A HIGH-DEFINITION (HD) SOURCE USING CO NNECTION
OUT AU DIO OUT IN AUDIO I
NOTE
COMPONENT
COMPONE COMPONENT N
High-Definition (HD) Devices with component video output must be connected to the Y input.
Connect the component video cable and audio cable (not included) as shown.
Make sure you connect the component video cable and audio cable from the other equipment
( and ) to this unit and ).
When connecting a DVD player to the television,
the picture resolution is solely dependent upon
the resolution suppor ted by the DVD player attached.
DVD player resolutions var y from 480i to 1080 ,
and this television can suppor t DVD players up to
a maximum resolution of 1080i .
PbPr
i
* May require a subscription
for receiving HD channels,
check with your cable/satellite
ser vice provider for details.
To COMPONENT
VIDEO OUT jacks
CONNECTING A HIGH-DEFINITION (HD) SOURCE USING HDMI CONNECTION
HDMI (High Definition Multimedia Inter face) suppor ts both video and audio on a single digital connection
for use with DVD players, DTV, set-top boxes and other digi tal AV devices. HDM I was developed to provide
the technologies of High Bandwidth Digital Content Protection (HDCP) as well as Digital Visual Interface
(DVI) in one specification. HDCP is use d to protect digital content transmitted and received by
DVI-compliant or HDMIcompliant displays.
HDMI has the capability to suppor t standard, enhanced or high-definition video plus standard to
multi-channel surround-sound audio. HDMI features include uncompressed digital video, a bandwidth of
up to 2.2 gigabytes per second (with HDTV signals), one connector (instead of several cables and
connectors), and communication between the AV source and AV devices such as DTVs.
To HDMI
IN jack
To HDMI
jackOUT
To COMPONENT
VIDEO IN jacks
( IN)COMPONENT
To AUDIO
IN jacks
( IN)COMPONENT
To AUDIO
OUT jacks
Connect the HDMI cable (not included) as
shown:
Make sure you connect the cable from the
source equipment () to this unit
().
HDMI OUT
HDMI IN
HDMI CABLE
(NOT INCLUDED)
8
