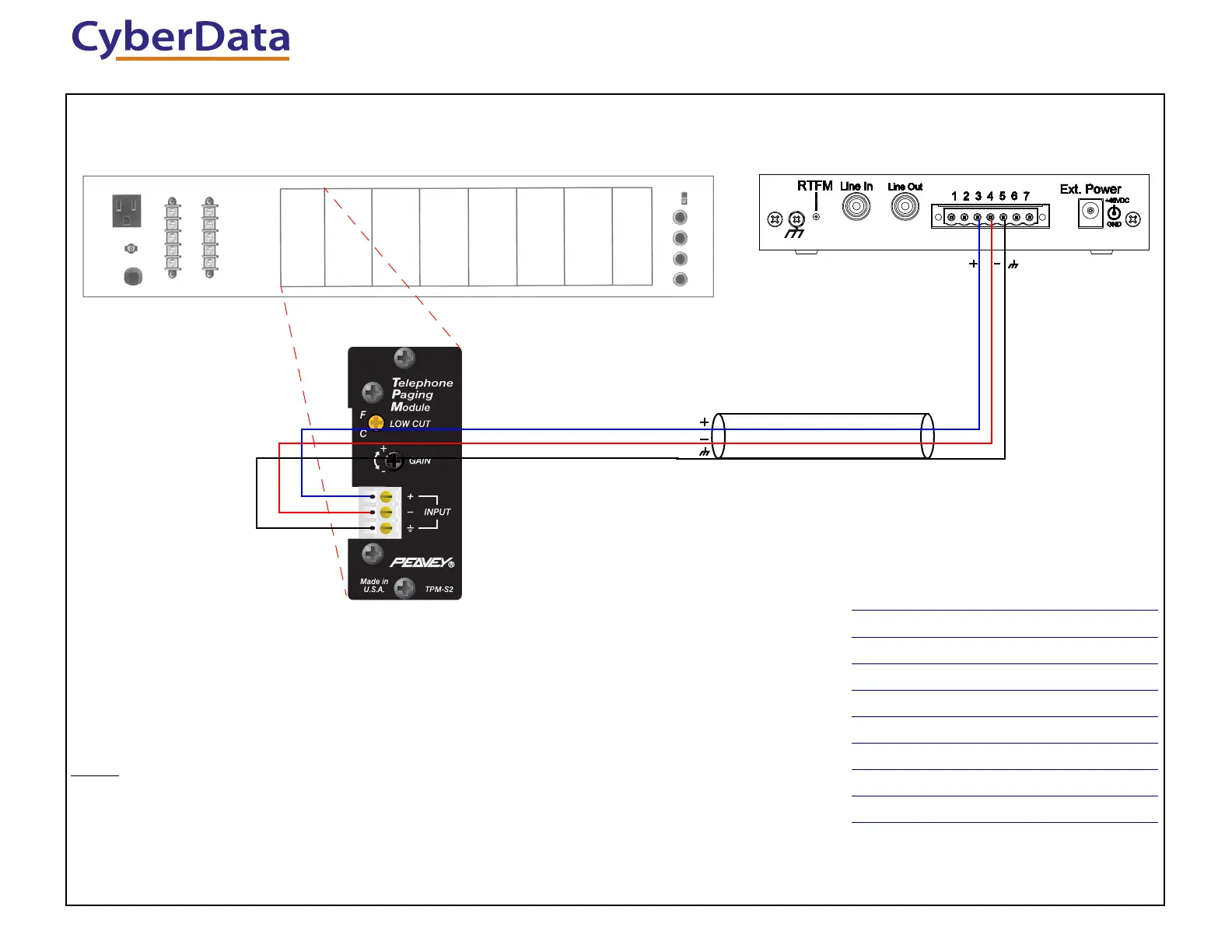

Peavey MMA 8150T Amplifier to SIP Paging Adapter Connections
Peavey MMA 8150T Amplifier SIP Paging Adapter Connections
+
-
+
-
Notes
This page shows possible connections to a TPM-S2 module
Connect the SIP Paging Adapter's Page Port output terminal pins to the INPUT
on the TPM-S2 module.
2 conductor, shielded speaker wire is recommended.
s
SIP Paging Adapter Connections
Pin Description
1 Fault Sense Input (Common).
2 Fault Sense Input (Sense).
3 Positive 600-Ohm Audio Output
a
a.The 600-Ohm audio output of the page port is
also suited for interfaces with lower input
impedances.
4 Negative 600-Ohm Audio Output
a
5 Audio Ground Reference.
6 Relay Contact - Common
b
b.1 Amp at 30 VDC for continuous loads.
7 Relay Contact - Normally Open
b
PGM IN
930715A
Keep as short as possible
Shield/Drain Wire Shield/Drain Wire
Hi
Lo
Hi
Lo
Balanced
