24

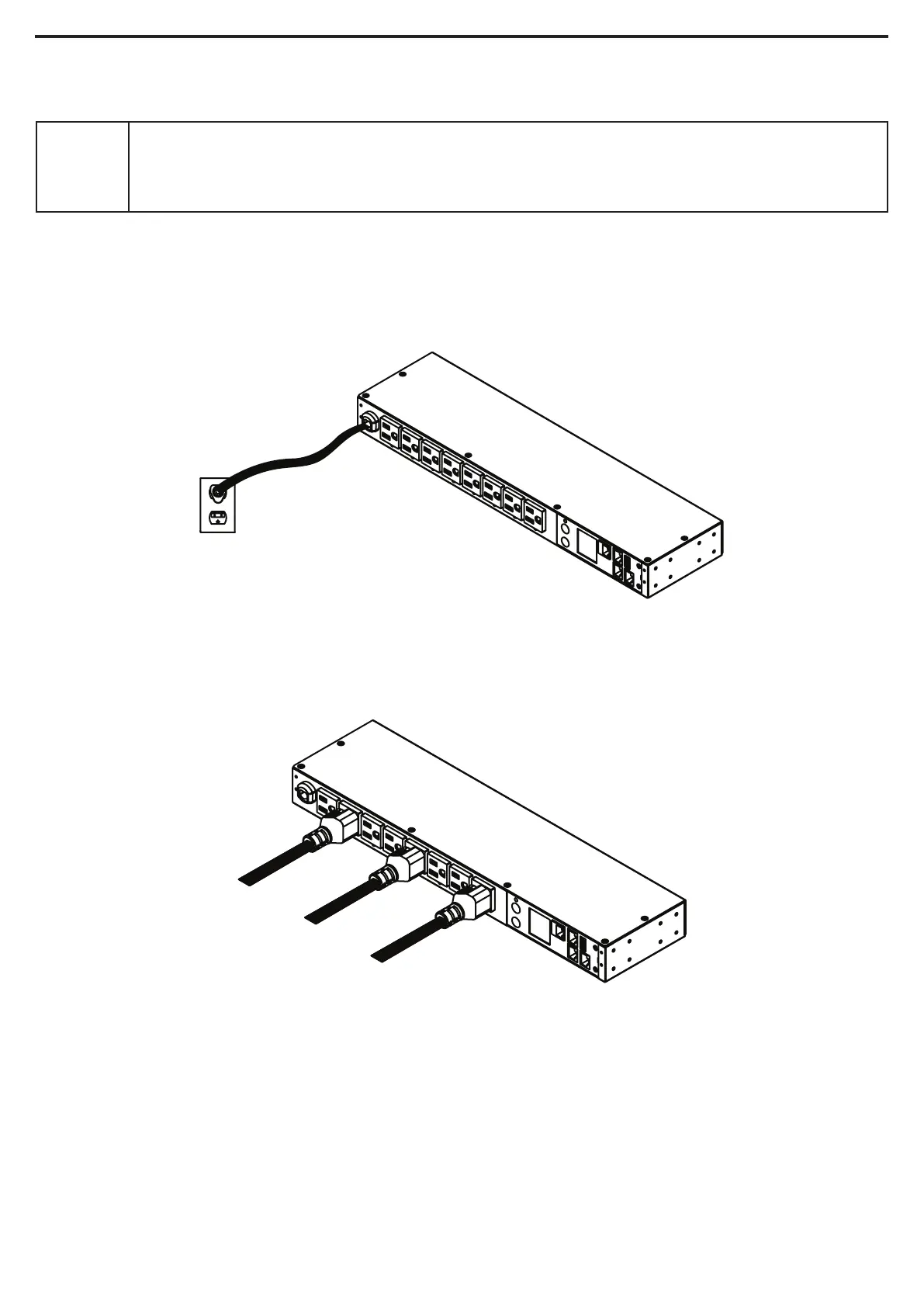

Step 1. Receptacle evaluation
Ensure that the plug type of your PDU unit matches the wall receptacle type that you are using.
Step 2. Plug the PDU into a CyberPower UPS system (recommended) or the wall receptacle.
Step 3. Attach equipment
It is extremely important not to exceed the PDUs maximum current load (as outlined in the Speciļ¬cations section).
In order to determine your total load, use the LCD screen on the front of the PDU to monitor the load being attached.
INSTALLATION GUIDE
Electrical Installation
i
CAUTION!
CAUTION! The PDU must be plugged into a three-wire, grounded wall receptacle only.
The wall receptacle must also be connected to an appropriate branch circuit/main with
fuse or circuit breaker protection. Connection to any other type of wall receptacle may
result in a shock hazard.
