CyberPower PDU81001 User Manual

8

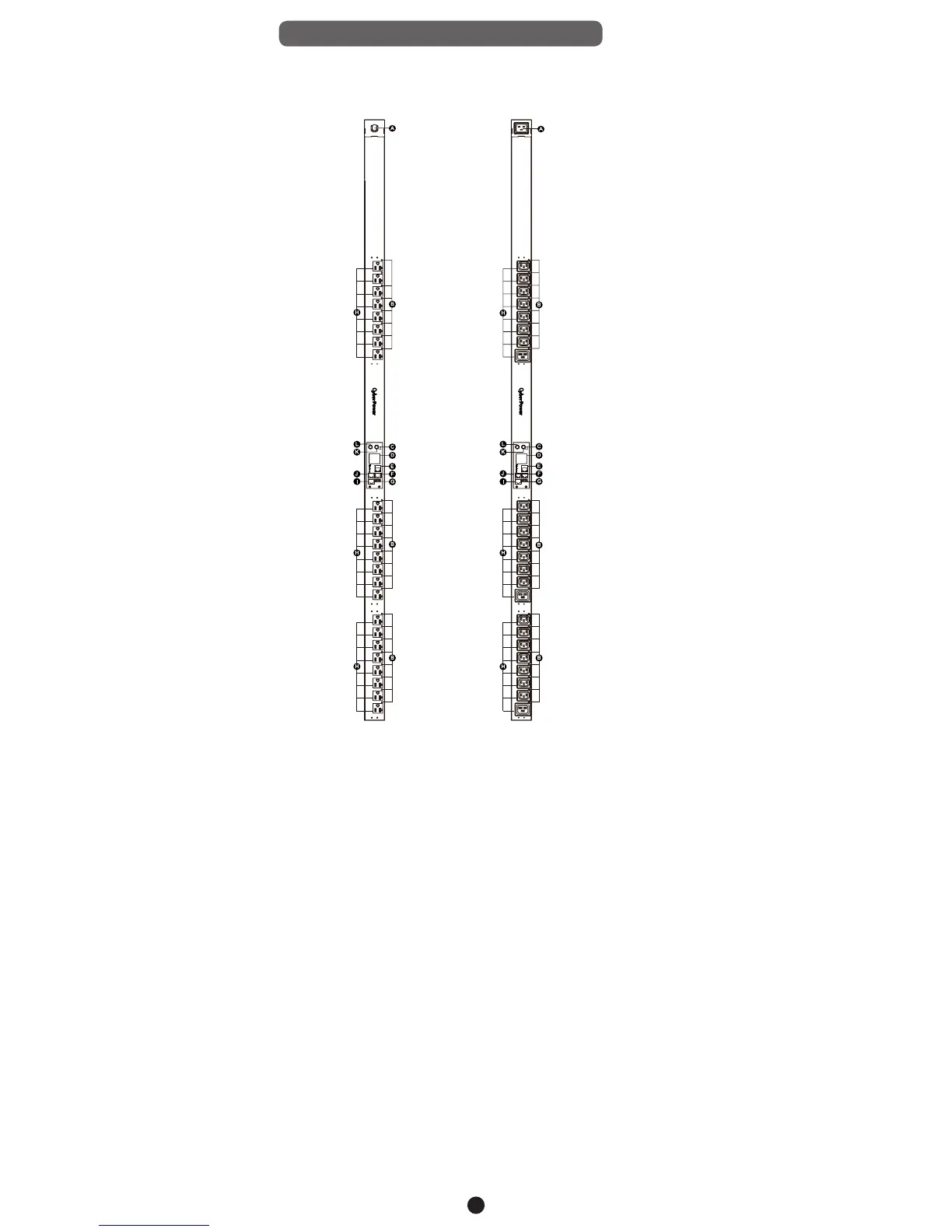

Product Features (0U 16/20A Models)
Front Panel Description
NEMA Type IEC Type
A. AC Inlet/ AC Power Cord - Used to connect PDU to utility
power or UPS.
B. Outlet Indicator (switched series only) – Indicates if the outlet
is providing power to connected equipment.
C. Status Indicator - Indicates the condition of the PDU (eg. load
or environment status).
D. Multifunction LCD Readout - Displays various PDU
information such as power and load condition.
E. Ethernet Port - Used to connect PDU to the network.
F. ENVIROSENSOR/ Daisy Chain (In) Port (RJ45 modular port)
- Used for ENVIROSENSOR or chaining to previous PDU.
G. USB Port - Used to upgrade the firmware via a flash drive.
H. AC Output Receptacles - Provides power for connected
equipment.
I. Serial Port (RJ45 modular port) - Used to connect to a PC
and control the PDU locally via SSH/Telnet.
J. Daisy Chain (Out) Port - Used for chaining to next PDU.
K. Select Button - Used to control the LCD screen and toggle
through the available information options.
L. Enter Button - Used to choose selected items, enter to next
level menu or return to previous menu.
2422 2320 2118 191713 14 15 16129101167812345
- Critical - Warning
- Normal
Link
Tx/Rx
In / ENV
USB
Out
Serial
Enter
Select
- Critical - Warning
- Normal
Link
Tx/Rx
In / ENV
USB
Out
Serial
Enter
Select
1234567 9101112 13 14 15
16
17 18 19 20212223
24
8
