CyberPower PDU81001 User Manual

5

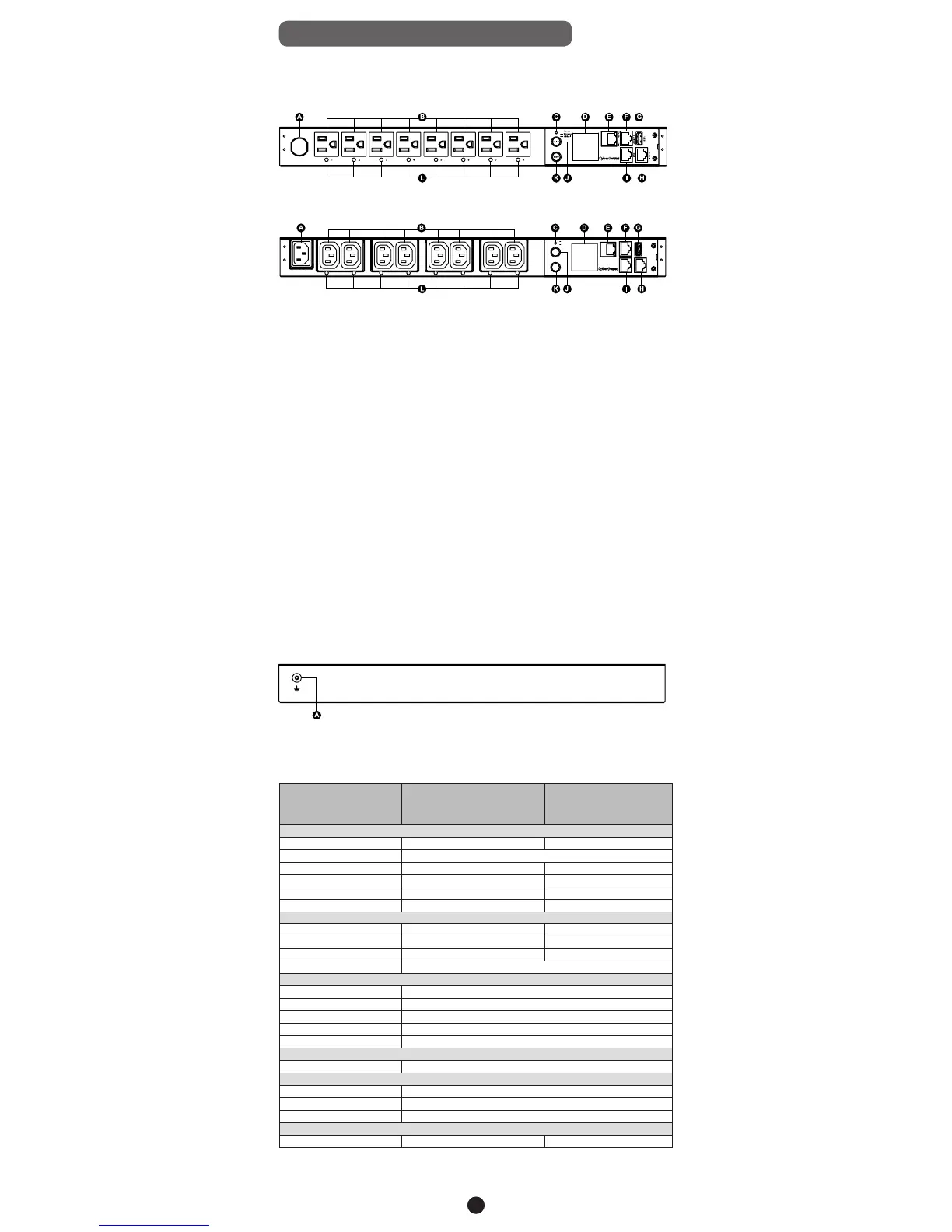

Product Features (1U 15A Models)
Front Panel Description
NEMA Type
IEC Type
Rear Panel Description
Technical Specifications
Model Name
PDU81001
PDU71001
PDU41001
PDU31001
PDU81004
PDU71004
PDU41004
PDU31004
Input
Nominal Voltage 100-120V 100-240V
Frequency 50/60Hz
Maximum Input Current 12A UL (Derated) 10A CE/ 12A UL (Derated)
Plug Type NEMA 5-15P IEC 320 C14
Power Cord Type SR (14 AWG) Socket
Power Cord Length 12 ft/3.65 m 10 ft/3.05 m
Output
Nominal Voltage 100-120V 100-240V
Maximum Output Current 12A UL (Derated) 10A CE/ 12A UL (Derated)
Outlet Type NEMA 5-15R IEC 320 C13
Outlet Number 8
Management and Communications
Multifunction LCD Readout Voltage, Frequency, Load, Current, HW/FW Version, Network Information
Software PowerPanel® Business Edition
Networking Yes
Serial Port RJ45
Sensor Capable Optional
Physical
Dimensions (H x W x D) 1.75" x 17.05" x 4.41"/ 44mm x 433mm x 112mm
Environmental
Humidity 0 to 95% Non-condensing
Altitude 11480 ft/3500 m
Temperature 32
o
F to 131
o
F / 0
o
C to 55
o
C
Safety Approvals
Certifications UL 60950-1, FCC Class A UL 60950-1, CE, FCC Class A
* All specifications are subject to change without notice.
A. AC Inlet/ AC Power Cord - Used to connect PDU to utility
power or UPS.
B. AC Output Receptacles - Provides power for connected
equipment.
C. Status Indicator - Indicates the condition of the PDU (eg.
load or environment status).
D. Multifunction LCD Readout - Displays various PDU
information such as power and load condition.
E. Ethernet Port – Used to connect PDU to the network.
F. ENVIROSENSOR/ Daisy Chain (In) Port (RJ45 modular port)
– Used for ENVIROSENSOR or chaining to previous PDU.
G. USB Port - Used to upgrade the firmware via a flash drive.
H. Serial Port (RJ45 modular port) - Used to connect to a PC
and control the PDU locally via SSH/Telnet.
I. Daisy Chain (Out) Port – Used for chaining to next PDU.
J. Select Button - Used to control the LCD screen and toggle
through the available information options.
K. Enter Button - Used to choose selected items, enter to next
level menu or return to previous menu.
L. Outlet Indicator (switched series only) – Indicates if the
outlet is providing power to connected equipment.
A. Ground Stud - Use to ground the PDU.
Select
Enter
- Warning
- Normal
Tx/Rx
Link
In / ENV
Out
USB
Serial
1
2
3
4
5
67 8
- Critical
