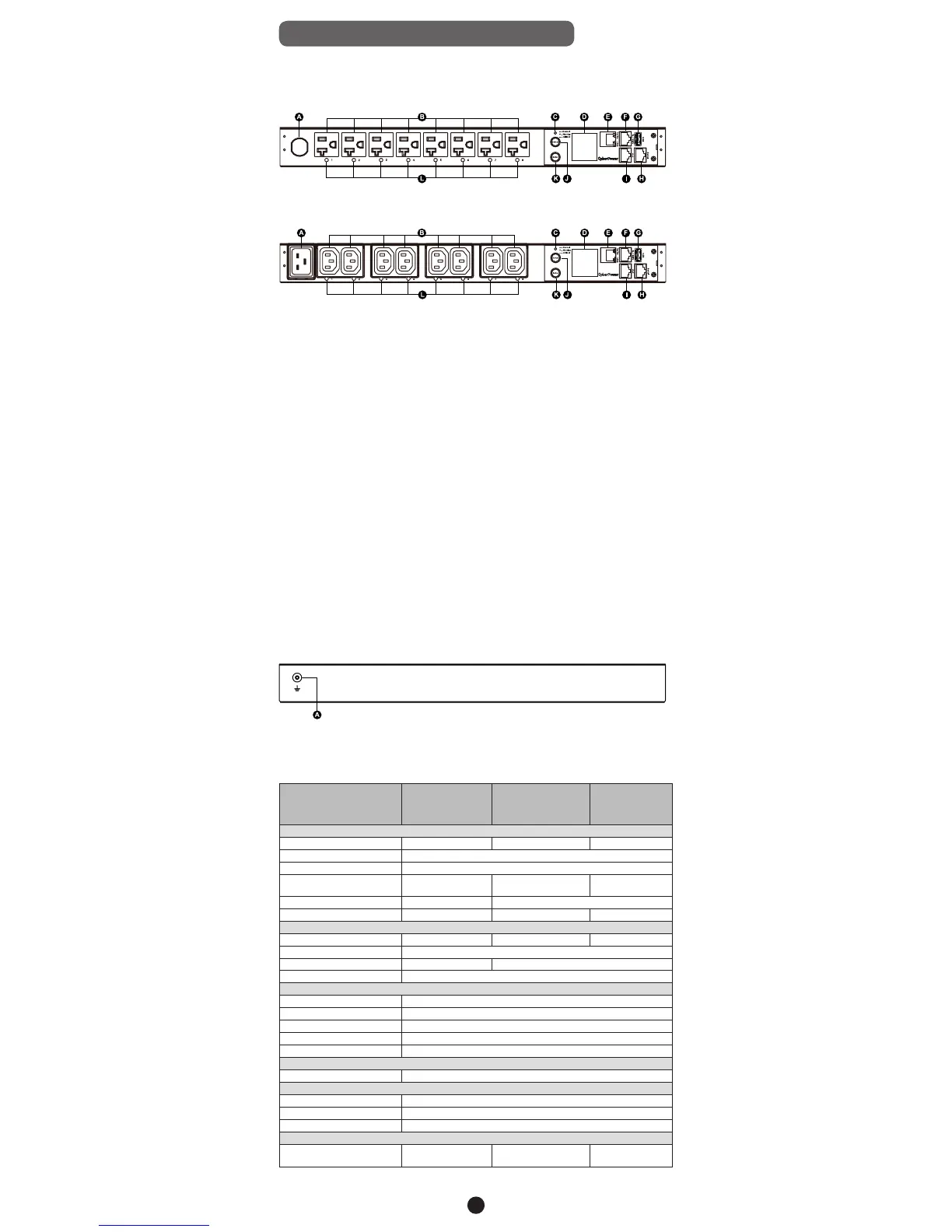

Product Features (1U 20A Models)
Front Panel Description
NEMA Type
IEC Type
A. AC Inlet/ AC Power Cord - Used to connect PDU to utility
power or UPS.
B. AC Output Receptacles - Provides power for connected
equipment.
C. Status Indicator - Indicates the condition of the PDU (eg.
load or environment status).
D. Multifunction LCD Readout - Displays various PDU
information such as power and load condition.
E. Ethernet Port – Used to connect PDU to the network.
F. ENVIROSENSOR/ Daisy Chain (In) Port (RJ45 modular port)
– Used for ENVIROSENSOR or chaining to previous PDU.
G. USB Port - Used to upgrade the firmware via a flash drive.
H. Serial Port (RJ45 modular port) - Used to connect to a PC
and control the PDU locally via SSH/Telnet.
I. Daisy Chain (Out) Port – Used for chaining to next PDU.
J. Select Button - Used to control the LCD screen and toggle
through the available information options.
K. Enter Button - Used to choose selected items, enter to next
level menu or return to previous menu.
L. Outlet Indicator (switched series only) – Indicates if the
outlet is providing power to connected equipment.
Rear Panel Description
A. Ground Stud - Use to ground the PDU.
Technical Specifications
Model Name
PDU81002
PDU71002
PDU41002
PDU31002
PDU81005
PDU71005
PDU41005
PDU31005
PDU81006
PDU71006
PDU41006
PDU31006
Input
Nominal Voltage 100-120V 100-240V 200-240V
Frequency 50/60Hz
Maximum Input Current 16A CE, UL (Derated)
Plug Type
NEMA (L) 5-20P
(Adapter)
IEC 320 C20 NEMA L6-20P
Power Cord Type SR (12 AWG) Socket
Power Cord Length 12 ft/3.65 m 10 ft/3.05 m 12 ft/3.65 m
Output
Nominal Voltage 100-120V 100-240V 200-240V
Maximum Output Current 16A CE, UL (Derated)
Outlet Type NEMA 5-20R IEC C13
Outlet Number 8
Management and Communications
Multifunction LCD Readout Voltage, Frequency, Load, Current, HW/FW Version, Network Information
Software PowerPanel® Business Edition
Networking Yes
Serial Port RJ45
Sensor Capable Optional
Physical
Dimensions (H x W x D) 1.75" x 17.05" x 4.41"/ 44mm x 433mm x 112mm
Environmental
Humidity 0 to 95% Non-condensing
Altitude 11480 ft/3500 m
Temperature 32
o
F to 131
o
F / 0
o
C to 55
o
C
Safety Approvals
Certifications
UL 60950-1,
FCC Class A
UL 60950-1, CE,
FCC Class A
UL 60950-1,
FCC Class A
* All specifications are subject to change without notice.
