CyberPower PDU81001 User Manual

7

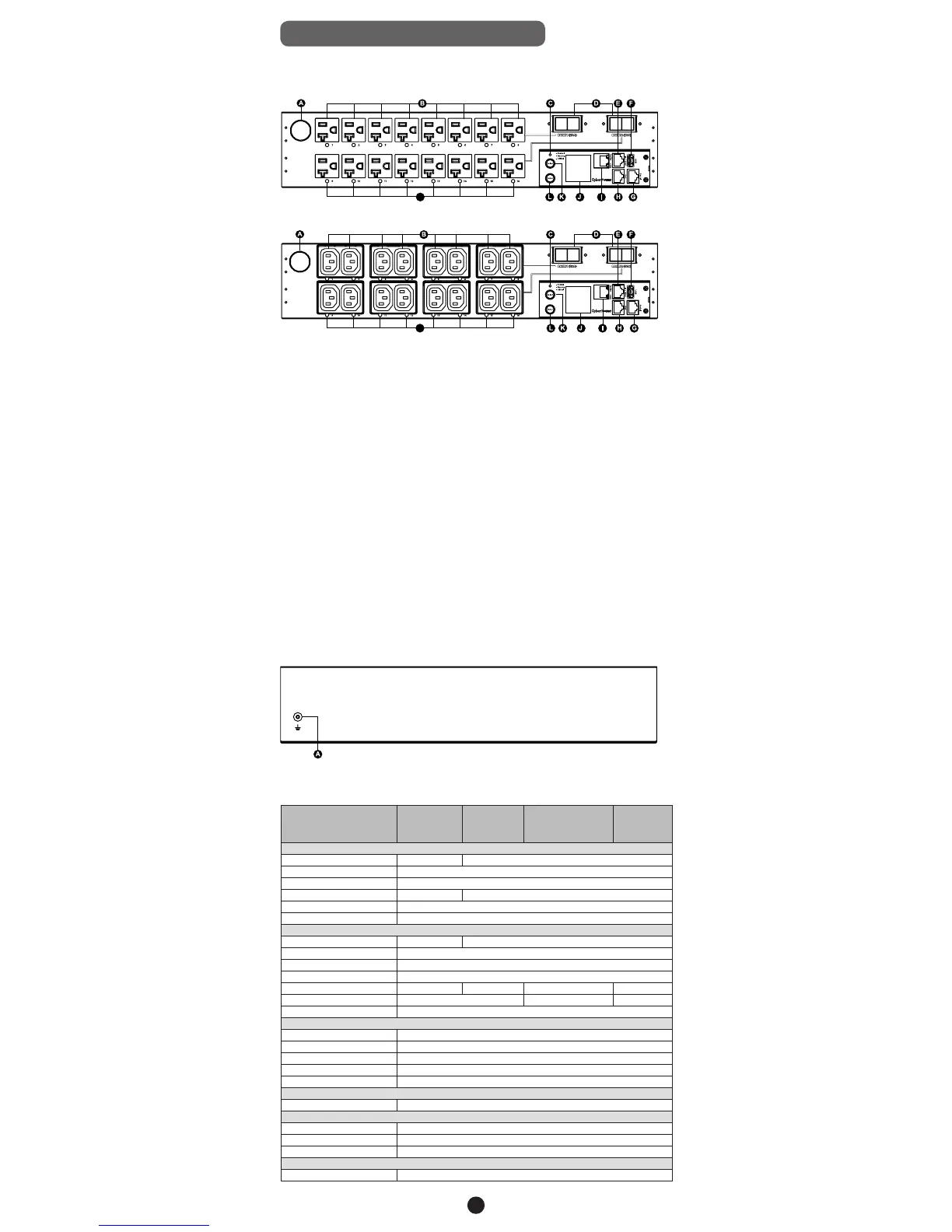

Product Features (2U Models)
Front Panel Description
NEMA Type
IEC Type
Rear Panel Description
M
M
A. AC Inlet/ AC Power Cord - Used to connect PDU to utility
power or UPS.
B. AC Output Receptacles - Provides power for connected
equipment.
C. Status Indicator - Indicates the condition of the PDU (eg.
load or environment status).
D. Circuit Breaker – Provides overload protection.
E. ENVIROSENSOR/ Daisy Chain (In) Port (RJ45 modular port)
– Used for ENVIROSENSOR or chaining to previous PDU.
F. USB Port - Used to upgrade the firmware via a flash drive.
G. Serial Port (RJ45 modular port) - Used to connect to a PC
and control the PDU locally via SSH/Telnet.
H. Daisy Chain (Out) Port – Used for chaining to next PDU.
I. Ethernet Port – Used to connect PDU to the network.
J. Multifunction LCD Readout - Displays various PDU
information such as power and load condition.
K. Select Button - Used to control the LCD screen and toggle
through the available information options.
L. Enter Button - Used to choose selected items, enter to next
level menu or return to previous menu.
M. Outlet Indicator (switched series only) – Indicates if the
outlet is providing power to connected equipment.
A. Ground Stud - Use to ground the PDU.
Technical Specifications
Model Name
PDU81003
PDU71003
PDU41003
PDU31003
PDU81007
PDU71007
PDU41007
PDU31007
PDU81008
PDU71008
PDU41008
PDU31008
PDU81009
PDU71009
PDU41009
PDU31009
Input
Nominal Voltage 100-120V 200-240V
Frequency 50/60Hz
Maximum Input Current 24A UL (Derated)
Plug Type NEMA L5-30P NEMA L6-30P
Power Cord Type SR (10 AWG)
Power Cord Length 12 ft/3.65 m
Output
Nominal Voltage 100-120V 200-240V
Maximum Output Current 24A UL (Derated)
Maximum Output Current 20A (per bank)
Band Number 2
Outlet Type NEMA 5-20R IEC C13 12 IEC C13/ 4 IEC C19 IEC C19
Outlet Number 16 12+4 10
Circuit Breaker Yes
Management and Communications
Multifunction LCD Readout Voltage, Frequency, Load, Current, HW/FW Version, Network Information
Software PowerPanel® Business Edition
Networking Yes
Serial Port RJ45
Sensor Capable Optional
Physical
Dimensions (H x W x D) 3.5" x 17.05" x 4.41"/ 88mm x 433mm x 112mm
Environmental
Humidity 0 to 95% Non-condensing
Altitude 11480 ft/3500 m
Temperature 32
o
F to 113
o
F / 0
o
C to 45
o
C
Safety Approvals
Certifications UL 60950-1, FCC Class A
* All specifications are subject to change without notice.
