CYBEX VR3 Lateral Raise - Page 40

Cybex VR3 12160 Lat Raise Owner’s Manual
Service
Page 6-10

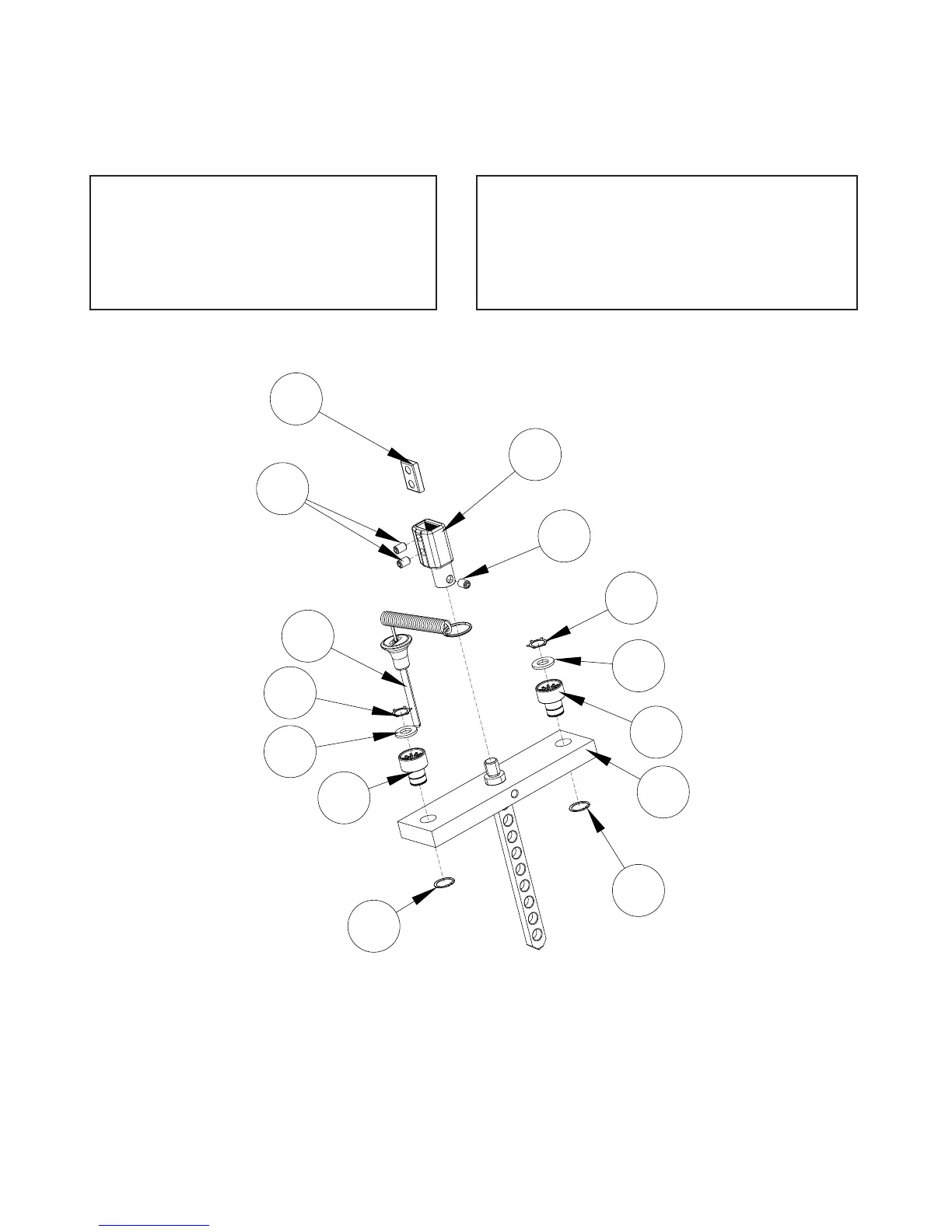

ITEM QTY PART NO. DESCRIPTION
1 1 11040-216 Belt Clamp
2 1 11040-301 Belt Clamp Insert
3 2 13000-364 Bearing, Flange
4 1 4700-265 Top Weight 10- 3 x 12
5 1 BH030207 Pin, Weight Selector
ITEM QTY PART NO. DESCRIPTION
6 2 BR030206 Ring, Retaining
7 2 BR030220 Retaining Ring 1.250 Internal
8 2 HS720004 Washer, Felt
9 3 HY740000 Set Screw
10 135” GB000202 Weight Stack Belt .95 Wide
(Not Shown)
12460 VR3 Leg Extension
Graduated Stack Assembly Lat Raise
12301-006 Assembly
2
9
1
9
7
8
3
4
6
6
3
8
7
5
TORQUE SET SCREWS
300-350 IN./LBS
