9

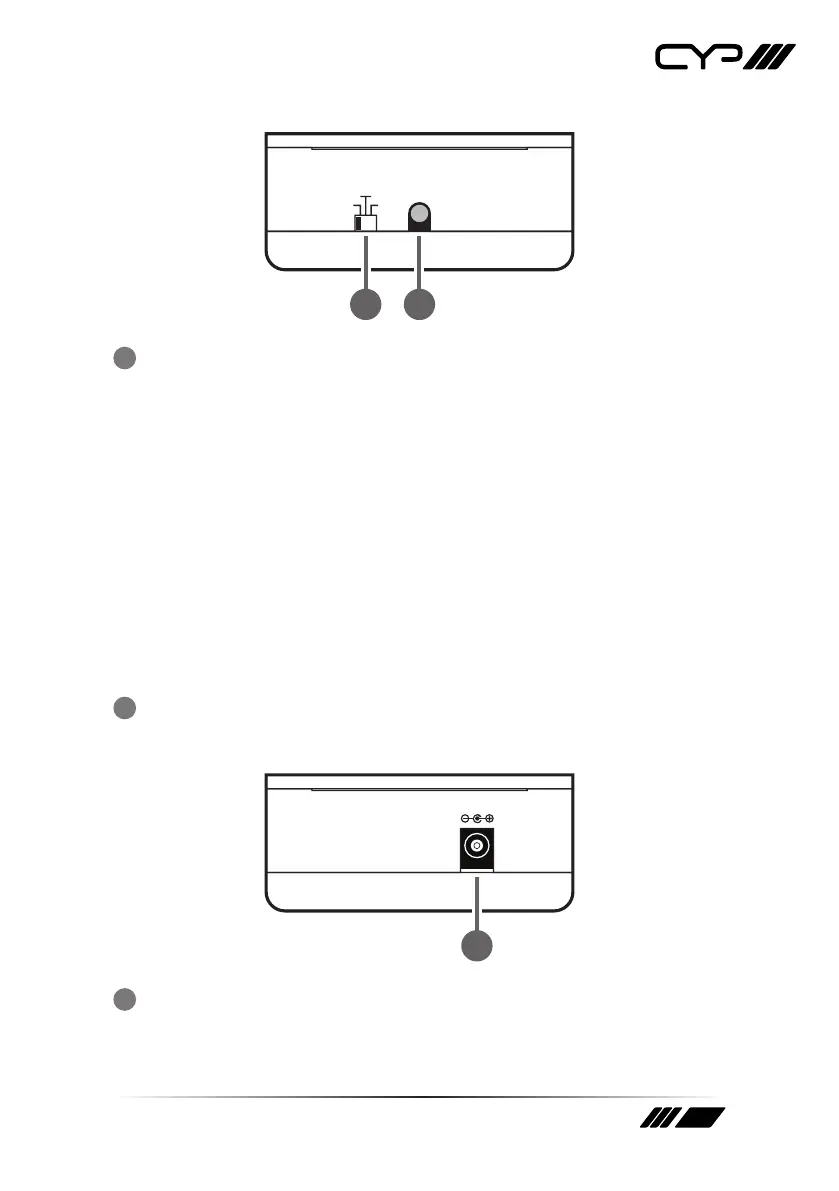

6.2 Right Panel
Bitstream
TV
2CH
LPCM
Power
1 2
1
TV/Bitstream/2CH LPCM: This switch allows users to select the
source's audio EDID.
TV Mode: Switch to TV mode for the HDMI source to output audio
per the EDID of connected TV or AV receiver, supports up to LPCM 7.1
channels.
Bitstream Mode: Switch to Bitstream mode for the HDMI source
to output Bitstream audio per the built-in EDID, supports up to
compressed audio 5.1 channels.
2CH LPCM Mode: Switch to 2CH LPCM mode for the HDMI source to
output LPCM 2 channels audio per the built-in EDID.
Note: Depending on the input audio format, the unit may not output
audio through all output port., For example, the L/R analogue output port
will have no audio when the input audio format is other than LPCM 2CH.
2
Power: Switches the unit ON or puts the device into standby mode.
6.3 Left Panel
DC 5V
1
1
DC 5V: Connect to the 5V DC power supply into the unit and plug the
adaptor to an AC wall outlet.
