Specifications
* Input: Analog YPbPr on 3 RCA connectors
* Input signal:
Y : 1 Vp-p 75 ohm,
Pb/Pr: 0.7 Vp-p, 75 ohm
* Output: DVI-I connector
* Output signal: Digital RGB or YPbPr data bitstream
* Compliant with DVI Rev 1.0
* Operation frequency: up to 165MHz
* Input/ Output resolution:
PCVGA@60VGA@72VGA@75VGA@85
SVGA@60SVGA@72SVGA@75SVGA@85
XGA@60XGA@70XGA@75XGA@85
SXGA@60SXGA@75SXGA@85UXGA@60
1152@701152@751152@85
HD/RGB480i@60576i@50480p@60576p@50720p@60
720p@501080i@601080i@501080p@60
1080p@501080p@301080p@251080p@24
* Dimension (WxHxD)76 * 30 * 105mm
* Power5V 500mA~2A Center-positive

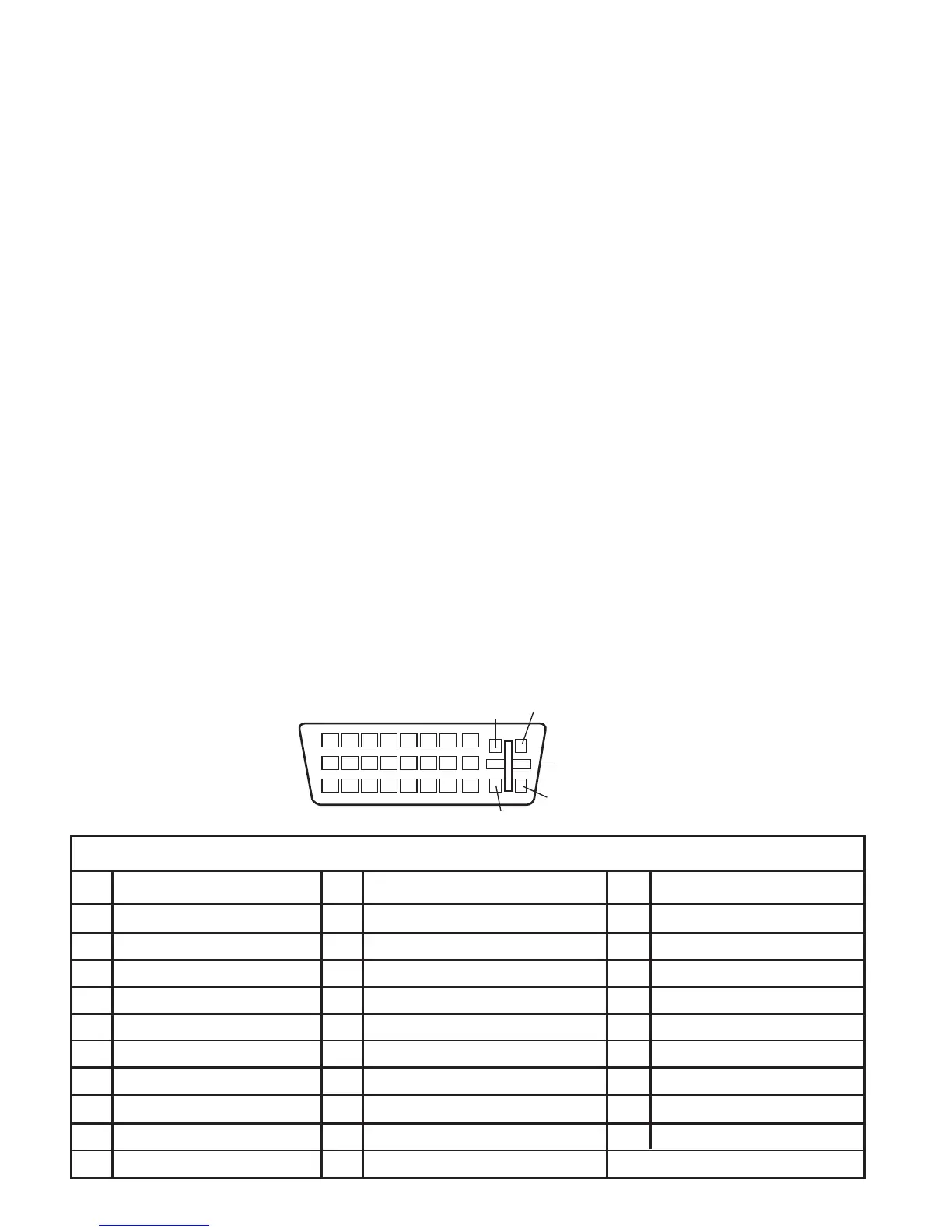

DVI-I Pin Configuration
1 8 C1 C2
C5
C4
C3
9
17 24
Combined Analog and Digital Connector Pin Assignments
Pin Signal Assignment Pin Signal Assignment
1
2
3
4
5
6
7
8
C1
C4
T.M.D.S Data2-
T.M.D.S. Data2+
T.M.D.S. Data2/4 Shield
T.M.D.S. Data4-
T.M.D.S. Data4+
DDC Clock
DDC Data
Analog Vertical Sync
Analog Red
Analog Horizontal Sync
9
10
11
12
13
14
15
16
C2
C5
T.M.D.S Data1-
T.M.D.S. Data1+
T.M.D.S. Data1/3 Shield
T.M.D.S. Data3-
T.M.D.S. Data3+
+5V Power
Ground
(Return for +5V, Hsync, and Vsync)
Hot Plug Detect
Analog Green
Analog Ground
(Analog R,G,&B return)
Pin Signal Assignment
17
18
19
20
21
22
23
24
C3
T.M.D.S Data0-
T.M.D.S. Data0+
T.M.D.S. Data0/5 Shield
T.M.D.S. Data5-
T.M.D.S. Data5+
T.M.D.S. Clock Shield
T.M.D.S. Clock+
T.M.D.S. Clock-
Analog Blue
DVI-Integrated(DVI-I): Supports both analog and digital connections to the display.
This 29-pin connector can carry single or dual-link all-digital video/data signals
on 24 pins and uses 5 pins to carry analog video/data signals and ground.
