1
2
3
4

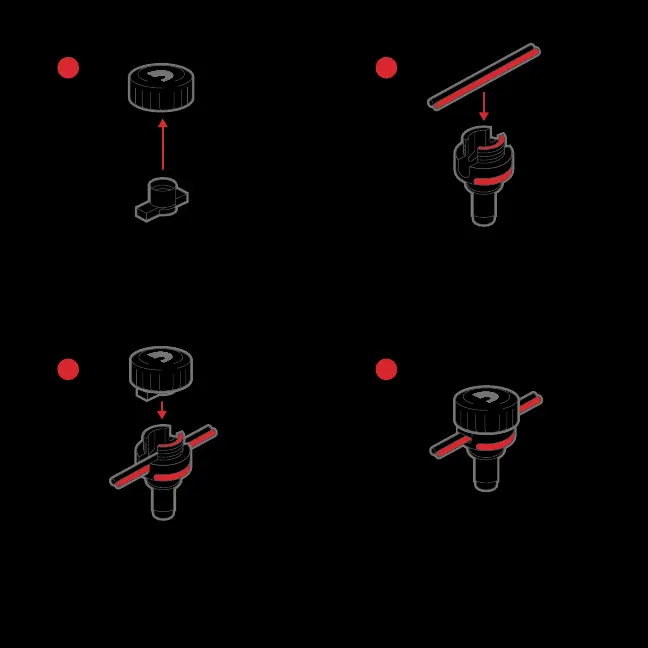

Assemble the pass-through insert by
pushing insert into the cap of the plug.
Insert the cable into the plug body.
Be careful to line up the red wire
with the red indicator on the plug.
Screw the cap down firmly clockwise
until fully tightened and flush with
the plug body.
Ensure the red wire is aligned
with the red indicators on the
plug body and that the cap has
not been cross-threaded.
