D-Link DCS-5010L Quick Installation Guide


ENGLISH
Mounting the Camera

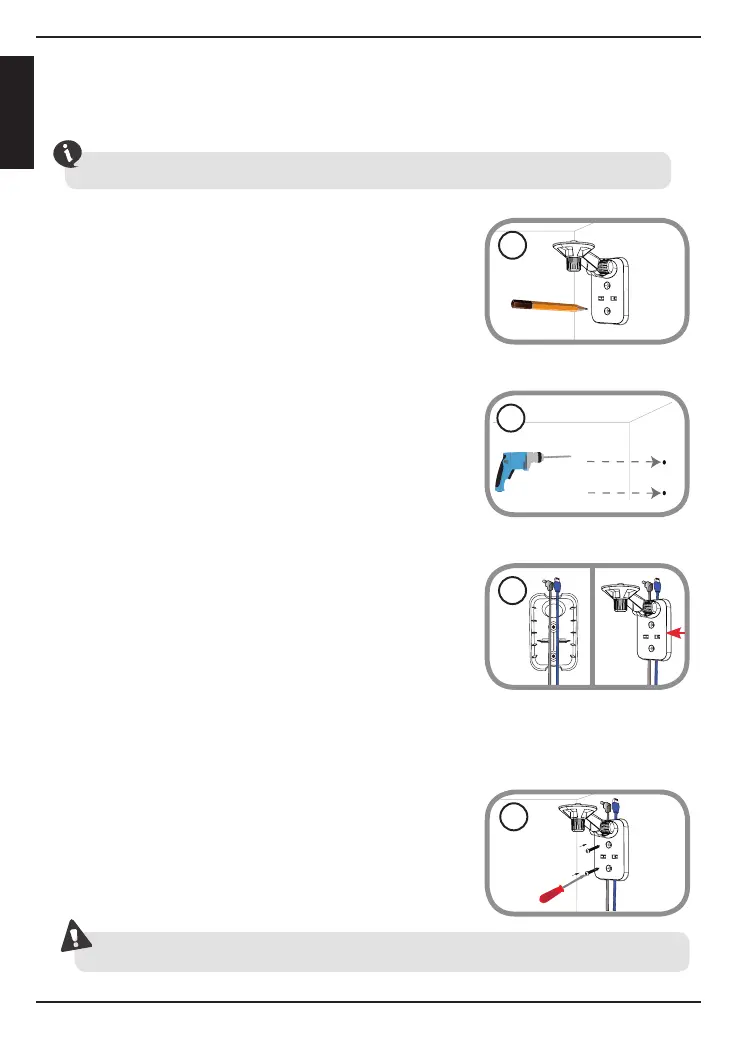

To mount your camera on a wall or ceiling, please follow the steps below.
It is suggested that you congure the camera before mounting.
Use appropriate tools to drill two holes the same
diameter as the plastic anchors. After drilling the holes,
insert the plastic anchors to support the screws.
If desired, the power and Ethernet cables can be
concealed behind the mounting bracket. Run the
cables through the back of the mounting bracket,
securing them with the built-in guides. Be sure to
leave enough cable length protruding from the top
to allow connection to the camera.
Place the mounting bracket where you want to
position the camera and use a pencil to mark the
holes.
Do not overtighten the screws as this may crack the mounting bracket.
Fasten the mounting bracket to the wall using the
screws provided.
2
3
4
1

D-Link DCS-5010L Specifications

General

Maximum resolution	640 x 480 pixels
Supported video modes	-
Video compression formats	H.264, M-JPEG
Supported graphics resolutions	160 x 112, 320 x 240, 640 x 480 (VGA)
Pan range	-170 - 170 °
Tilt angle range	-25 - 95 °
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/5 \
Optical zoom	- x
Fixed focal length	2.2 mm
Motion sensor	Yes
Security algorithms	WPS
Built-in HDD	No
LED type	IR
Night vision distance	8.0 m
Certification	CE, CE LVD, FCC, C-Tick
Placement supported	Indoor
Connectivity technology	Wireless
Form factor	Dome
Mounting type	Desk
Product color	Black
Ethernet LAN (RJ-45) ports	1
Audio formats supported	PCM
Wi-Fi standards	Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Supported network protocols	IPV4, ARP, TCP, UDP, ICMP, DHCP Client, NTP Client (D-Link), FTP Client, DNS Client, HTTP Server, DDNS Client (D-Link), PPPoE, SMTP Client, LLTD
Power consumption (typical)	8.64 W
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 85 %
Harmonized System (HS) code	85258900

Weight and Dimensions

Depth	102.35 mm
Width	101.27 mm
Height	133.6 mm
Weight	292.4 g
