D-Link DCS-8330LH

DCS-8330LH
6
ENGLISH

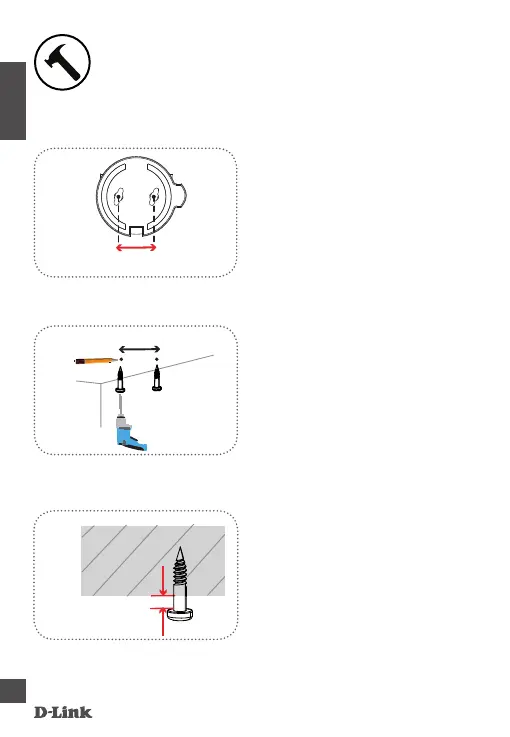

Use a pencil to make two marks
33 mm apart. Use a 6mm drill bit
to drill two 3mm deep holes over
the pencil marks. Hammer in the
plastic wall anchors to support the
screws.
Twist the screws into the anchors,
leaving the tops of the screws
exposed from the surface. Do not
over tighten the screws.
Locate the two mounting holes on
the bottom, noting that they are
33 mm apart.
Mounting
2 /
3 /
1 /
33 mm
2.6~3.0mm
33 mm
33 mm
2.6~3.0mm
33 mm
33 mm
2.6~3.0mm
33 mm
