DGS-3100 Series Gigabit Stackable Managed Switch User Manual
188

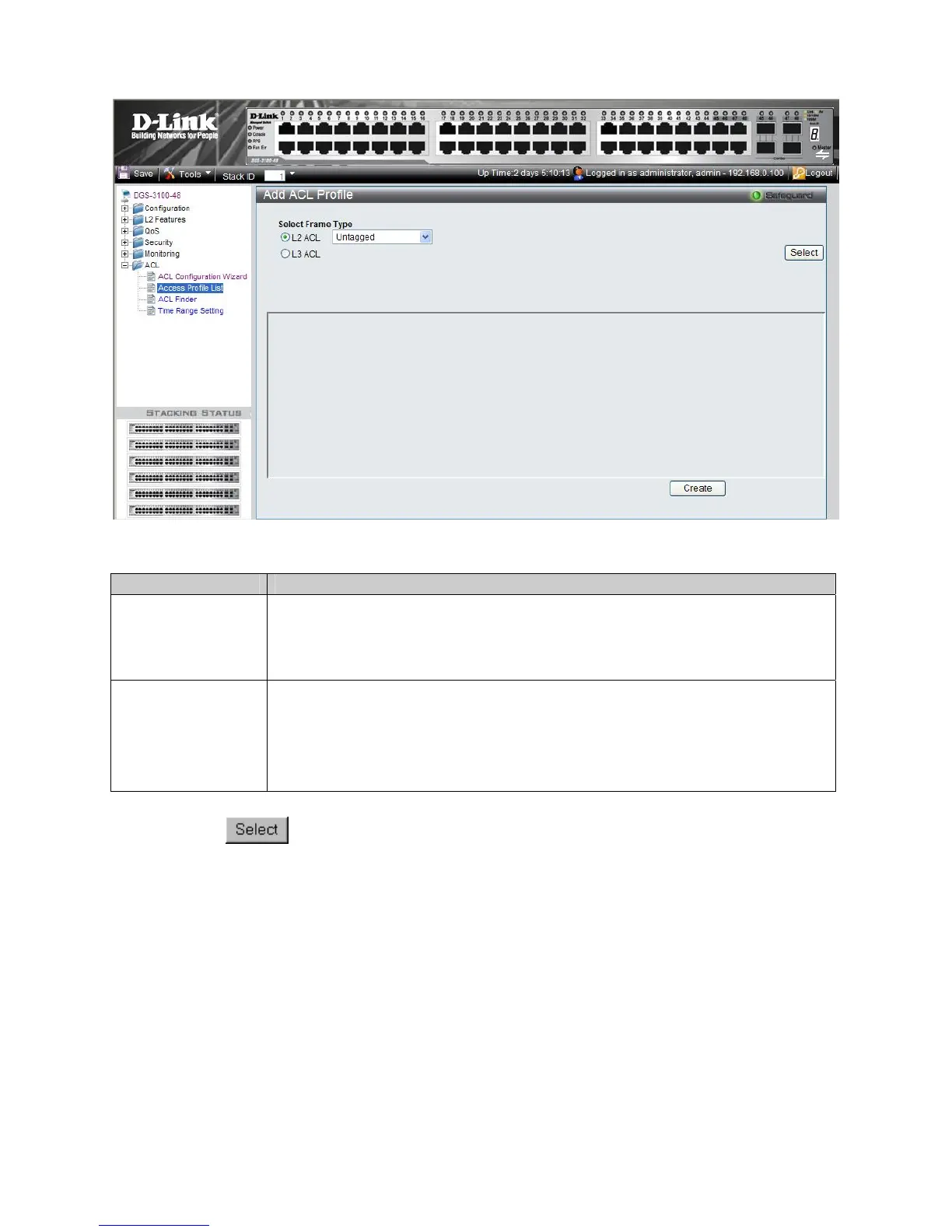

Figure 0-3. Add ACL Profile Page
The Add ACL Profile Page contains the following fields:
Field Description
L2 ACL
Defines the ACL profile Layer 2 protocols. The possible values are:
Tagged — Defines the profile Layer 2 to match 802.1Q fields in the Layer 2 header.
Untagged — Defines the profile Layer 2 to check the Layer 2 header without the 802.1Q
fields .
L3 ACL
Defines the ACL profile Layer 3 protocols. The possible fields are:
ICMP — Specifies ICMP as the Layer 4 protocol the the access profile checks.
IGMP — Specifies IGMP as the Layer 4 protocol the the access profile checks
TCP — Specifies TCP as the Layer 4 protocol the the access profile checks.
UDP — Specifies UDP as the Layer 4 protocol the the access profile checks.
3. Define the L2 ACL or L3 ACL fields.
4. Click
The Add ACL Profile Page updates accordingly, enabling selection of the packet field to
create filtering masks.
