xStack DGS-3400 Series Fast Ethernet Switch
Installing the Switch without the Rack
First, attach the rubber feet included with the Switch if installing on a desktop or shelf. Attach these cushioning feet on the
bottom at each corner of the device. Allow enough ventilation space between the Switch and any other objects in the
vicinity.

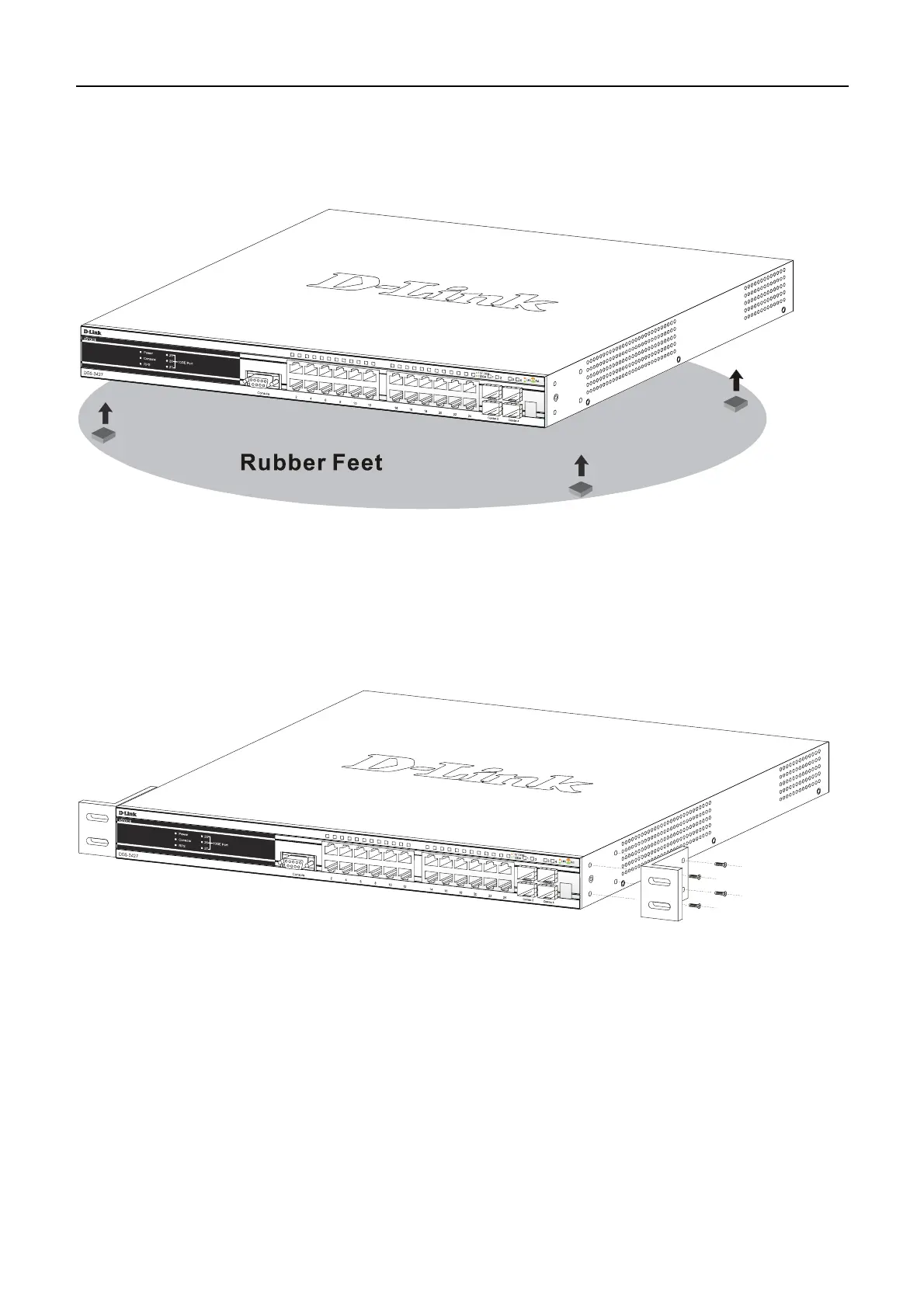

Figure 2- 12. Prepare Switch for installation on a desktop or shelf
Installing the Switch in a Rack
The Switch can be mounted in a standard 19" rack. Use the following diagrams as a guide.
Figure 2- 13. Fasten mounting brackets to Switch
Fasten the mounting brackets to the Switch using the screws provided. With the brackets attached securely, the Switch can
be mounted in a standard rack as shown below.
10
