13D-Link DIR-2660 User Manual
Section 3 - Installation

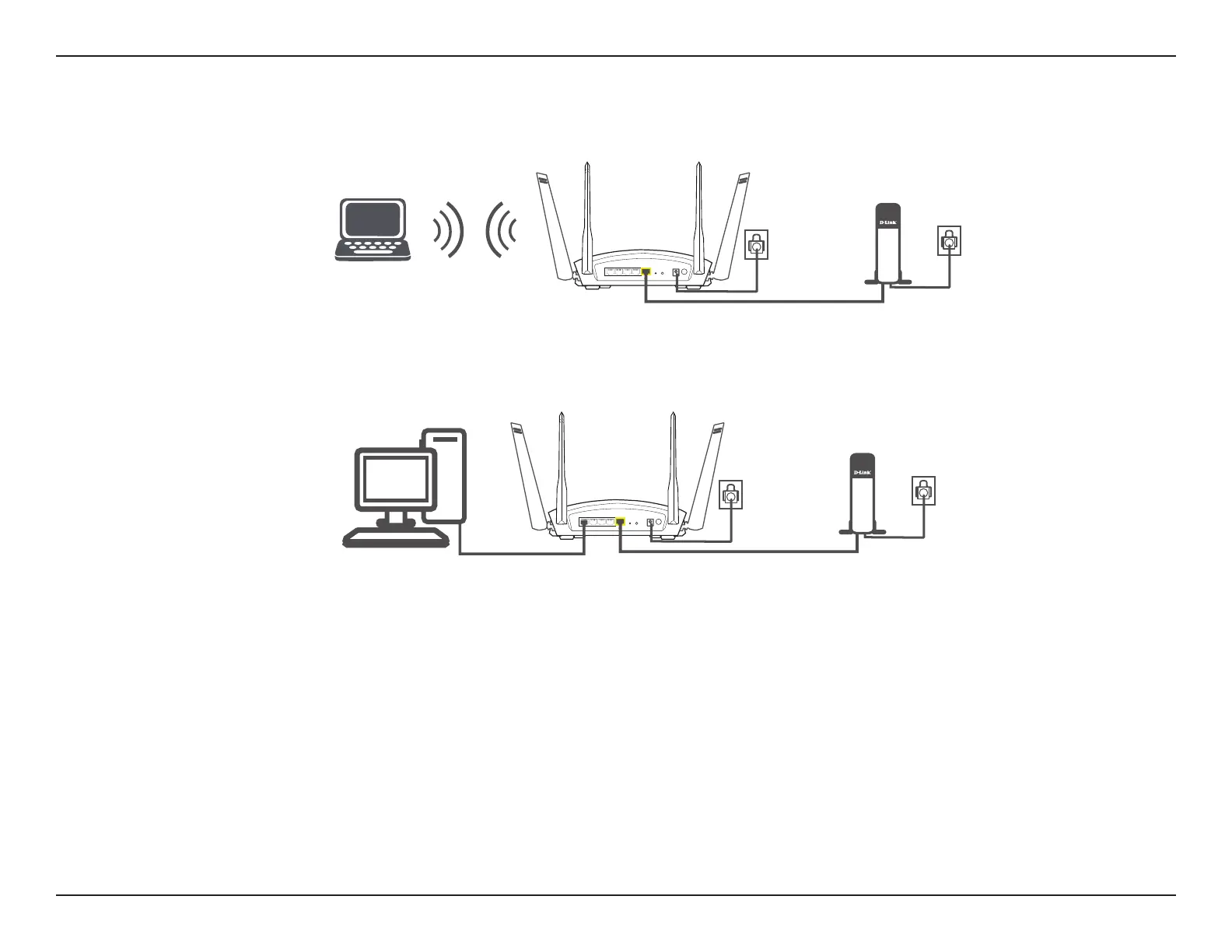

If you are conguring the DIR-2660 from a PC with a wired Ethernet connection, plug one end of an Ethernet cable
into the port labeled 1 on the back of the router, and the other end into the Ethernet port on your computer.
7. If you are conguring the DIR-2660 wirelessly from a PC, connect to a Wi-Fi network. You can also nd the Wi-Fi
network names and passwords printed on the label attached to the bottom your router.
8. If you are connecting to a broadband service that uses a dynamic connection (not PPPoE), you may be online already.
Try opening a web browser and connecting to a website. If the website does not load, proceed to Completing Setup
on page 14.
4 3 2 1 INTERNETRR ES ET WPS
12V...2A
DCIN
POWER
DIR-2660
Modem
4 3 2 1 INTERNETRR ES ET WPS
12V...2A
DCIN
POWER
DIR-2660
Modem
