D-Link DWL-2600AP Quick Installation Guide

D-Link DWL-2600AP Quick Install Guide  5
ENGLISH

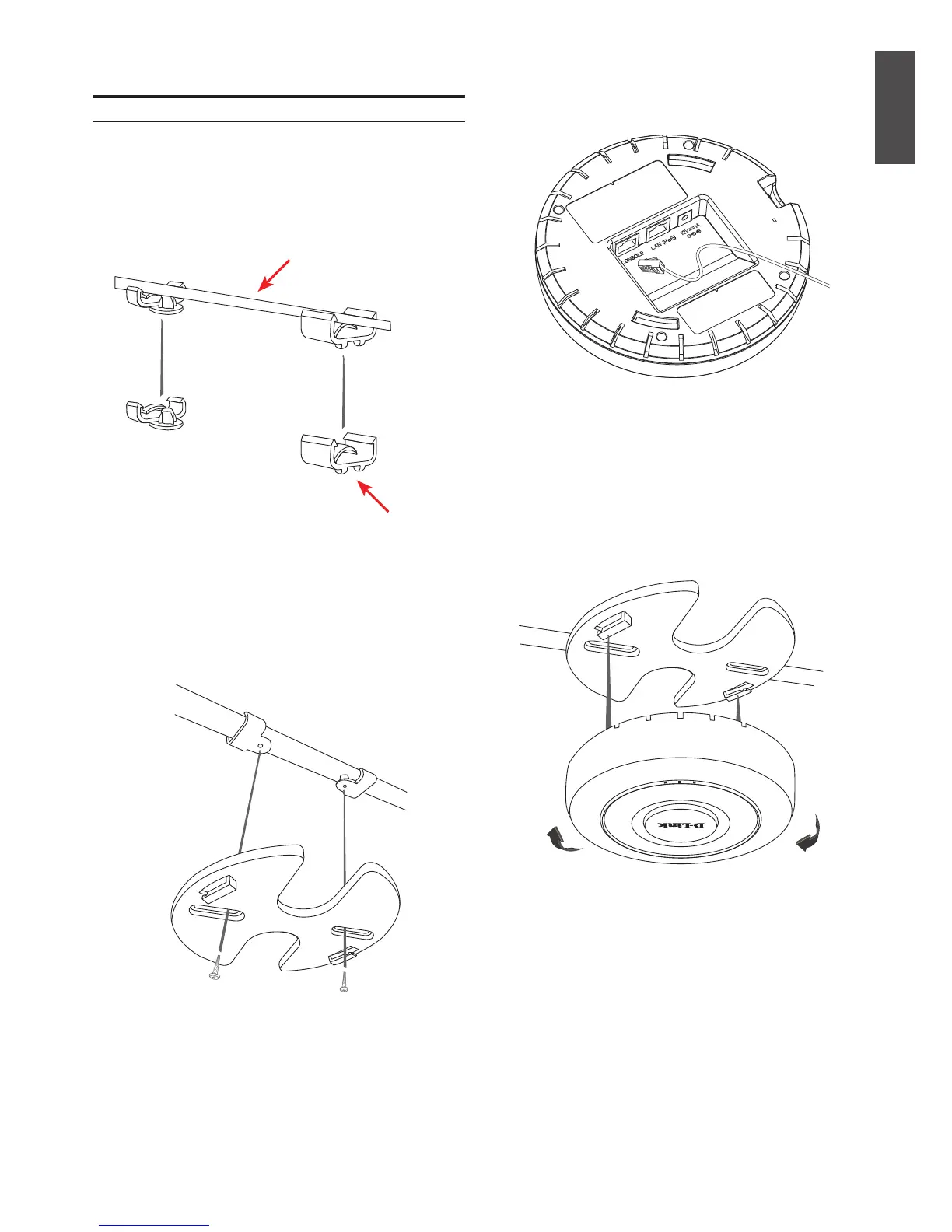

Mounting Using Ceiling Bracket
3. Plug the CAT 5 cable into the LAN port on
the access point.
1. Clip two ceiling brackets on the ceiling
panels. Make sure both bracket are
parallel.
2. Use the provided screws to attach the
mounting ring to the ceiling bracket.
4. Placed the DWL-2600AP’s male bracket
in the mounting ring’s female bracket.
Rotate the product clockwise to lock it in
position.
Installation
POWER
LAN
2.4GHz
POWER
LAN
2.4GHz
POWER
LAN
2.4GHz
POWER
LAN
2.4GHz
POWER
LAN
2.4GHz
POWER
LAN
2.4GHz
Ceiling bracket
Ceiling crossbar

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
