D-Link DWL-8600AP

DWL-8600AP Install Guide 9

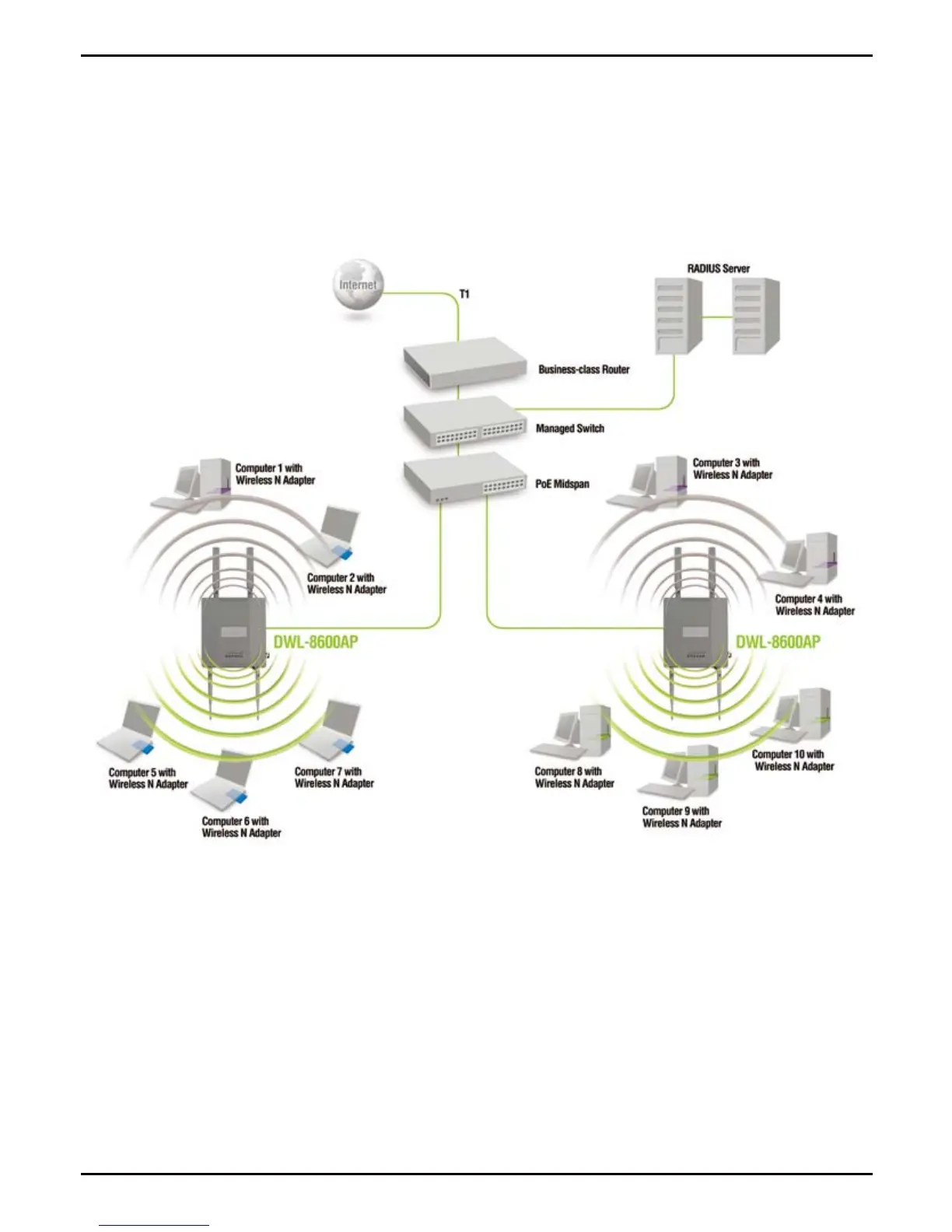

WhenyouhavecompletedthestepsinthisInstallationGuideandcongured
yourforyournetwork,yournetworkshouldlooksimilartothis:
Your Setup is Complete
*MaximumWirelesssignalratederivedfromIEEE802.11n(draft2.0)specications.Actualdata
throughputwillvary.Networkconditionsandenvironmentalfactors,includingvolumeofnetwork
trafc, building materials and construction, and network overhead lower actual data throughput
rate.
