D-Link Exo AX DIR-X5460 User Manual

27D-Link DIR-X5460 User Manual
Section 3 - Conguration

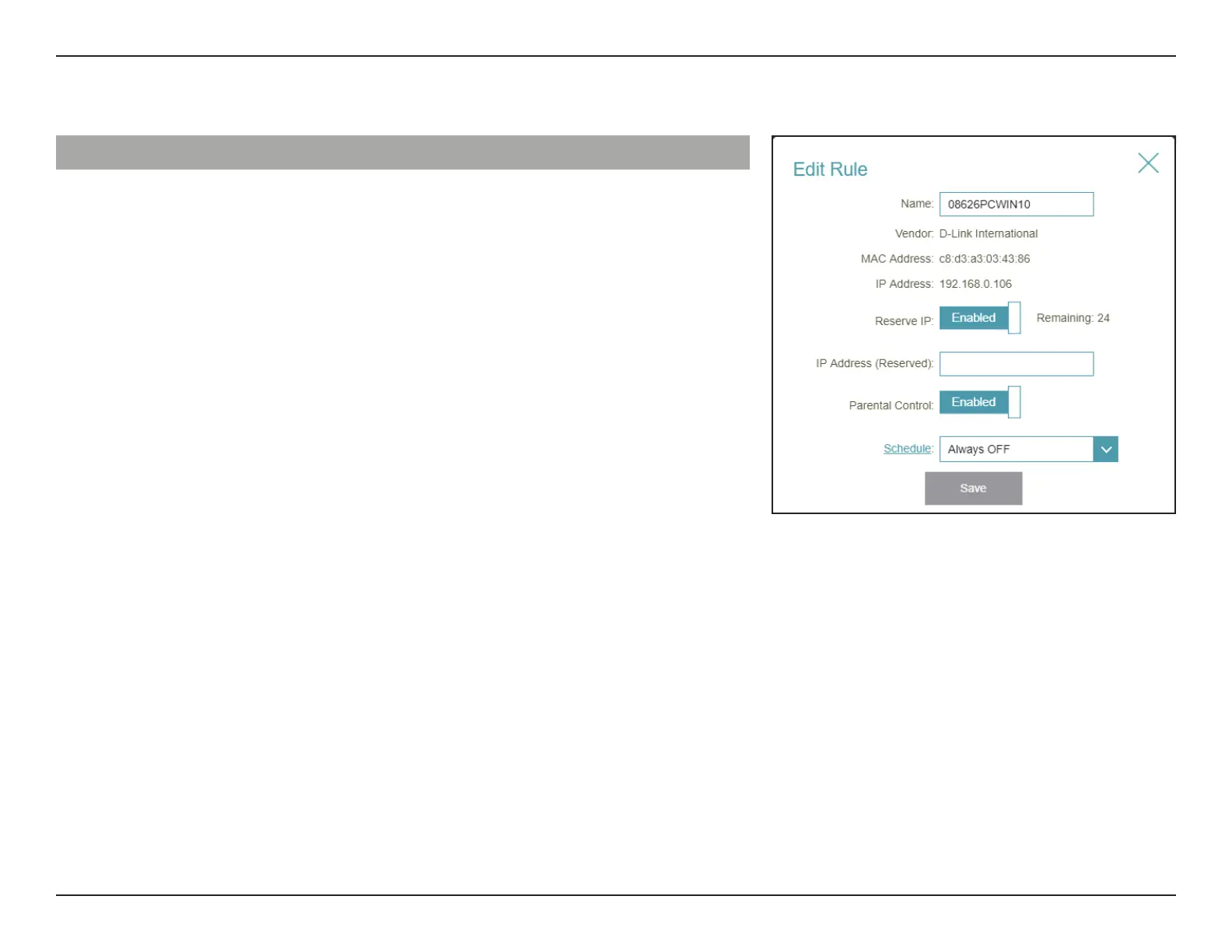

Edit Rule
Name Enter a custom name for this client.
Vendor Displays the vendor of the client.
MAC Address Displays the MAC address of the client.
IP Address Displays the current IP address of the client.
Reserve IP Enable to reserve an IP address for the client.
IP Address (Reserved) Specify an IP address for the router's DHCP server to assign.
Parental Control Enable Parental Control for the client to specify whether it is
allowed network access.
Schedule Use the drop-down menu to select the time schedule that
the Parental Controls will be enabled for. The schedule may
be set to Always OFF meaning that the client will always
be blocked from accessing the network, or you can create
your own schedules in the Schedules section to specify the
times that the client is allowed to access the network. Refer
to Time & Schedule - Schedule on page 85 for more
information.
Click Save when you are done.

D-Link Exo AX DIR-X5460 Specifications

General

DSL WAN	-
Ethernet WAN	Yes
SIM card slot	No
Frequency range	2.4 - 5 GHz
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB ports quantity	2
Ethernet LAN (RJ-45) ports	4
Security algorithms	128-bit AES, WPS
Flash memory	128 MB
Certification	FCC, IC, NCC, CE, RCM
Internal memory	512 MB
Minimum system requirements	Windows 10/8.1/8/7/Vista or MAC OS X 10.6 or higher Supports Internet Explorer 10, Firefox 28.0, Chrome 28.0, Safari 6.0, and up Network Interface Card Cable/DSL modem or other Internet service provider equipment with Ethernet port
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista
Product color	Black
LED indicators	Network, Power, USB
Output current	2 A
Output voltage	12 V
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	338.8 mm
Width	241.35 mm
Height	211.32 mm
Weight	732 g
