Technical data
Dimensions (WxHxD) 44x90x24 mm
Temperature range 0 to 50°C
Indications 6x LEDs
Outputs 1x triac output 0.75A, 24-230VAC
5x relay outputs max 6A resistive load per relay output at 230VAC or 2A
at 24VDC
Degree of protection e circuit board is intended for internal installation in an enclosure
Safety instructions
See operating manual for automatic control unit EP104.
General description
Add-in card to obtain 6x outputs on EP104. All the outputs have programmable function. Output functions are set on
EP104.
If output o4 is used, the supply voltage must be of AC type, alternating current, as this output is of the triac type. Note that
i2 is common to o3 and o4.
e status of the outputs indicated by LEDs installed at the top of the card. A lit LED indicates closed function.
Installation
1. Discharge any static charge in your body by touching an earthed connection before starting installation.
2. Disconnect power to EP104
3. Screw the DB407 board into place on the spacers on the EP104 using two M4x6 screws.

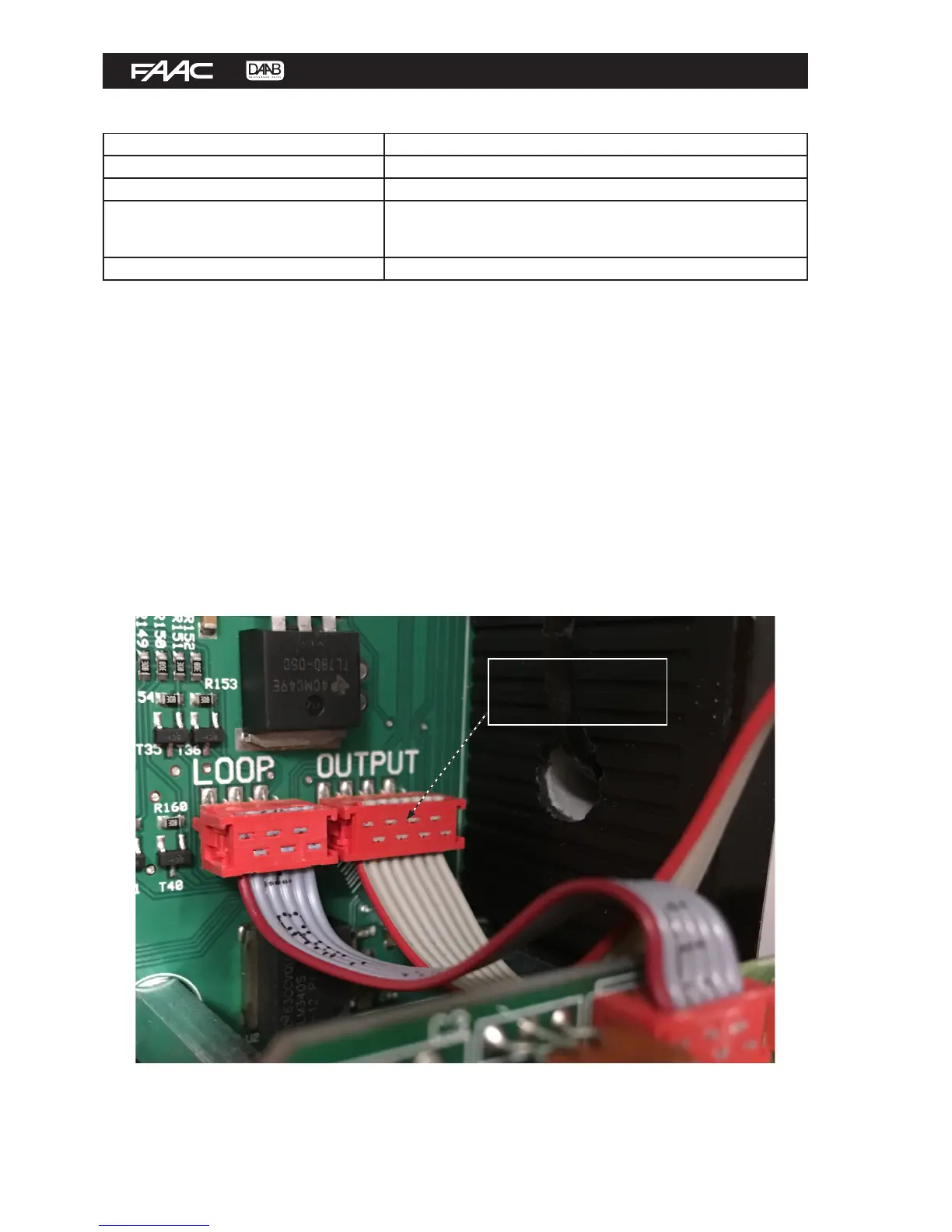

4. Connect cable to "OUTPUT" cable.
5. Connect the board as described in Connection.
Contact for
connection of DB407
