Dacor EF36BNDFSS Instruction Sheet

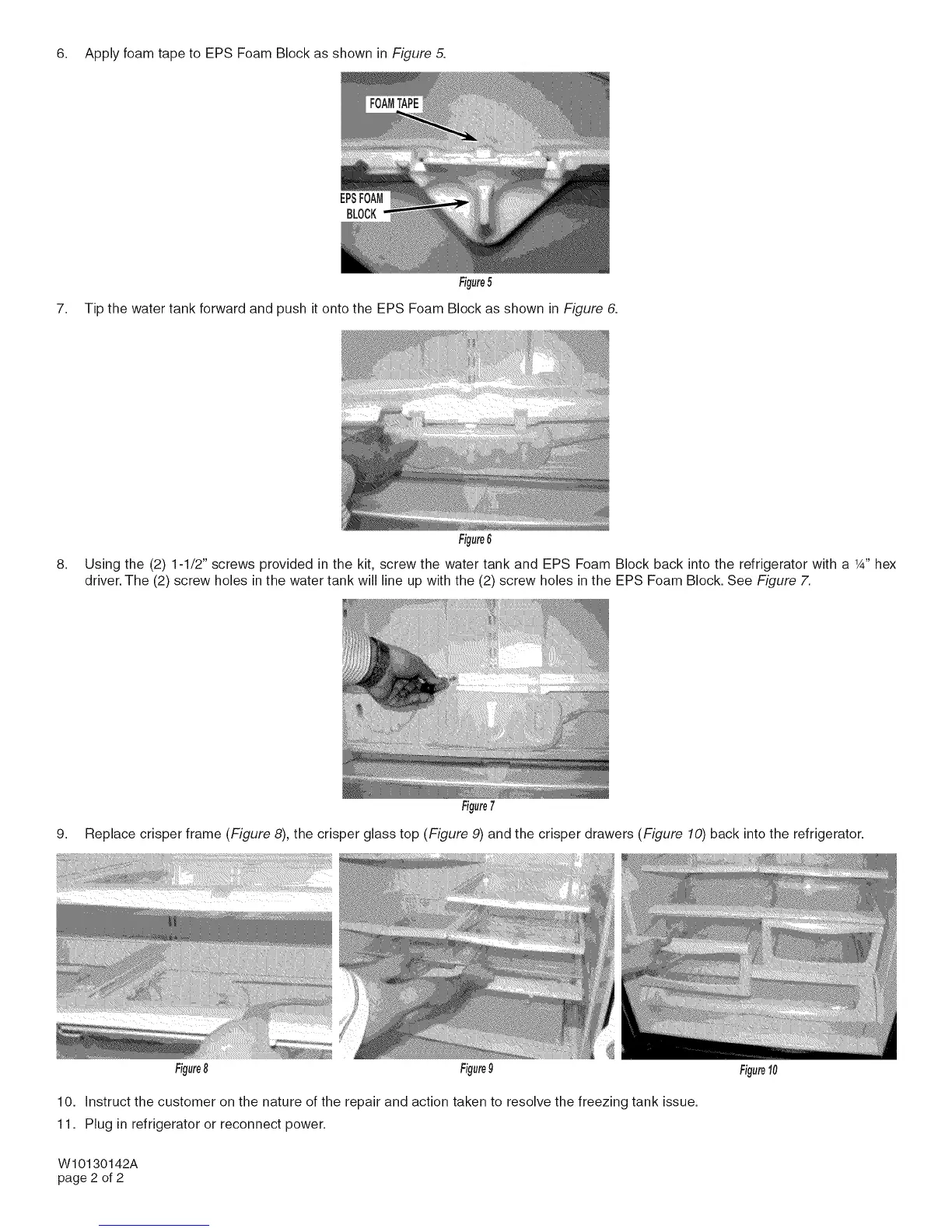

6. Apply foam tape to EPS Foam Block as shown in Figure 5.
EPSFOAM
BLOCK
_5
7. Tip the water tank forward and push it onto the EPS Foam Block as shown in Figure 6.
_u_6
8. Using the (2) 1-1/2" screws provided in the kit, screw the water tank and EPS Foam Block back into the refrigerator with a W' hex
driver. The (2) screw holes in the water tank will line up with the (2) screw holes in the EPS Foam Block. See Figure 7.
_7
9. Replace crisper frame (Figure 8), the crisper glass top (Figure 9) and the crisper drawers (Figure 10) back into the refrigerator.
Figure8 Figure9 Figure10
10. Instruct the customer on the nature of the repair and action taken to resolve the freezing tank issue.
11. Plug in refrigerator or reconnect power.
W10130142A
page 2 of 2
