LIVE series
ENIT
LIVE10 - 10A - 12 - 12A - 15 - 15A
LIVE8 - 8A
Fig.2
Fig.3

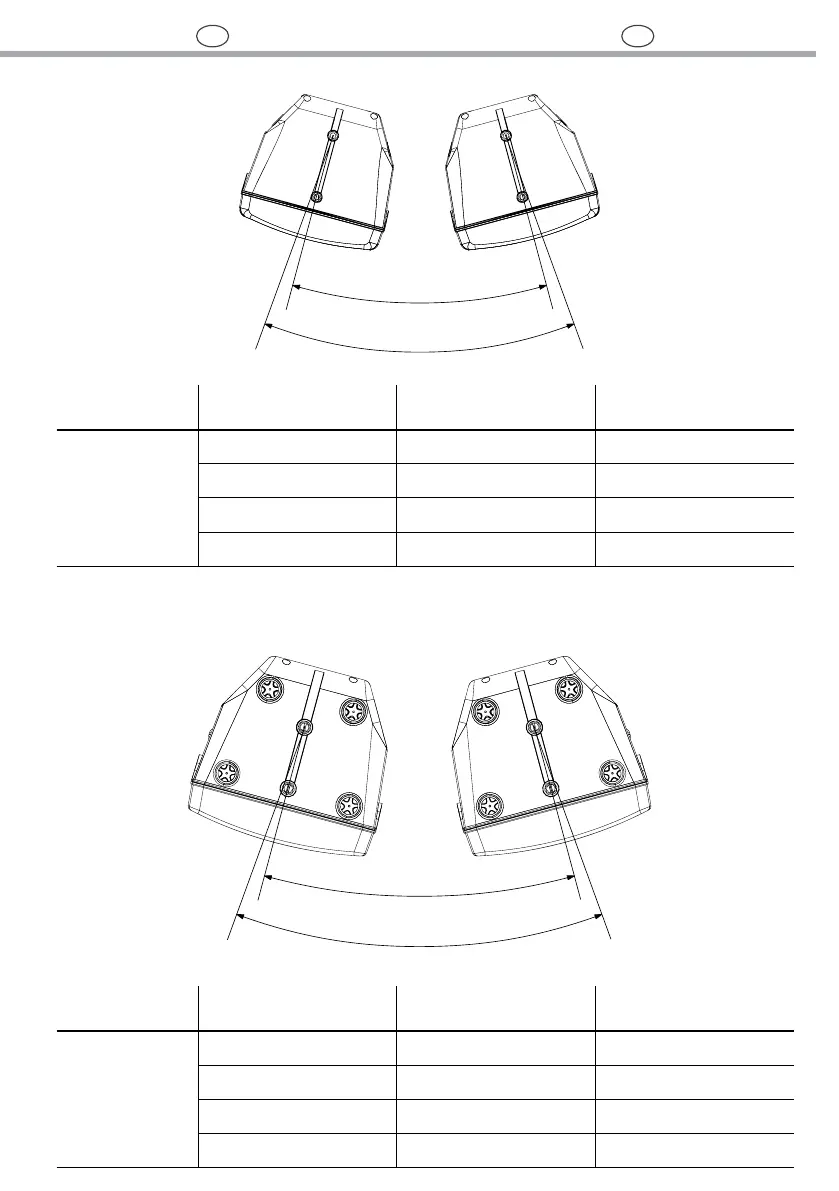

LOUDSPEAKERS LOUDSPEAKERS POSITION HORN POSITION (H) TOTAL COVERAGE (HxV)
LIVE8 - 8A
30° 90° 120° x 60°
40° 90° 130° x 60°
30° 60° 90° x 90°
40° 60° 100° x 90°
LOUDSPEAKERS LOUDSPEAKERS POSITION HORN POSITION (H) TOTAL COVERAGE (HxV)
LIVE10 - 10A - 12 -
12A - 15 - 15A
30° 80° 110° x 60°
40° 80° 120° x 60°
30° 60° 90° x 80°
40° 60° 100° x 80°
30˚
40˚
30˚
40˚
