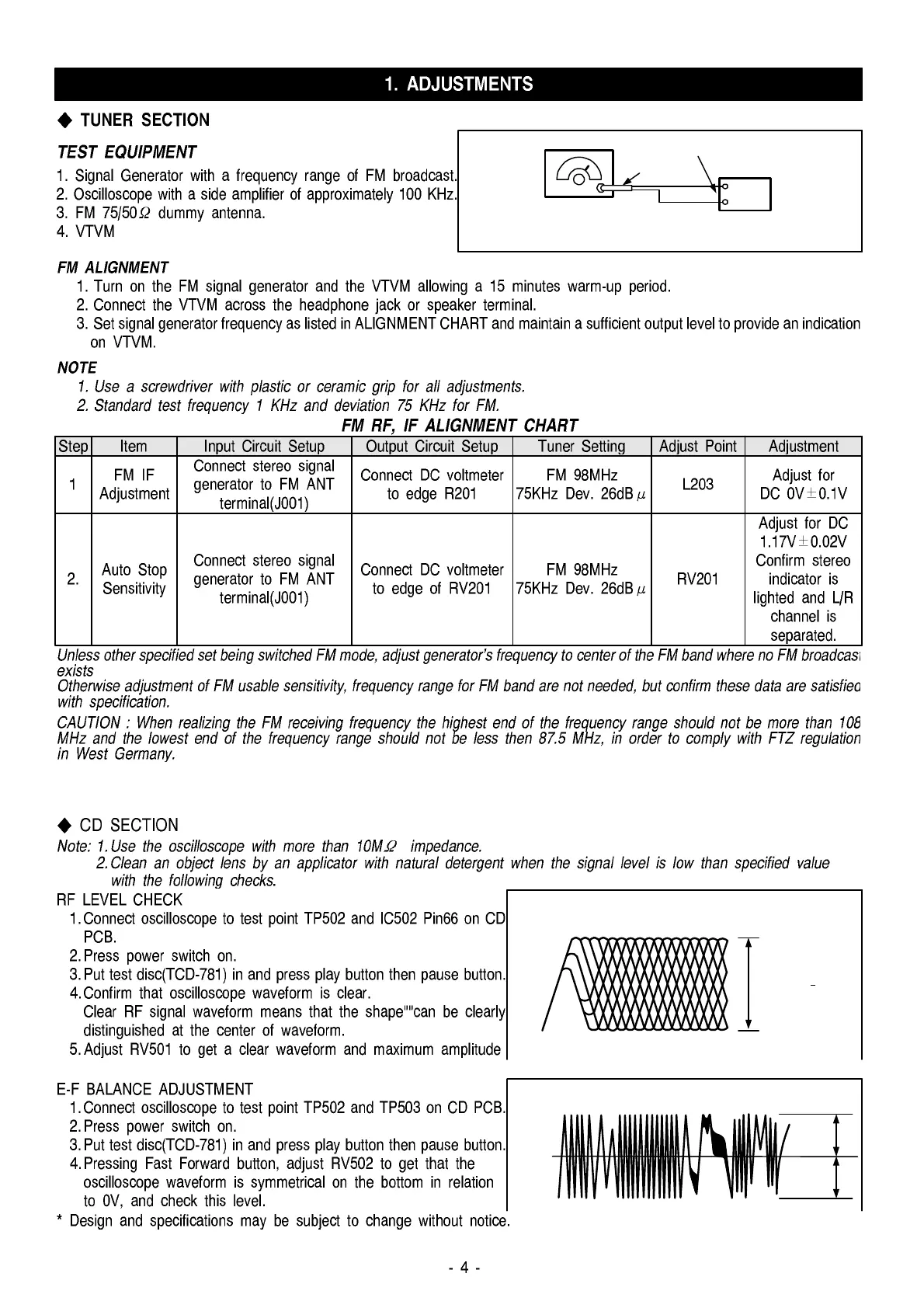

DAEWOO ELECTRONICS AMI-316L - Page 4

SET
FM Antenna
Terminal(75 ohm)
Carrier Frequency : 98MHz
Output Level : 26dBuV
Modulation:Audio 1kHZ, 75kHz Deviation
FM RF SSG
75 ohm Coaxal
Level : 1.2+0.3Vp-p
RF Signal Waveform
VOLT/DIV : 200mV
TIME/DIV : 50ns
Traverse Waveform
A
B
0V
