13

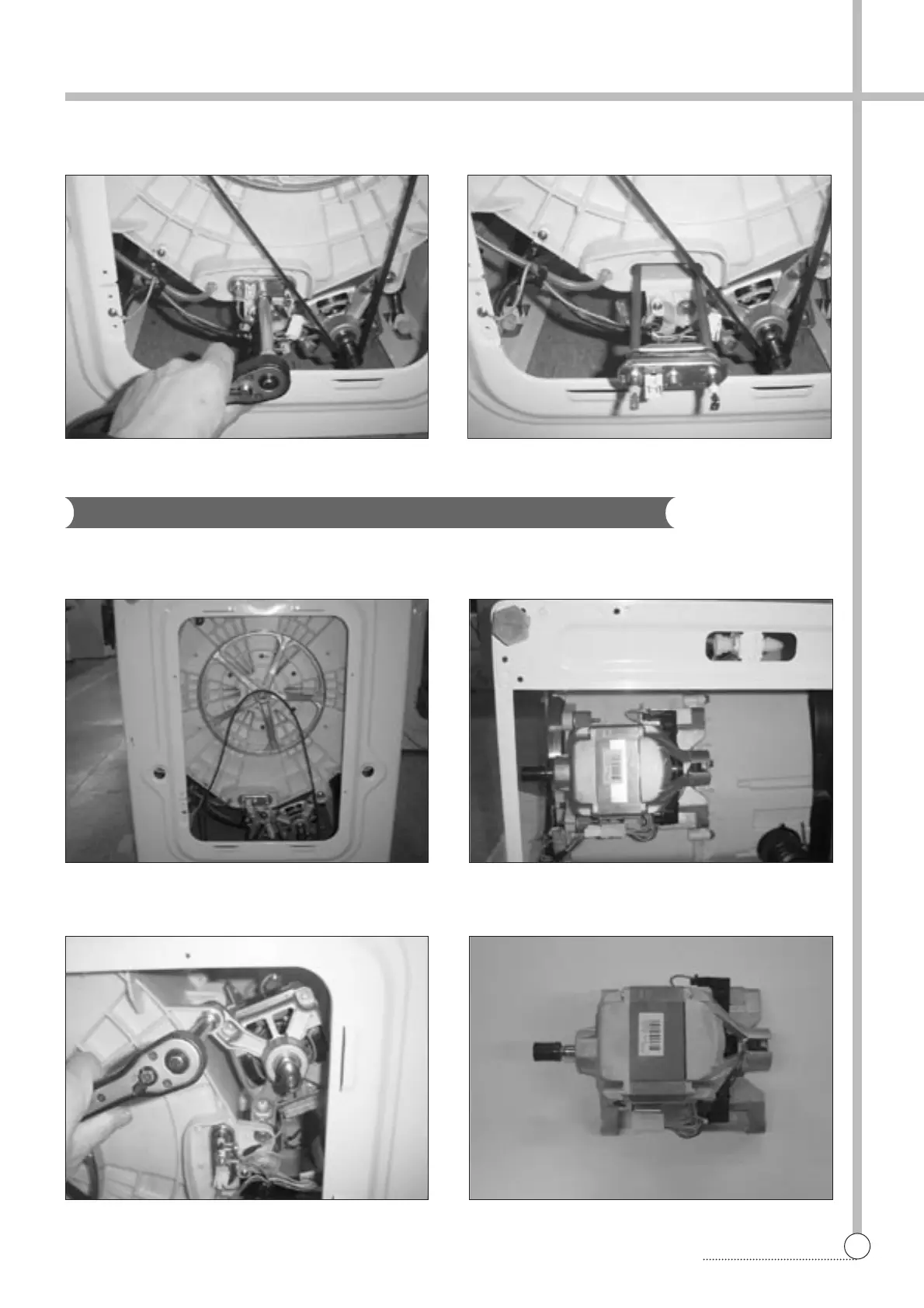

DIRECTION FOR DISASSEMBLY
3) Remove the nut by using a box wrench, and
remove the earth terminal.
4) Loosen the nut by using a box wrench, and pull out
the heater.
UNIVERSAL MOTOR
1) Remove the belt from the pulley. 2) Lay the right side of the washer on the floor,
and remove the connector.
3) Remove two bolts and two nuts mounting the motor
by using a box wrench.
4) Remove the motor from the tub.
To Next Page
