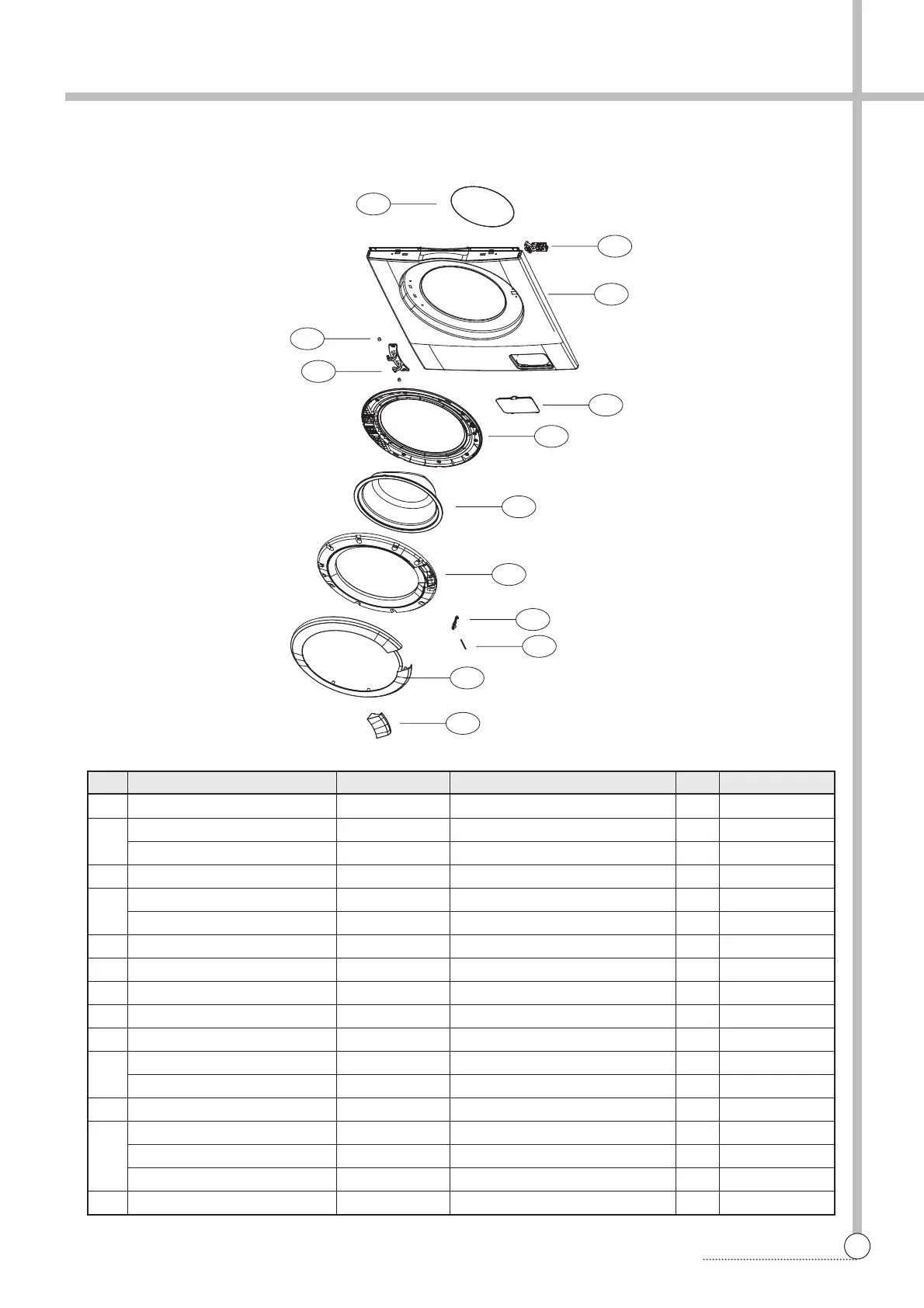

EXPLODE VIEW AND PARTS LIST
C01 CABINET F - D-HT's/HD's 1
C02 SWITCH DOOR LOCK 3619047100 1
SCREW TAPPING 7122401208 T2S TR4*12 SUS 2
C03 COVER PUMP 3611433400 ABS, D-H'S 1
C04 FRAME DOOR I 36122WD600 PP, D-H'S 1
SCREW TAPPING 7115402008 T1S FLT4*20 SUS 13
C05 DOOR GLASS 361A11070T GLASS PI300 M,F 1
C06 FRAME DOOR O 36122WD700 ABS, D-H'S 1
C07 DECO FRAME DOOR 36116DWK00 ABS, D-H'S 1
C08 HANDLE DOOR 3612614700 ABS, D-H'S 1
C09 HOOK DOOR 3613101900 ZNDC, D-H'S 1
C10 PIN HANDLE 3618200210 SUS304, D3, L53 1
SPRING HOOK 3615119600 SUS D1.4 1
C11 HINGE DOOR 3612904700 ALDC, D-H'S 1
C12 CAP HINGE DOOR 3610916500 POM 1
SCREW TAPPING 3616030000 F/T BOLT(SE)5*12 SUS 2
NUT HEX 7S627W50X1 2
C13 CLAMP DOOR AS 3611204810 HSW3, D=1.4 GS 1
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
■ CABINET FRONT AS
